Injector - Fuel: Installation: 2.7L
Courtesy of CHRYSLER LLC
- Lightly lubricate the fuel injector O-rings with a couple drops of clean engine oil.
- Install fuel injectors.
- Install retaining clips on fuel injectors.
- Push injectors into fuel injector rail until clips are in the correct position.
Courtesy of CHRYSLER LLC

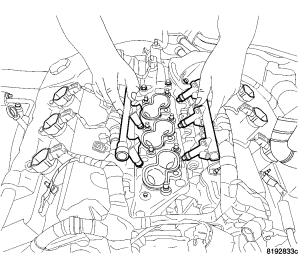

- Position fuel rail over cylinder head, and push rail into place. Tighten fuel rail mounting bolts to 11 N.m (100 in. lbs.).
- Connect fuel supply tube quick connect fittings at the rear of intake manifold. Refer to FITTING-QUICK CONNECT .
- Connect electrical connectors to fuel injectors.
- Install intake manifold.
Refer to INSTALLATION
.
Refer to INSTALLATION
.
Refer to INSTALLATION
.
- Connect negative cable to battery.
