DTC 1453-00: Recirculated Air Switchover Valve Control Circuit: Notes

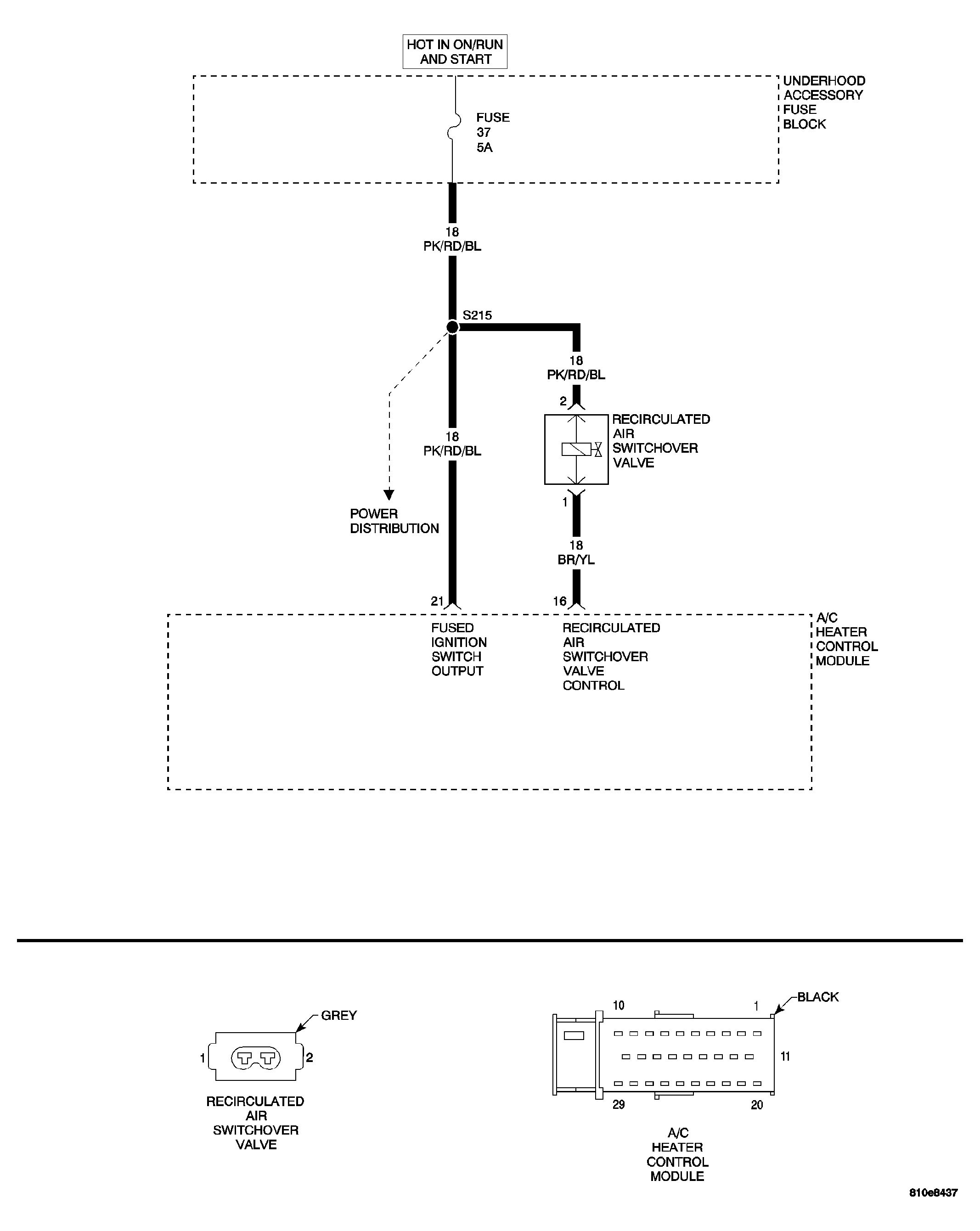

Fig 1: Recirculated Air Switchover Valve Circuit Schematic

Courtesy of CHRYSLER LLC

1. When Monitored: With the ignition on.
2. Set Condition: The A/C Heater Control Module detects an abnormal condition on the Recirculated Air Switchover Valve Control circuit.

For a complete HVAC Circuit Diagram, see SCHEMATICS AND DIAGRAMS .
