Manufacture Plate: Description

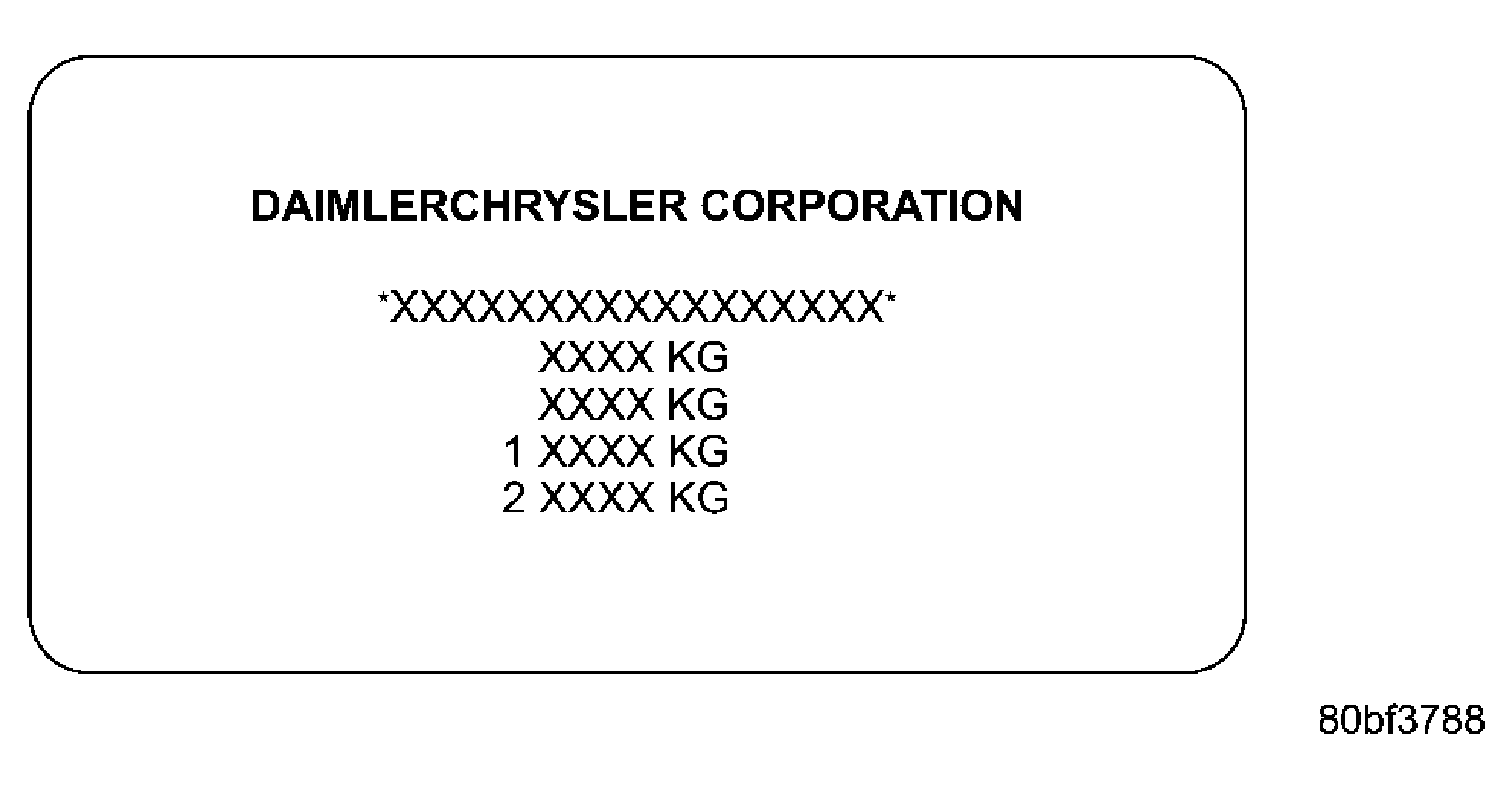

Fig 1: Manufacturer Plate

Courtesy of DAIMLERCHRYSLER CORP.

The Manufacturer Plate is located in the engine compartment on the passenger side rear corner of the hood. The plate contains five lines of information:

1. Vehicle Identification Number (VIN)
2. Gross Vehicle Mass (GVM)
3. Gross Train Mass (GTM)
4. Gross Front Axle Rating (GFAR)
5. Gross Rear Axle Rating (GRAR)
