Installation - 2.4L
- Place starter in position on vehicle.
- Install the lower bolts to hold starter to transaxle bellhousing.

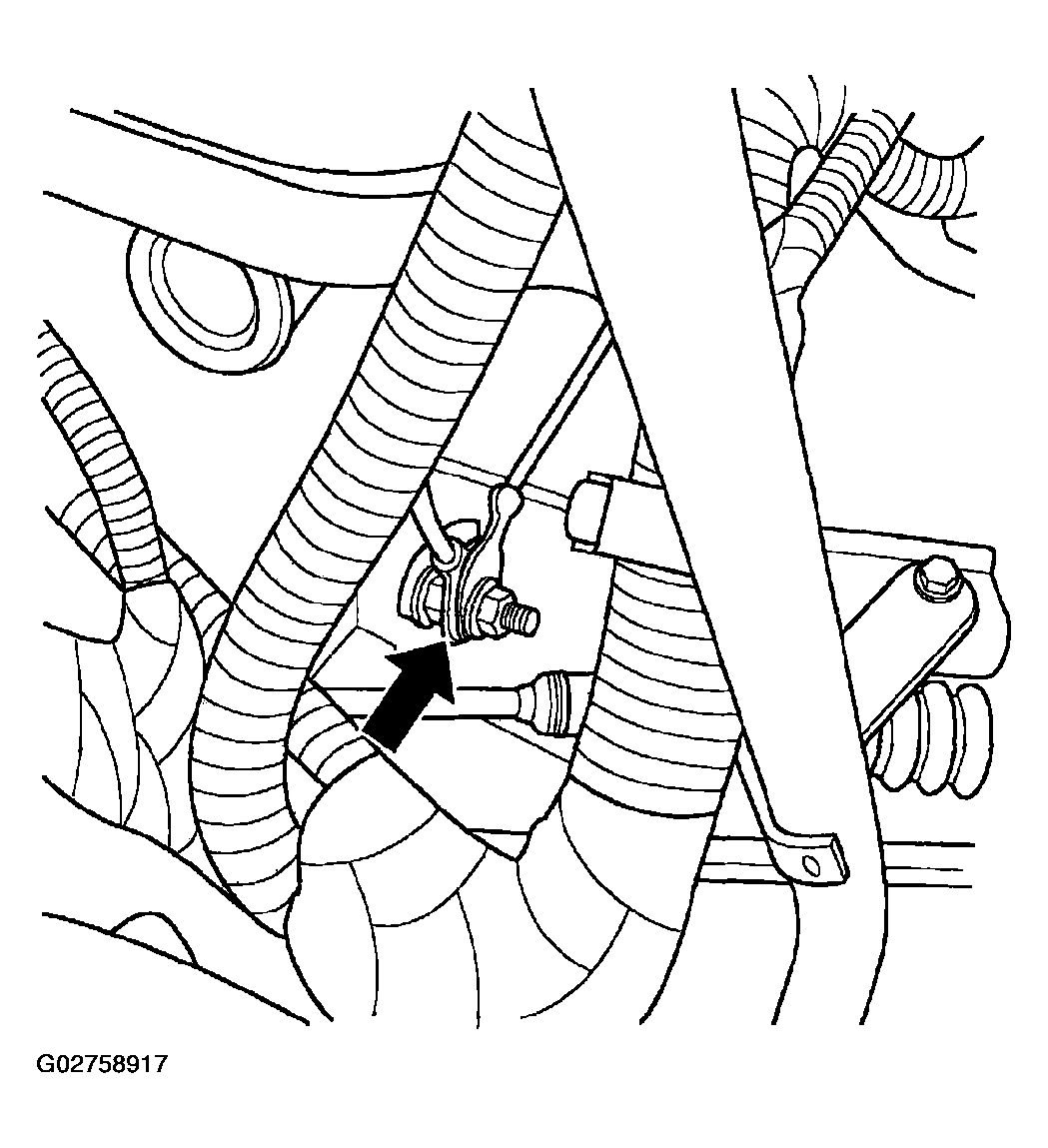

- Install the upper bolt and ground wire (Figure).

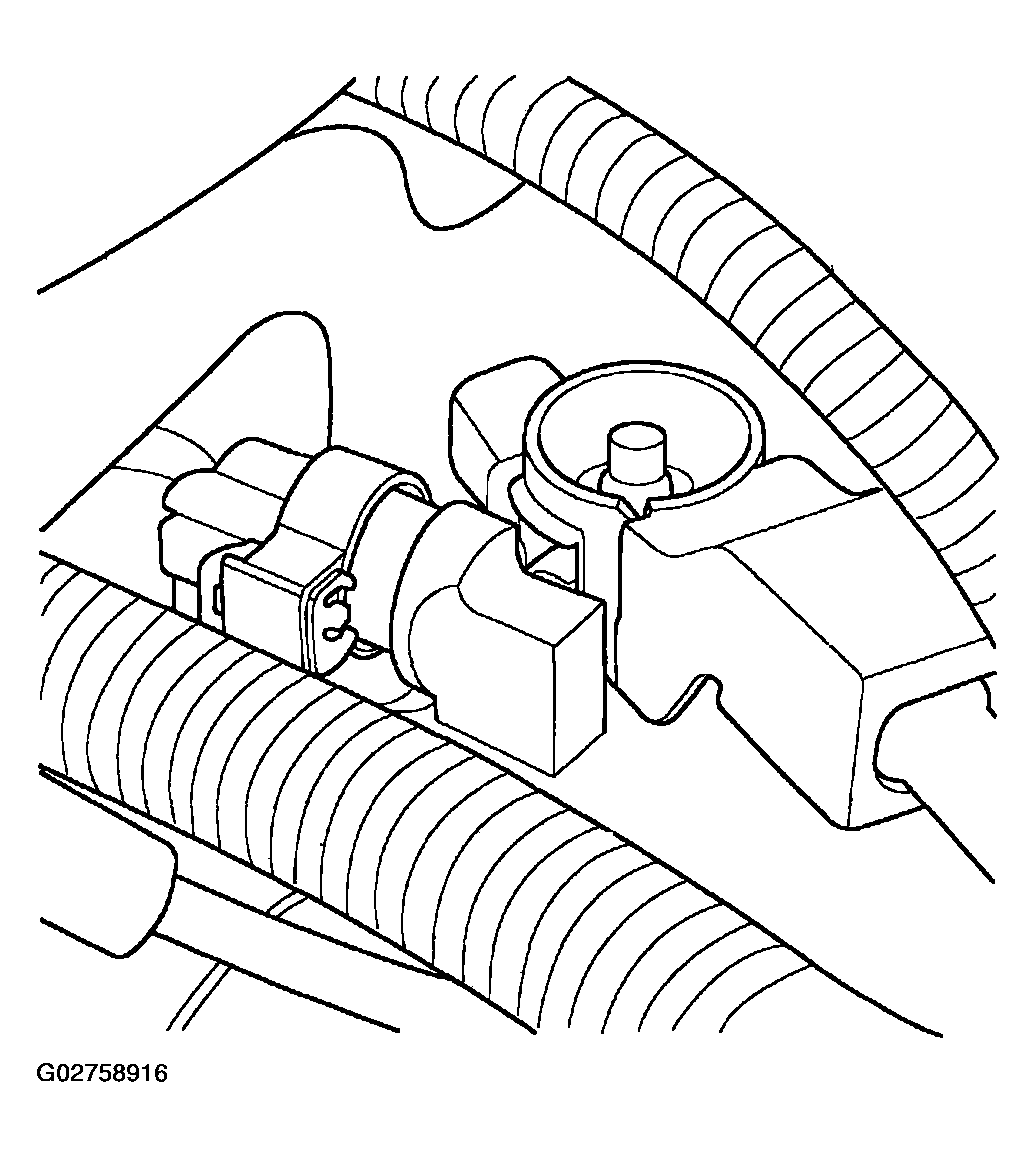

- Place solenoid and B+ wires in position on starter terminals (Figure).
- Install nut to hold B+ wire to terminal.
- Connect solenoid wire connector onto terminal.
- Connect battery negative cable.
- Verify starter operation.
