Steering Knuckle Replacement

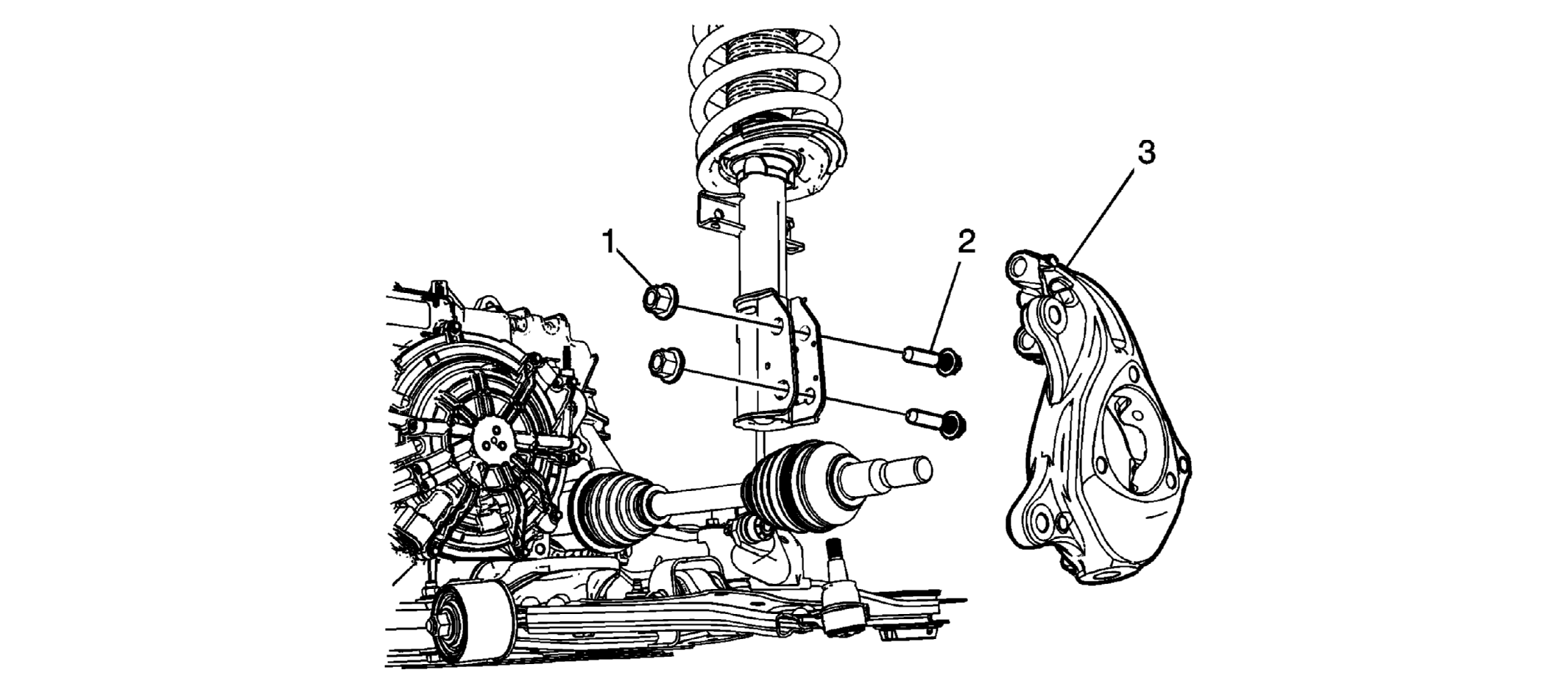

Fig 1: Steering Knuckle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Wheel Bearing and Hub Replacement Separate Steering Linkage Outer Tie Rod at Steering Knuckle - Steering Linkage Outer Tie Rod Replacement Separate Front Lower Control Arm at Steering Knuckle - Lower Control Arm Replacement
1	Steering Knuckle Nut CAUTION: Refer to Fastener Caution . Tighten 195 N.m (144 lb ft)
2	Steering Knuckle Bolt
3	Steering Knuckle
