Stabilizer Shaft Insulator Replacement

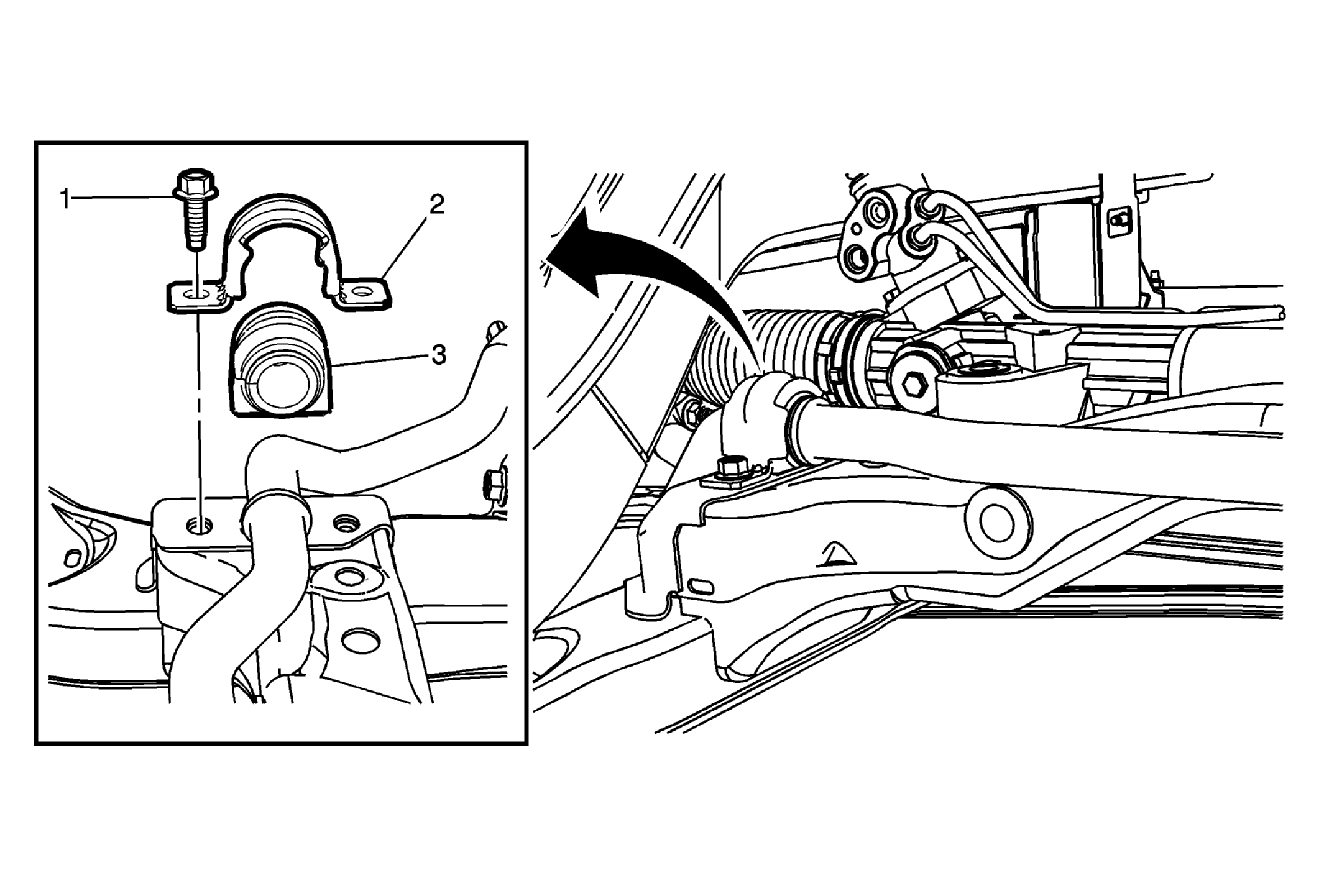

Fig 1: Stabilizer Shaft Insulator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Raise and support the vehicle. Lifting and Jacking the Vehicle
1	Front Stabilizer Shaft Bolt CAUTION: Refer to Fastener Caution . Tighten  50 N.m (37 lb ft)
2	Front Stabilizer Shaft Insulator Clamp
3	Front Stabilizer Shaft Insulator
