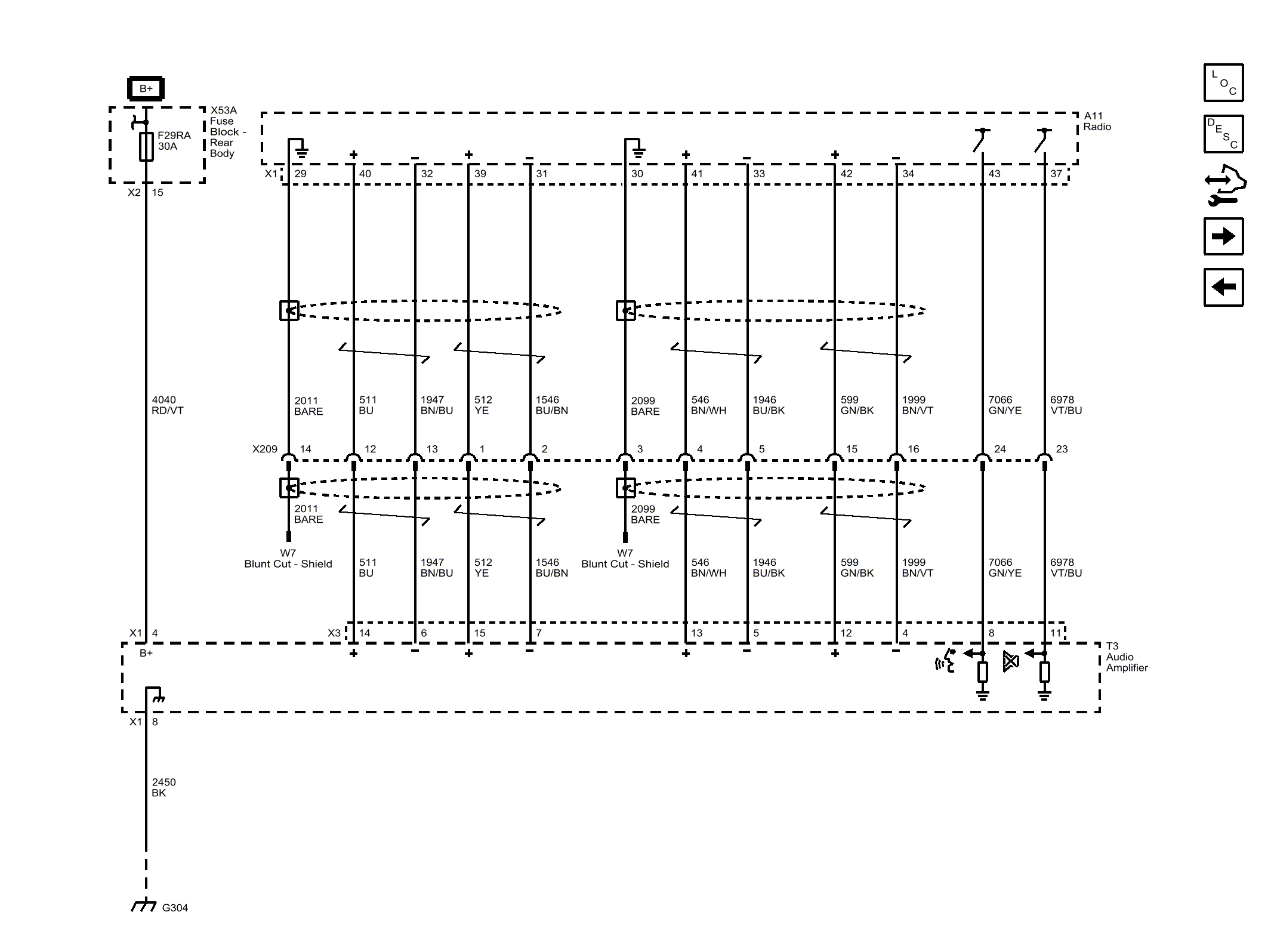

Home >> Chevrolet >> 2017 >> SS Standard Trans >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Cellular System, Entertainment System, And Navigation System >> Schematic Wiring Diagrams >> Radio/Navigation System Wiring Schematics >> Amplifier (UQA)
