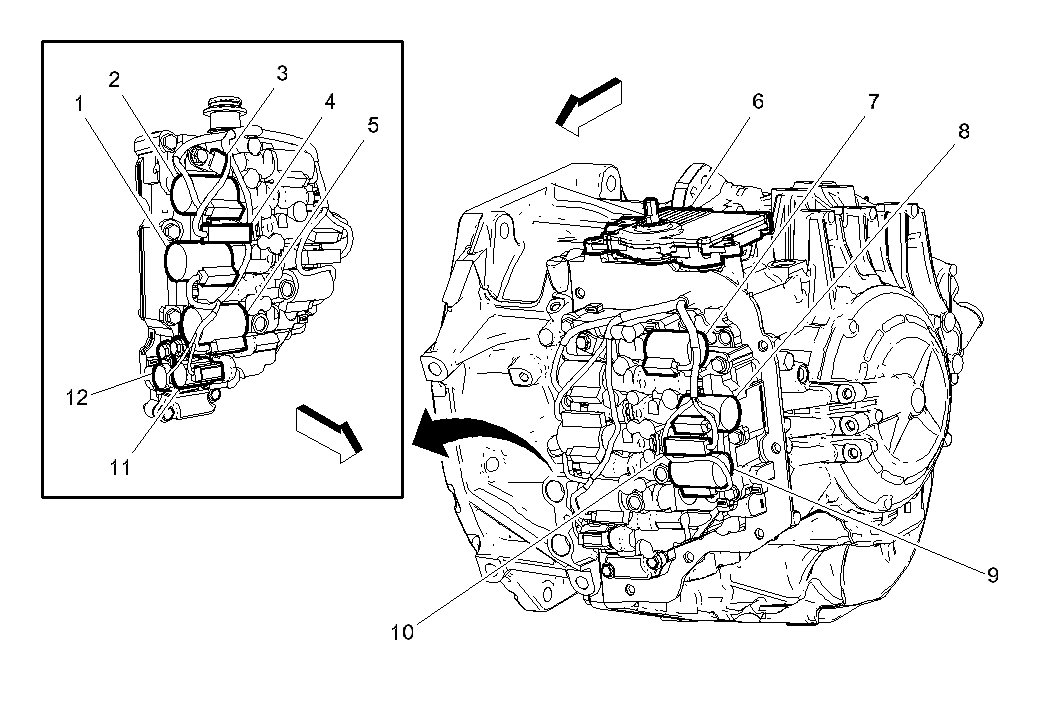

Automatic Transmission Components (M7W)
Automatic Transmission Components (M7W)
| Items |
|---|
| 1: Q27B Pressure Control Solenoid Valve 2 |
| 2: Q27A Pressure Control Solenoid Valve 1 |
| 3: B13 Transmission Fluid Temperature Sensor (MHH or MNH) |
| 4: B14A Transmission Output Shaft Speed Sensor (MHH or MNH) |
| 5: Q8 Control Solenoid Valve Assembly Q8 Control Solenoid Valve Assembly X1 (M7W)Q8 Control Solenoid Valve Assembly X1 (MHH or MNH)Q8 Control Solenoid Valve Assembly X2 (M7W)Q8 Control Solenoid Valve Assembly X2 (MHH or MNH)Q8 Control Solenoid Valve Assembly X3 (M7W)Q8 Control Solenoid Valve Assembly X3 (MHH or MNH)Q8 Control Solenoid Valve Assembly X4 (M7W)Q8 Control Solenoid Valve Assembly X4 (MHH or MNH) |
| 6: K71 Transmission Control Module (MH7 or MNH) |
| 7: Q39A Torque Converter Clutch Pressure Control Solenoid Valve |
| 8: Q27C Pressure Control Solenoid Valve 3 |
| 9: Q27D Pressure Control Solenoid Valve 4 |
| 10: B14C Transmission Input Shaft Speed Sensor (MHH or MNH) |
| 11: Q32B Shift Solenoid Valve 2 |
| 12: Q32A Shift Solenoid Valve 1 |
