Front Side Door Window Regulator Replacement

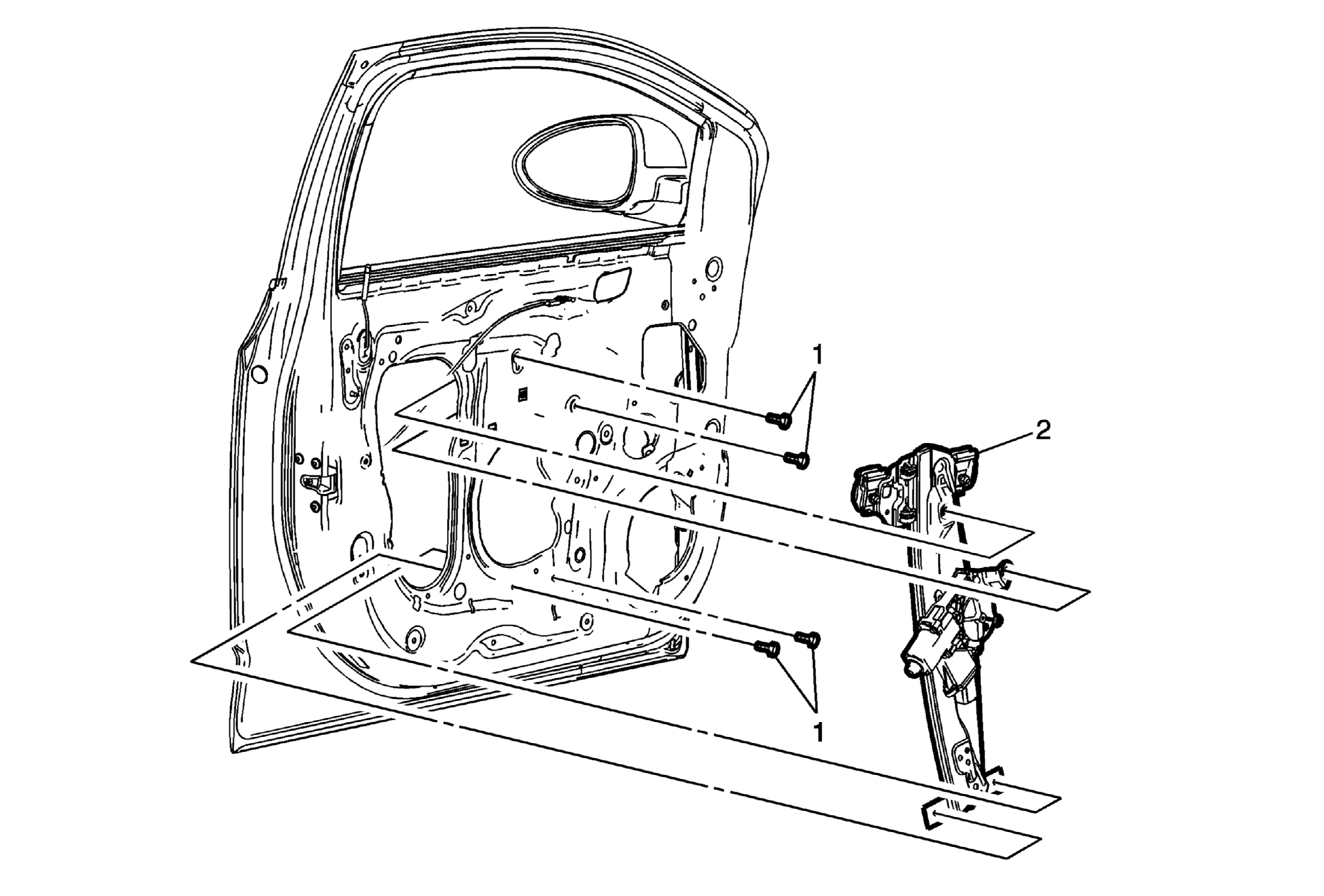

Fig 1: Front Side Door Window Regulator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . Preliminary Procedure Remove the front side door window from the guide. Do Not remove the window from the vehicle, raise the window to the fully up position, tape in place. Refer to Front Side Door Window Replacement .
1	Front Side Door Window Regulator Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Procedure Remove the front side door water deflector. Loosen the window guide nuts, Do Not remove the nuts from the guide. Disconnect the electric connector from the regulator motor. Tighten 11 N.m (97 lb in)
2	Front Side Door Window Regulator Procedure Transfer the front side door window regulator motor. Refer to Front Side Door Window Regulator Motor Replacement . Inspect the door window for proper operation before installing the door trim panel.

Callout

Component Name

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

Preliminary Procedure Remove the front side door window from the guide. Do Not remove the window from the vehicle, raise the window to the fully up position, tape in place. Refer to Front Side Door Window Replacement .

Front Side Door Window Regulator Screw (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Procedure

Remove the front side door water deflector.
Loosen the window guide nuts, Do Not remove the nuts from the guide.
Disconnect the electric connector from the regulator motor.

Tighten
11 N.m (97 lb in)

Front Side Door Window Regulator

Procedure

Transfer the front side door window regulator motor. Refer to Front Side Door Window Regulator Motor Replacement .
Inspect the door window for proper operation before installing the door trim panel.
