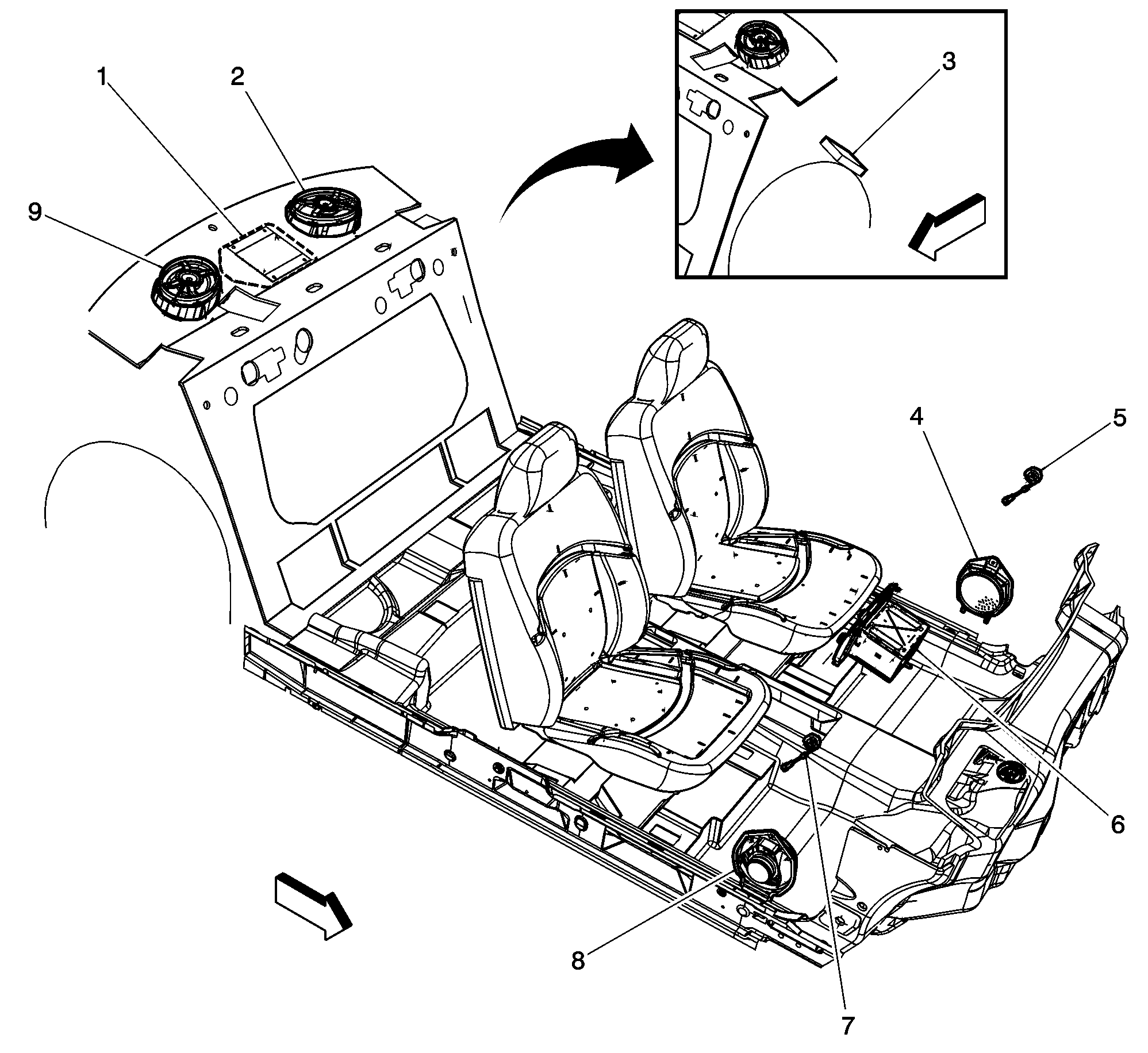

Radio and Speaker Components
Radio and Speaker Components
| Component Name |
Callout |
| Audio Amplifier (UQ3) |
1 |
| Speaker- Left Rear |
2 |
| Digital Radio Receiver (U2K) |
3 |
| Speaker- Left Front |
4 |
| Speaker- Left Front Tweeter (UQ3) |
5 |
| Radio |
6 |
| Speaker- Right Front Tweeter (UQ3) |
7 |
| Speaker- Right Front |
8 |
| Speaker- Right Rear |
9 |
Courtesy of GENERAL MOTORS COMPANY
