Left and Rear Side of Engine Components (LFX)

Left and Rear Side of Engine Components (LFX)

Items
1:  B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor (L99, LS3 or LSA)B37B Engine Oil Pressure Sensor (LFX)
2:  T8B Ignition Coil 2 T8B Ignition Coil 2 (L99, LS3 or LSA)T8B Ignition Coil 2 (LFX)
3:  T8D Ignition Coil 4 T8D Ignition Coil 4 (L99, LS3 or LSA)T8D Ignition Coil 4 (LFX)
4:  T8F Ignition Coil 6 T8F Ignition Coil 6 (L99, LS3 or LSA)T8F Ignition Coil 6 (LFX)
5:  B52C Heated Oxygen Sensor - Bank 1 Sensor 1 B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (L99, LS3 or LSA)B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LFX)
6:  G18 High Pressure Fuel Pump (LFX) G18 High Pressure Fuel Pump (LFX)
7:  B52D Heated Oxygen Sensor - Bank 1 Sensor 2 B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (L99, LS3 or LSA)B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LFX)
8:  B52F Heated Oxygen Sensor - Bank 2 Sensor 2 B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (L99, LS3 or LSA)B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LFX with MV5)B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LFX with MYB)
9:  M64 Starter Motor M64 Starter Motor X1M64 Starter Motor X2
10:  B52E Heated Oxygen Sensor - Bank 2 Sensor 1 B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (L99, LS3 or LSA)B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LFX)
11:  B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (L99, LS3 or LSA)B34 Engine Coolant Temperature Sensor (LFX)B34 Engine Oil Level Switch (LFX)
12:  B68B Knock Sensor 2 B68B Knock Sensor 2
13:  Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch

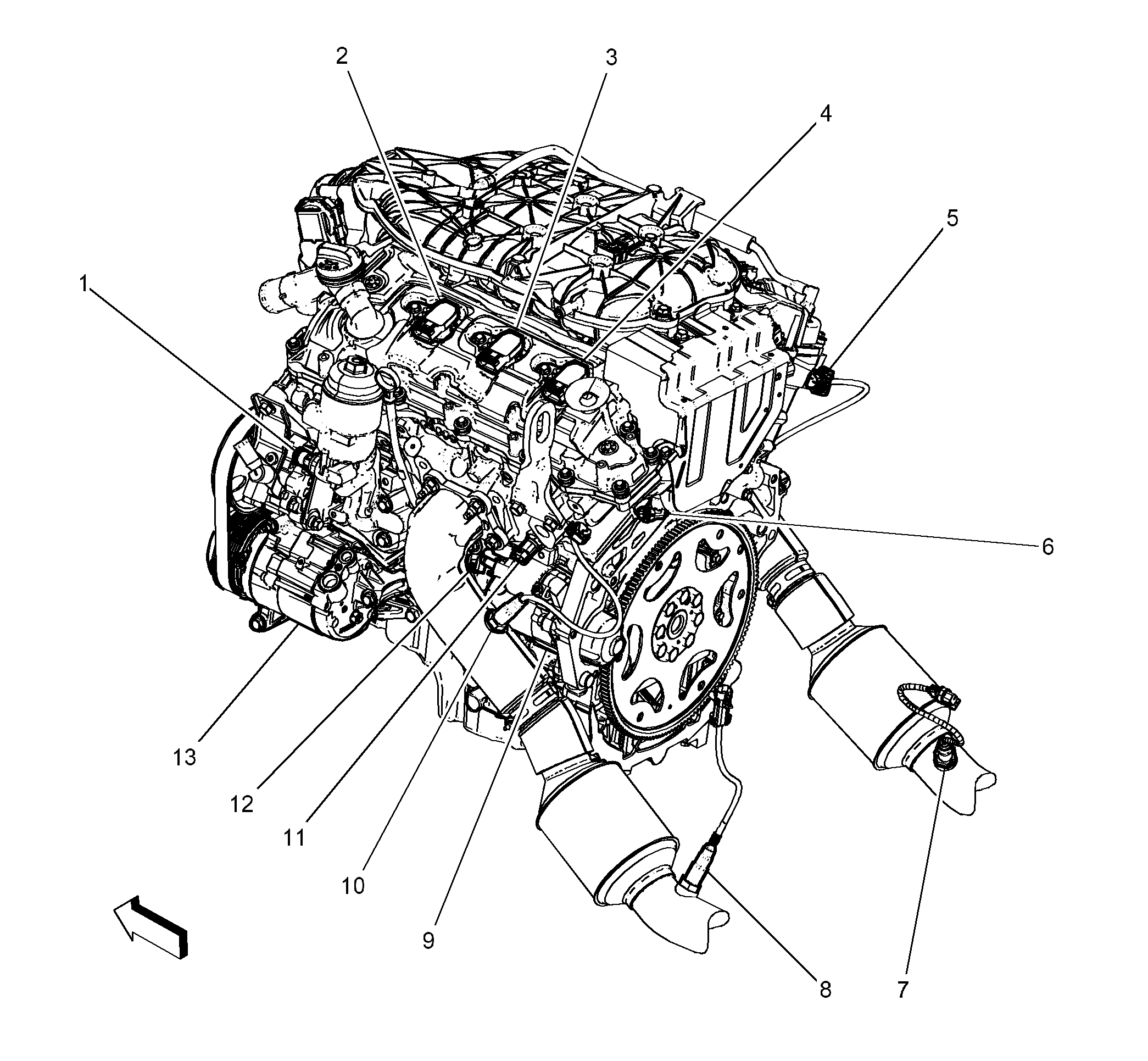

Fig 1: Left and Rear Side of Engine Components (LFX)

Courtesy of GENERAL MOTORS COMPANY
