Starter Shield Replacement (LS3,L99)

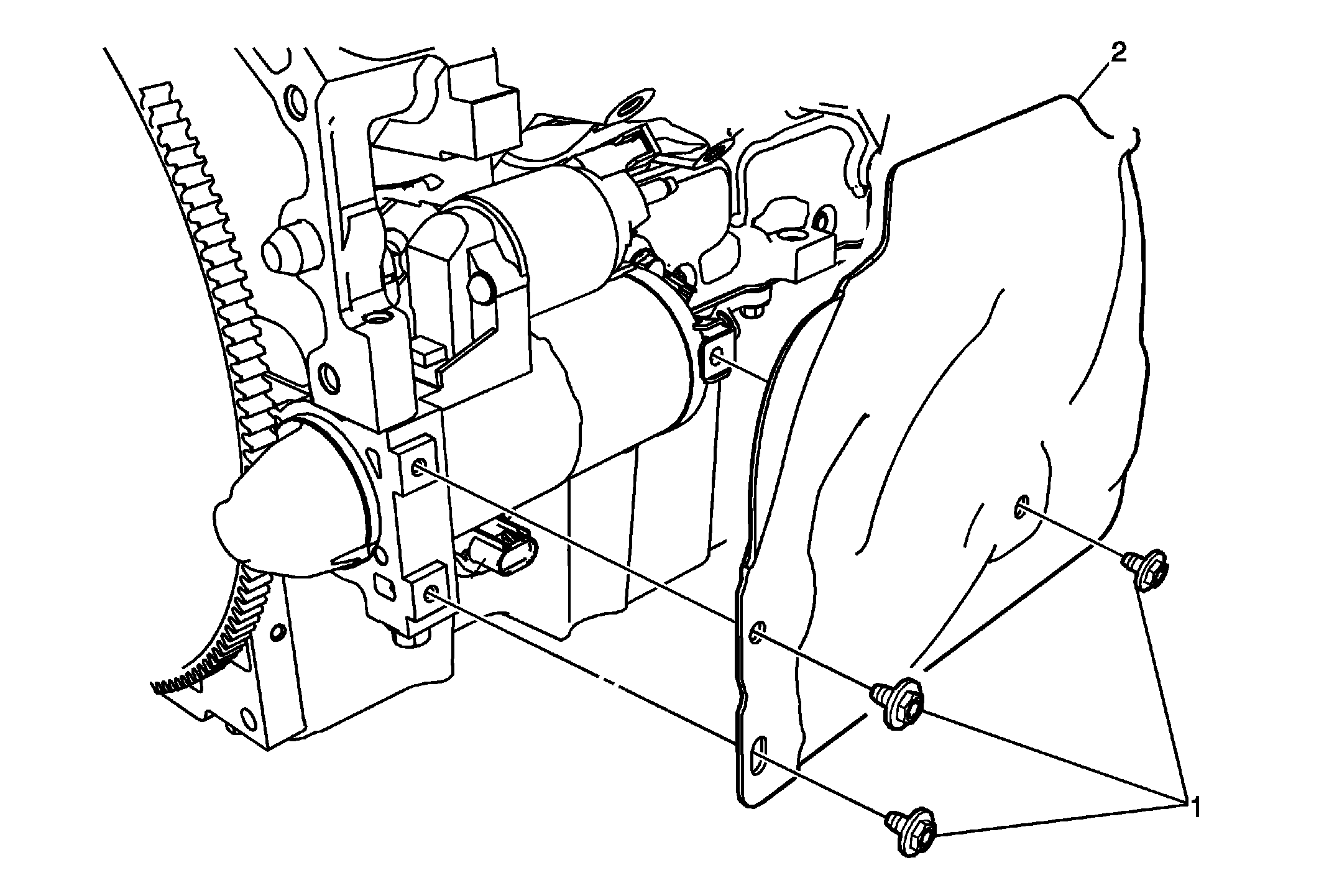

Fig 1: Starter Shield And Bolts (LS3/L99)

Courtesy of GENERAL MOTORS COMPANY

Starter Shield Replacement (LS3,L99)

Callout	Component Name
Preliminary Procedure  Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  5 N.m (44 lb in)
2	Starter Heat Shield
