Door Lock Switch Replacement - Passenger Front (Traverse)

WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

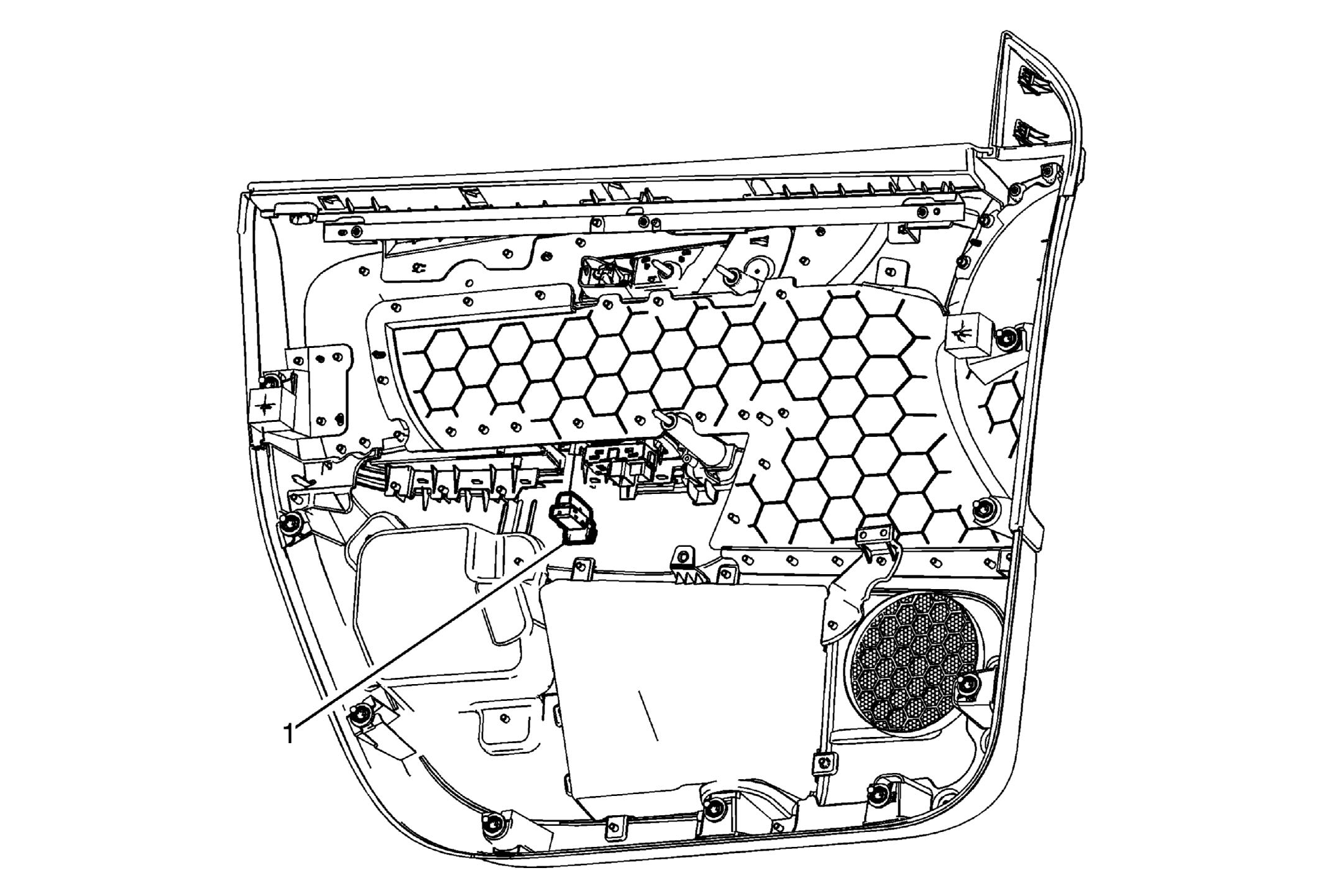

Fig 1: Door Lock Switch - Passenger Front (Traverse)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Panel Replacement - Right Side (Enclave) , Front Side Door Trim Panel Replacement - Right Side (Acadia or Traverse) .
1	Door Lock Switch Passenger Front Assembly Procedure Release tabs on switch to remove from front side door trim panel. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure
Remove the front side door trim. Refer to Front Side Door Trim Panel Replacement - Right Side (Enclave) , Front Side Door Trim Panel Replacement - Right Side (Acadia or Traverse) .

Door Lock Switch Passenger Front Assembly

Procedure

Release tabs on switch to remove from front side door trim panel.
Refer to Control Module References for programming and set up procedures.
