Seat Horizontal Motor - Passenger (AAQ or AG2)

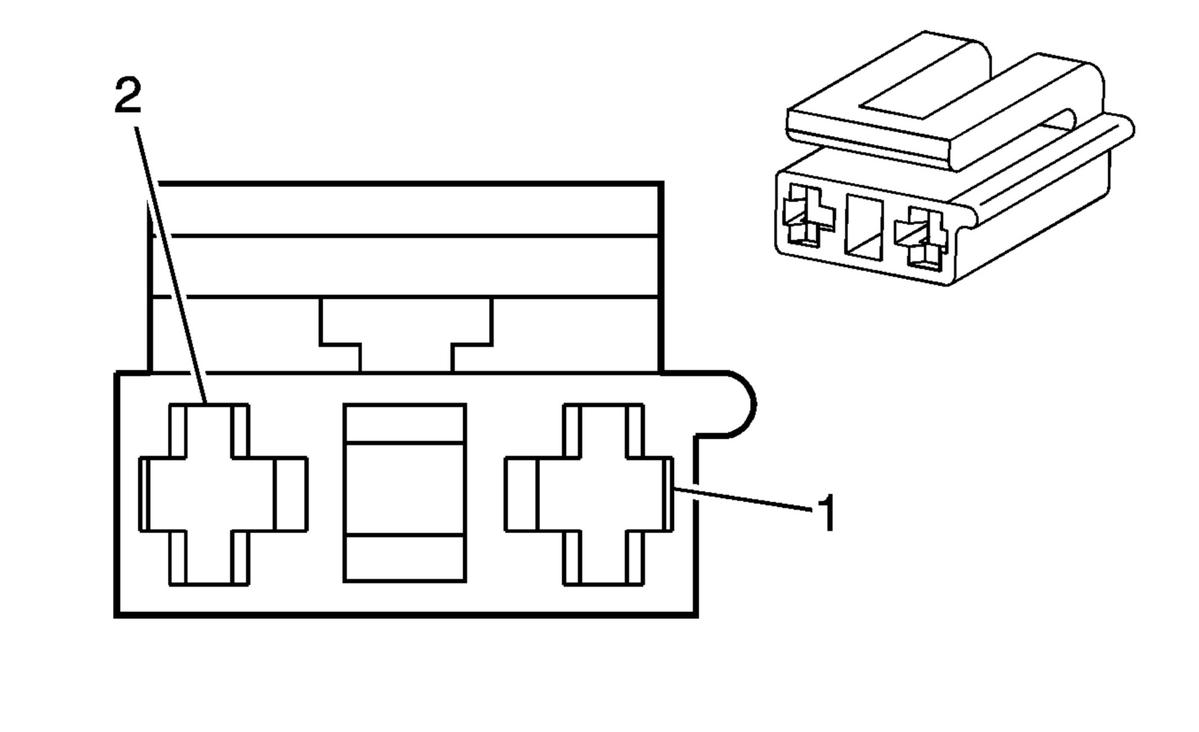

Fig 1: Seat Horizontal Motor - Passenger (AAQ or AG2) Connector End View
GM1862168Courtesy of GENERAL MOTORS CORP.
Seat Horizontal Motor - Passenger (AAQ or AG2)

Pin Wire Circuit Function
1 2 TN 296 Passenger Seat Horizontal Motor Forward Control
2 2 L-GN 290 Passenger Seat Horizontal Motor Rearward Control
Connector Part Information
  • OEM: 623346-1
  • Service: See Catalog
  • Description: 2-Way F (GY)
Terminal Part Information
  • Terminal/Tray: 4-965999-1/25
  • Core/Insulation Crimp: 4/A
  • Release Tool/Test Probe: 12093647/J-35616-4A (PU)
