Power Distribution Schematics

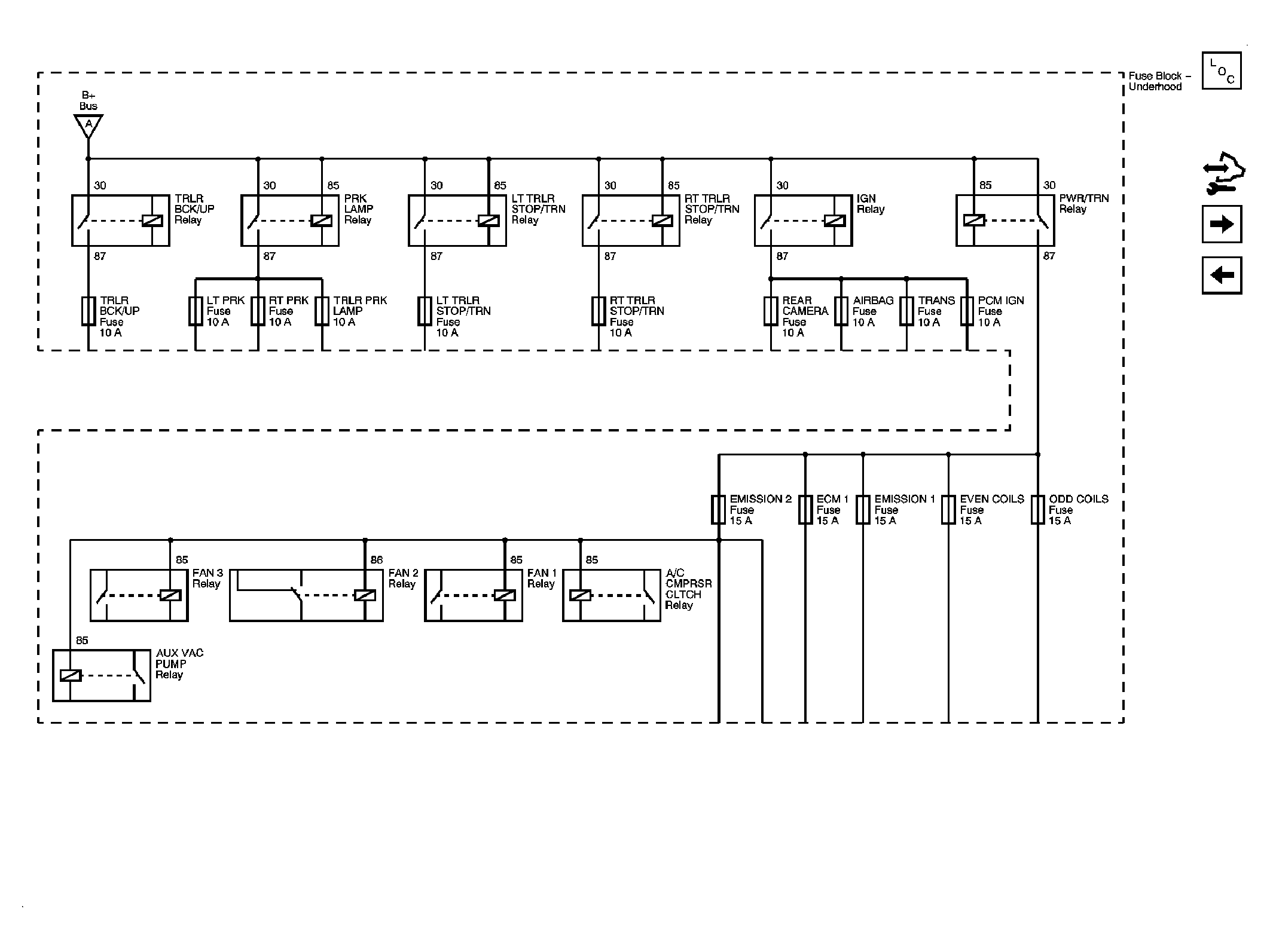

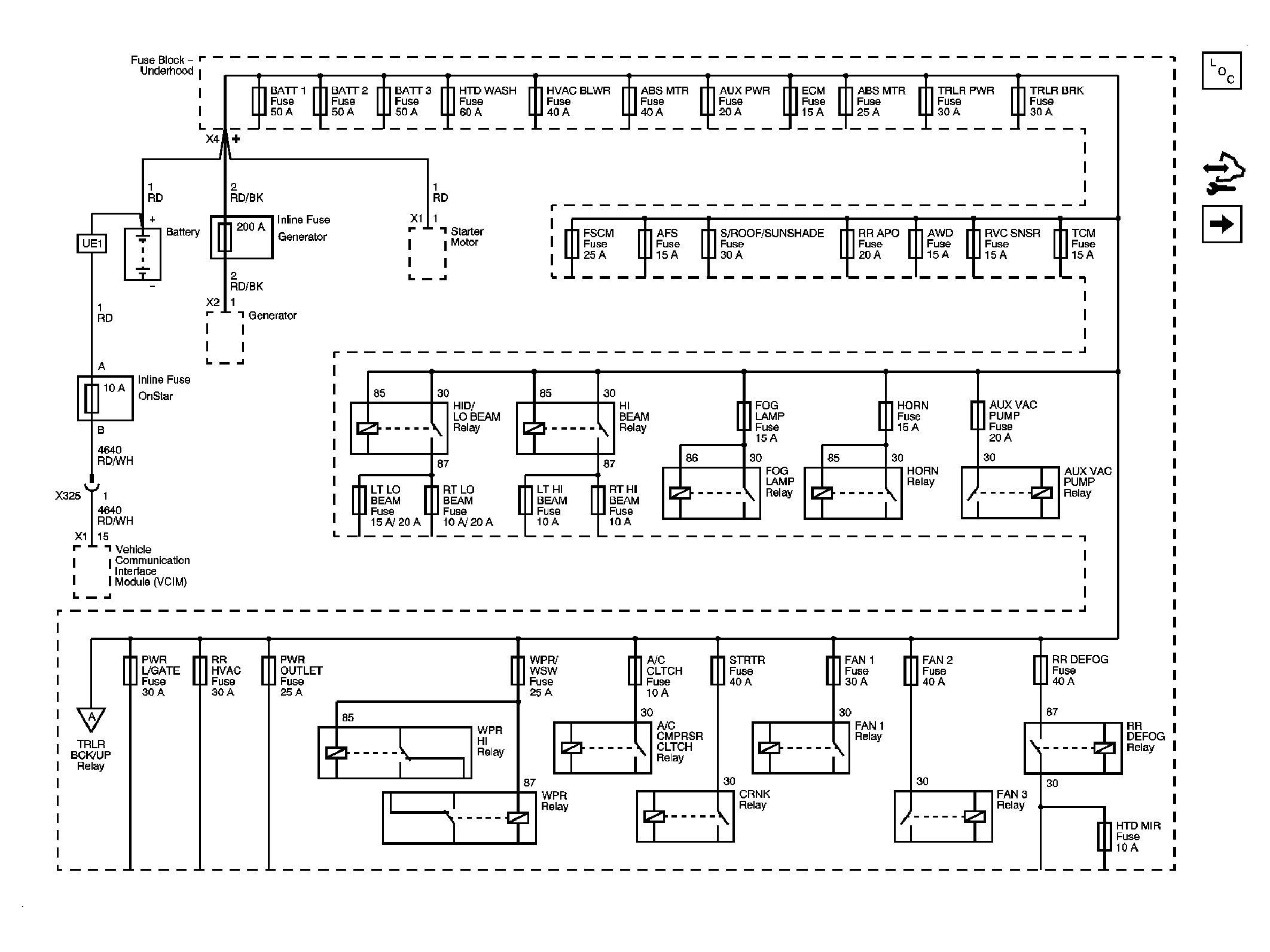

Fig 1: B+ Bus Circuit Schematic 1 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 2: B+ Bus Circuit Schematic 2 of 2

Courtesy of GENERAL MOTORS CORP.

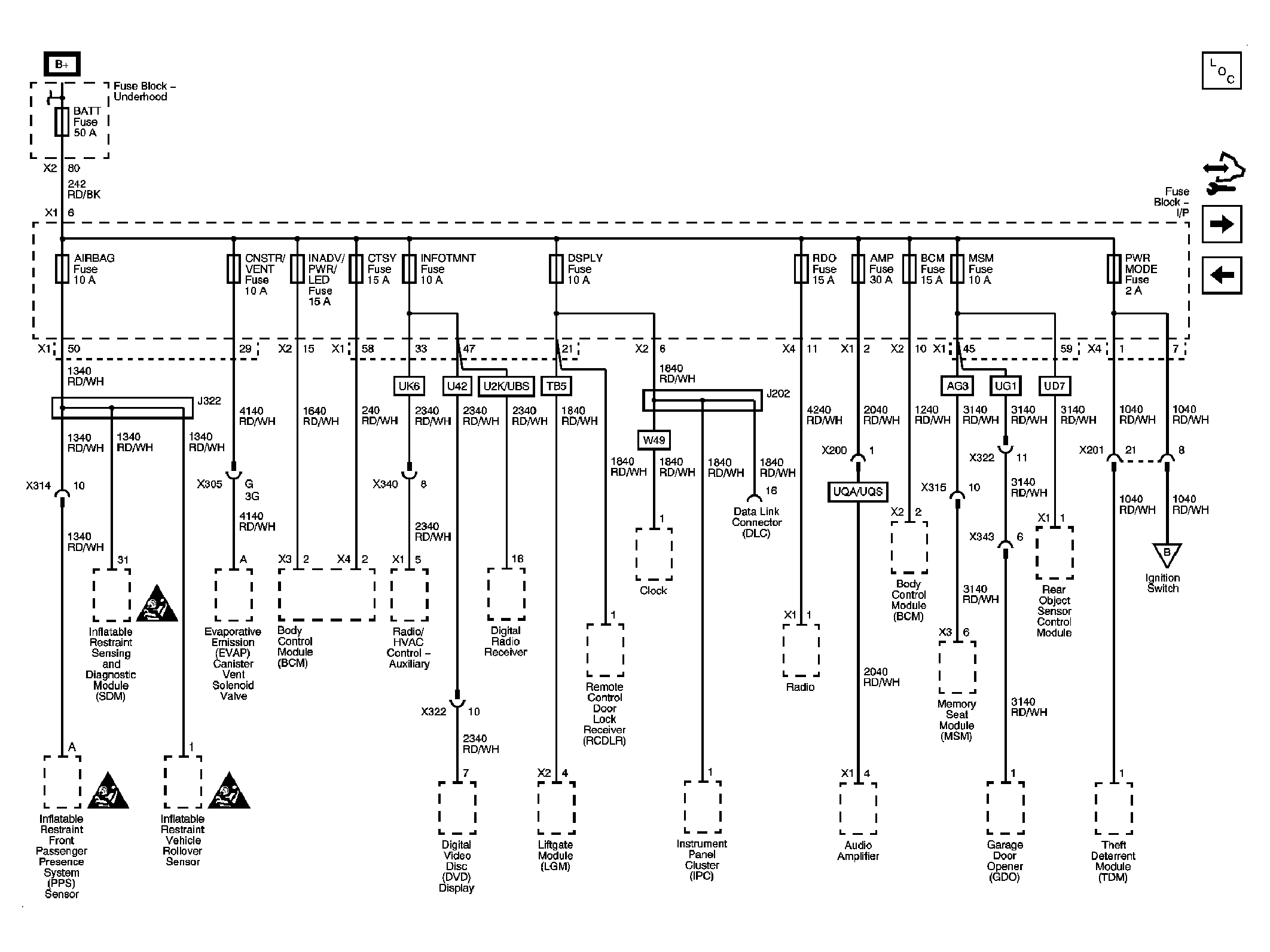

Fig 3: AIRBAG, AMP, BATT 1, BCM, CNSTR/VENT, CSTY, DISPLAY, INADV/PWR/LED, INFOTAINMENT, MSM, POWER MOD, and RADIO Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

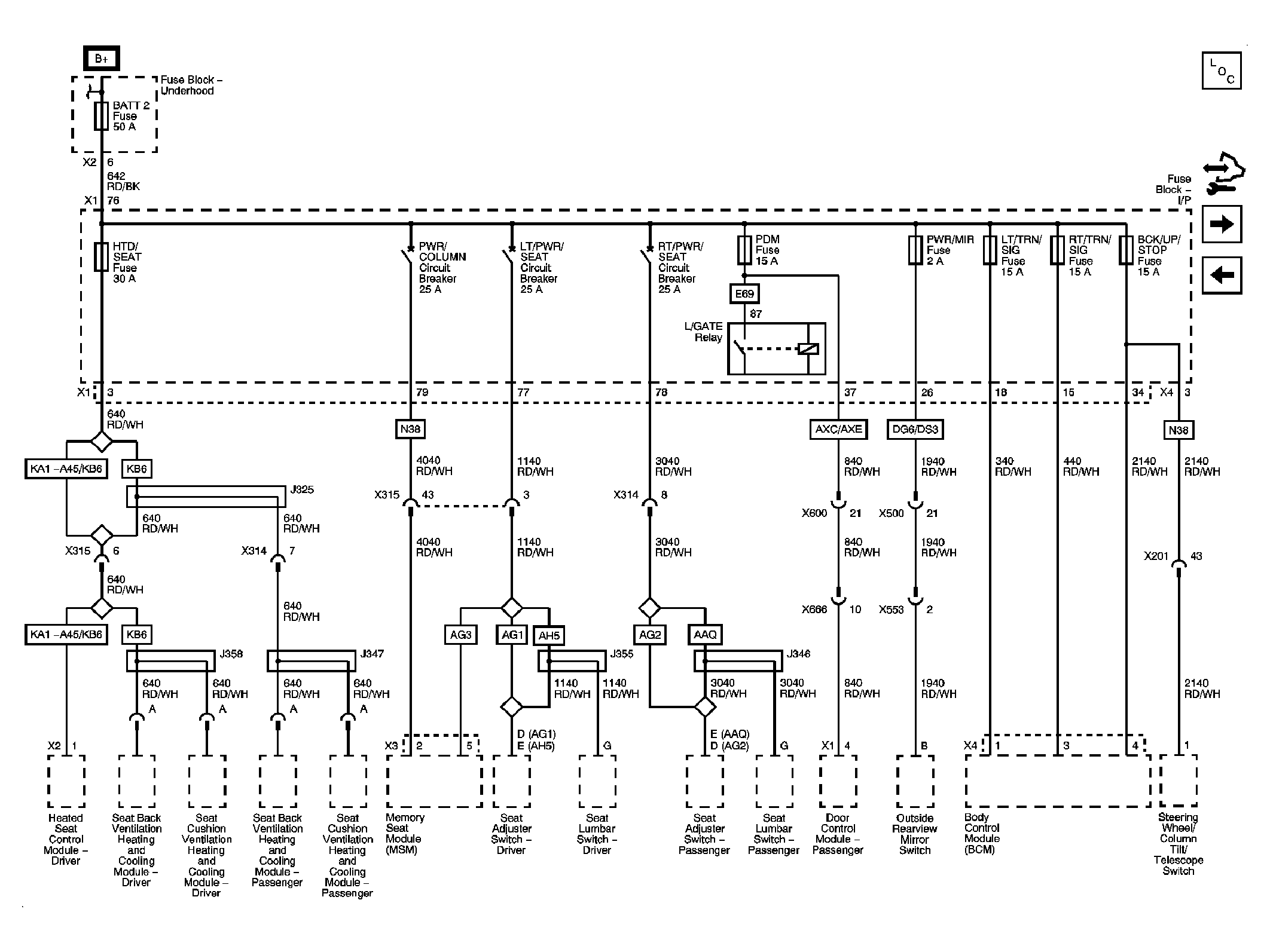

Fig 4: BATT 2, BCK/UP/STOP, HTD/SEAT, LT/TRN/SIG, PDM, PWR/MIRRORS, and RT/TRN/SIG Fuses, LT/PWR/SEAT, PWR/COLUMN, and RT/PWR/SEAT Circuit Breakers Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

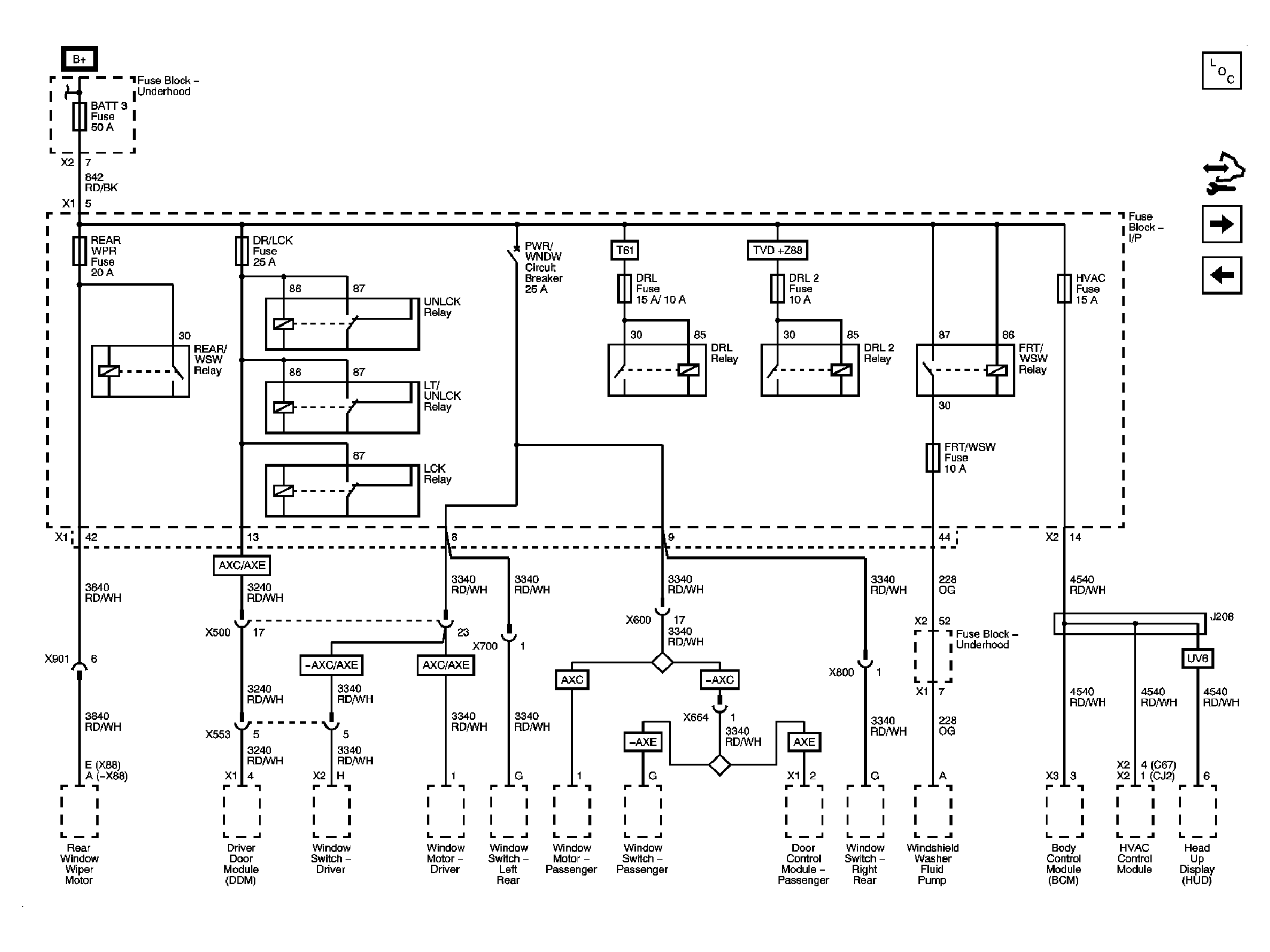

Fig 5: BATT 3, DRL, DRL 2, DR/LCK, FRT/WSW, HVAC, and REAR WIPER Fuses, PWR/WNDW Circuit Breaker Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

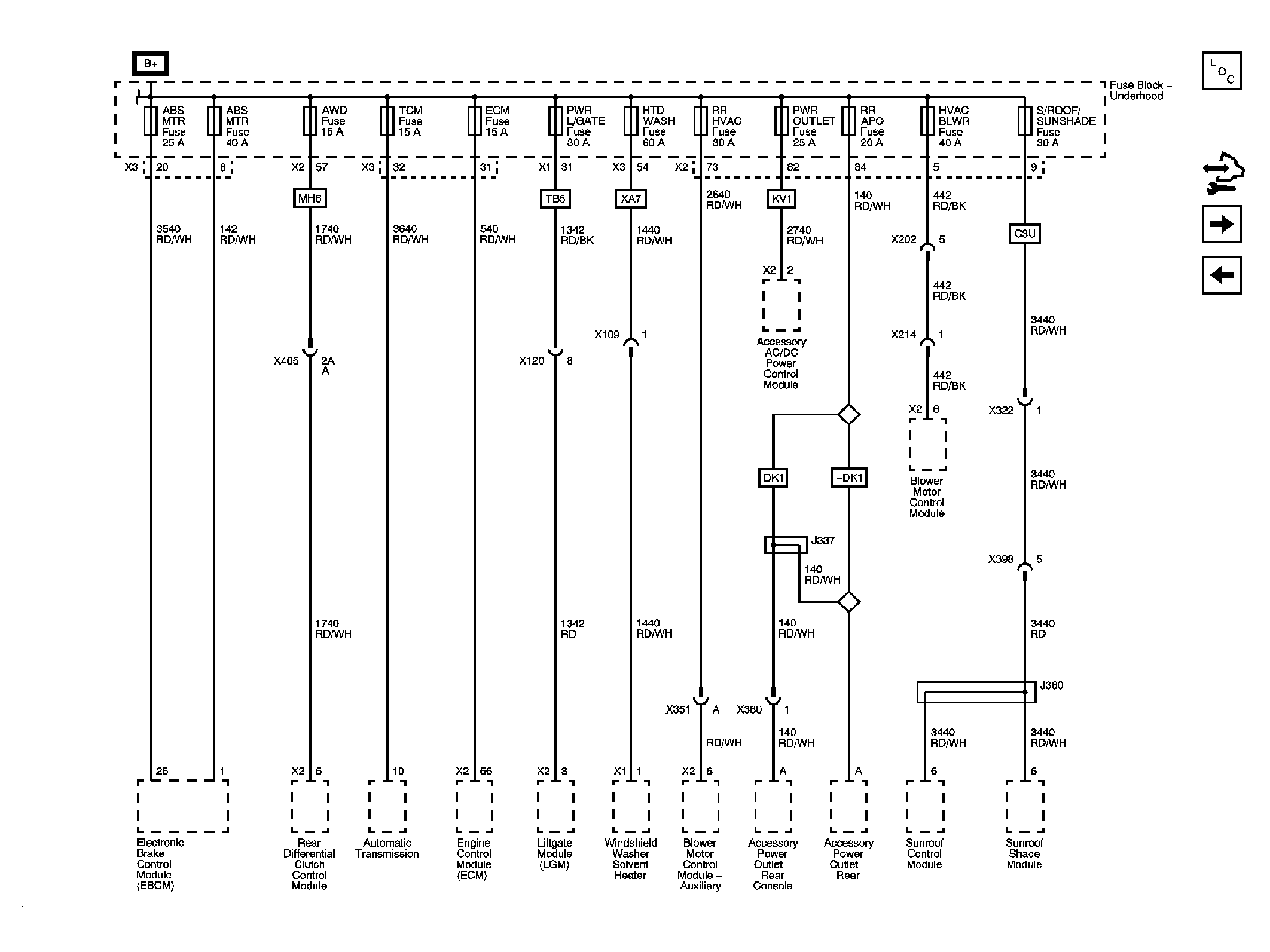

Fig 6: ABS MTR, ABS MTR, AWD, ECM, HTD WASH, HVAC BLWR, PWR L/GATE, PWR OUTLET, RR APO, RR HVAC, S/ROOF/SUNSHADE and TCM Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

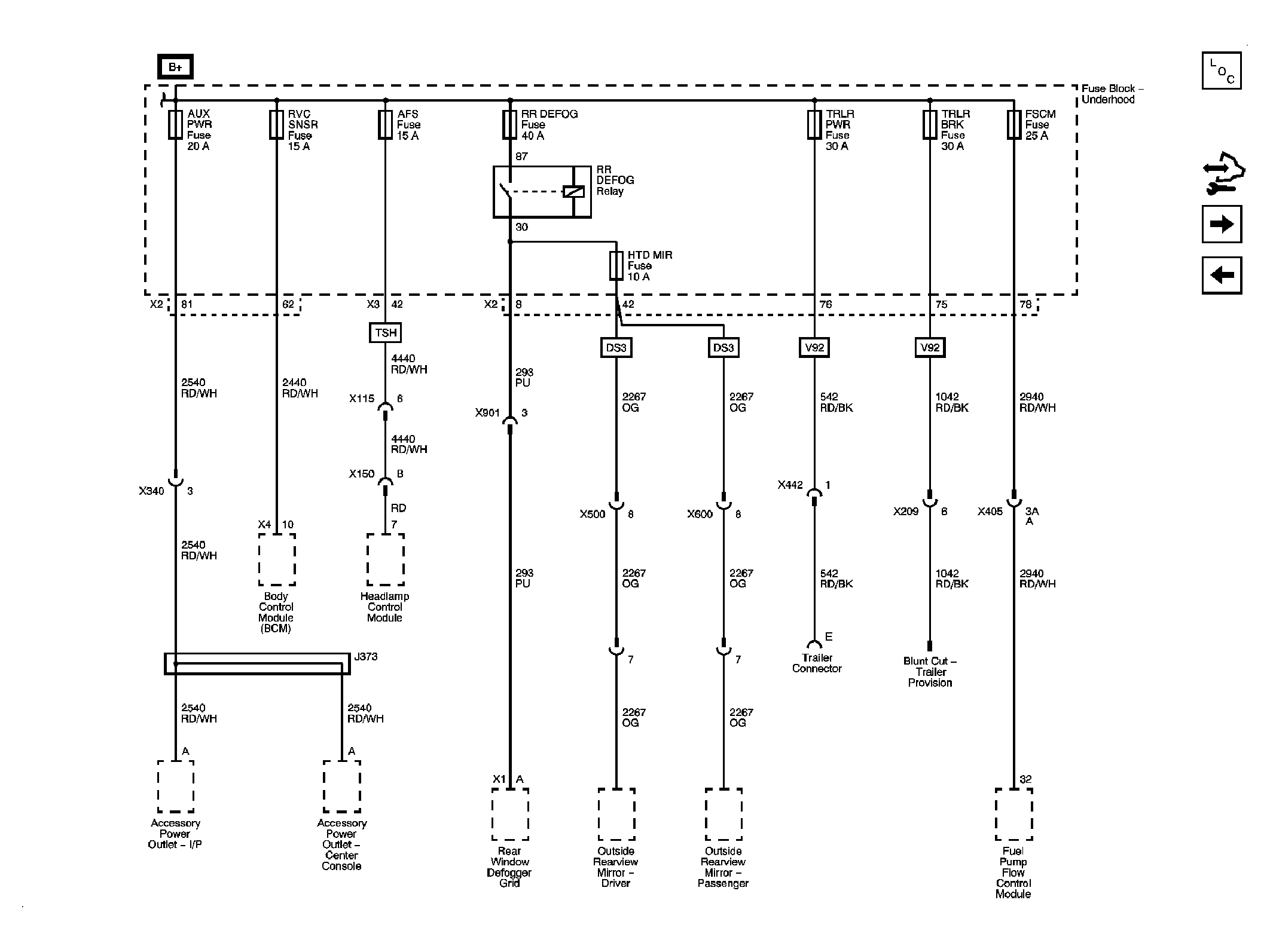

Fig 7: AFS, AUX PWR, FSCM, HTD MIR, RR DEFOG, RVC SNSR, TRLR BRK and TRLR PWR Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

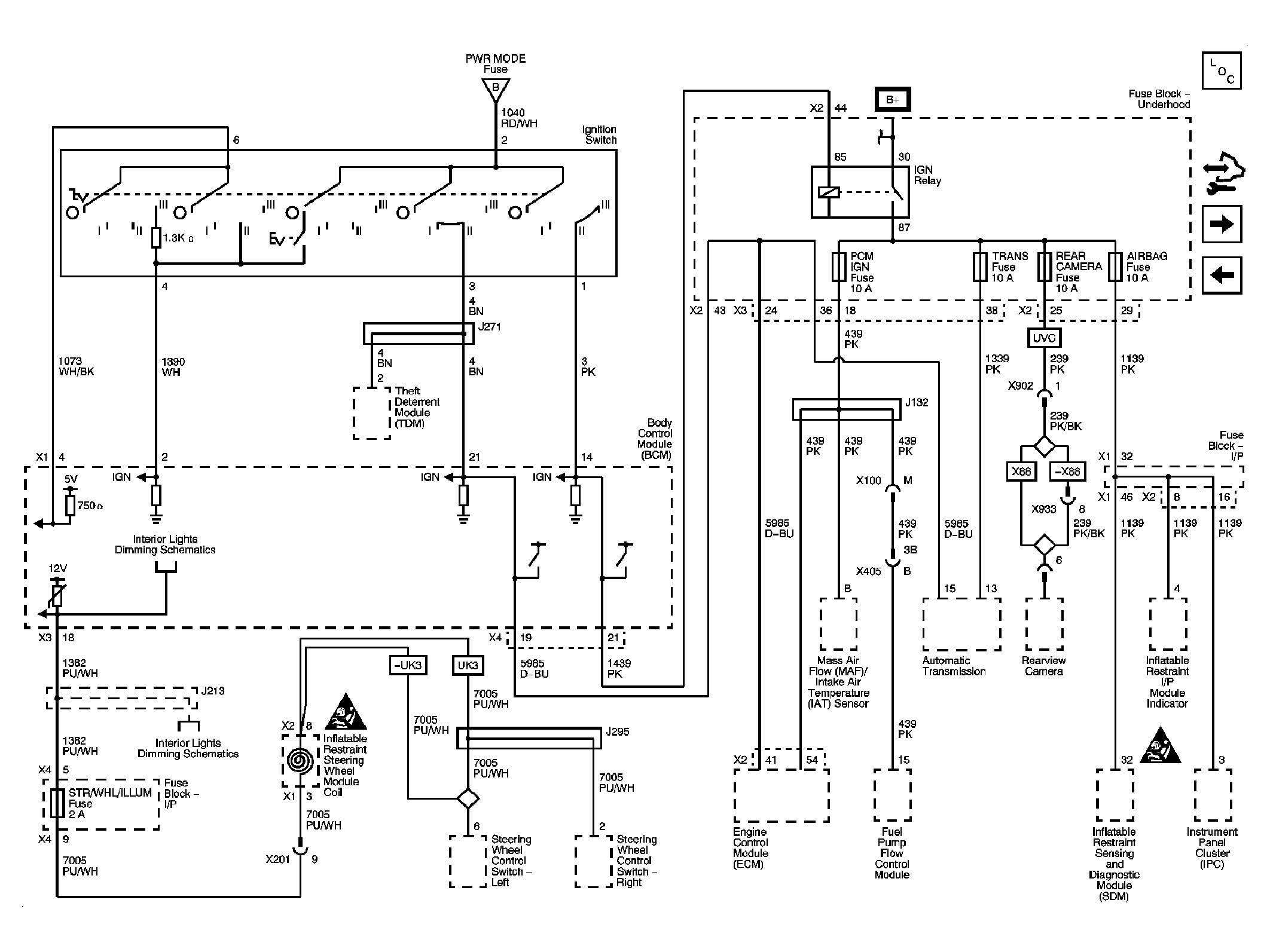

Fig 8: Ignition Switch and AIRBAG, PCM IGN, REAR CAMERA, and TRANS Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

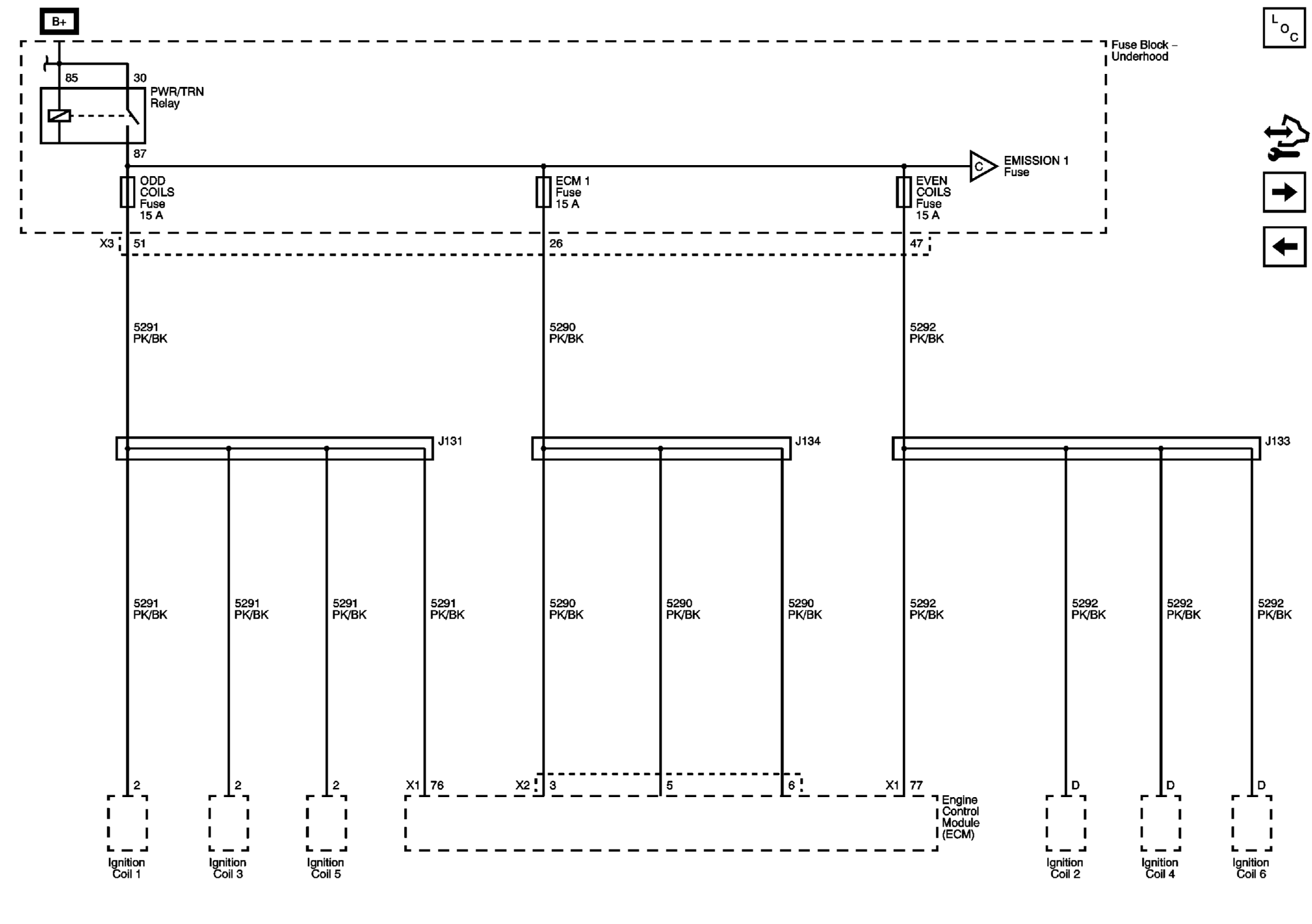

Fig 9: ECM 1, EVEN COILS, and ODD COILS Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

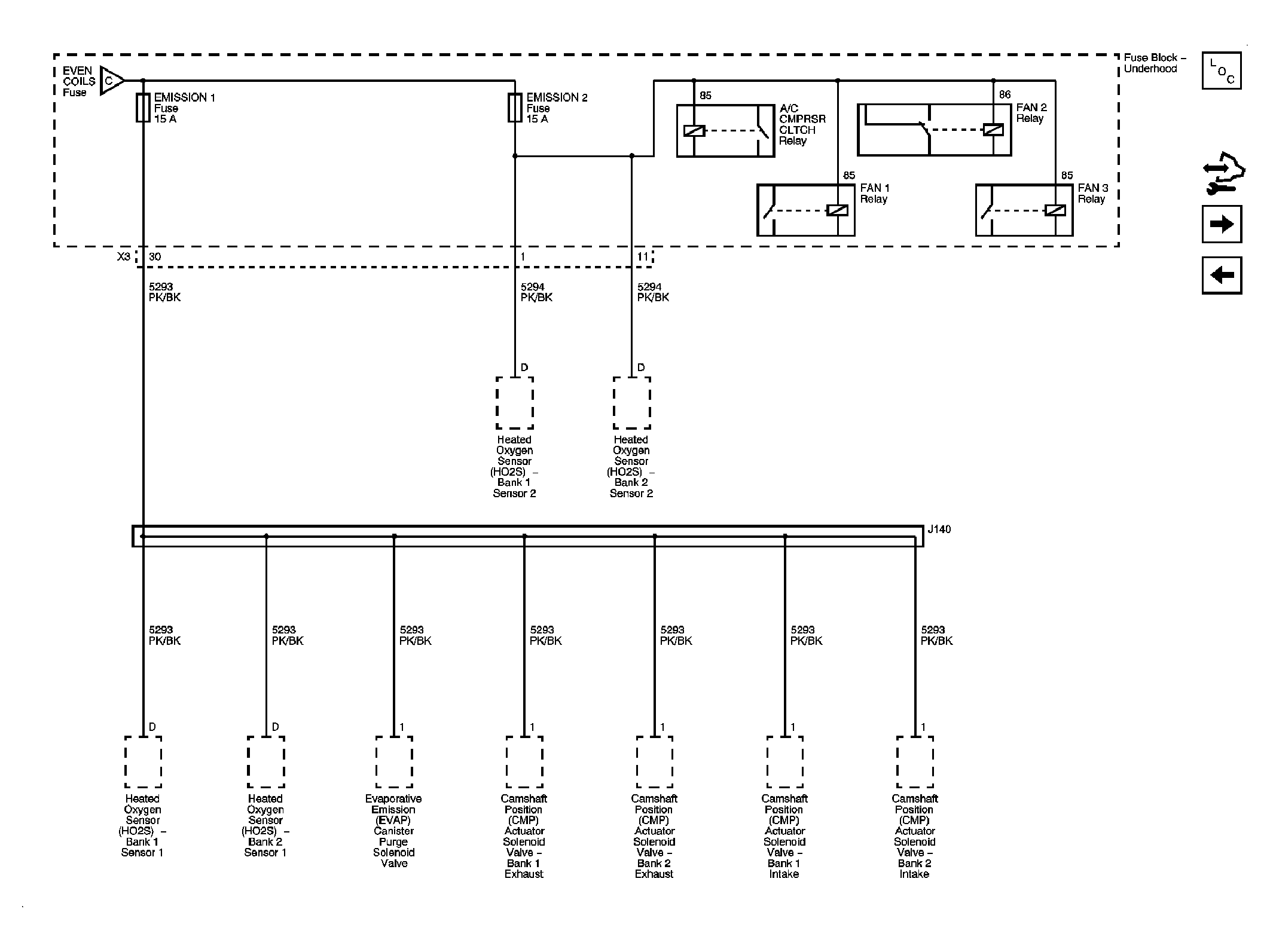

Fig 10: EMISSION 1 and EMISSION 2 Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

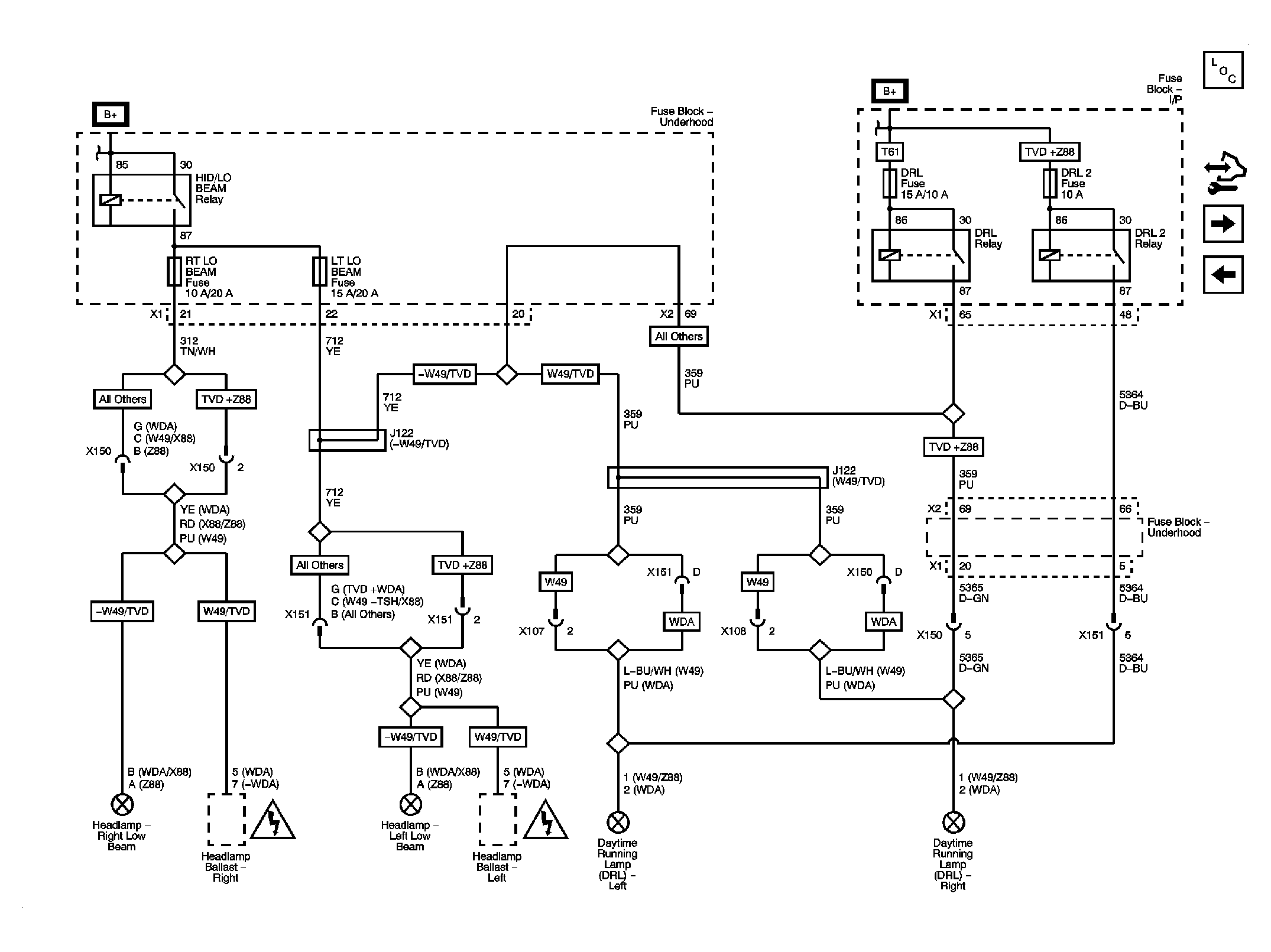

Fig 11: DRL, DRL 2, LT LO BEAM, and RT LO BEAM Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

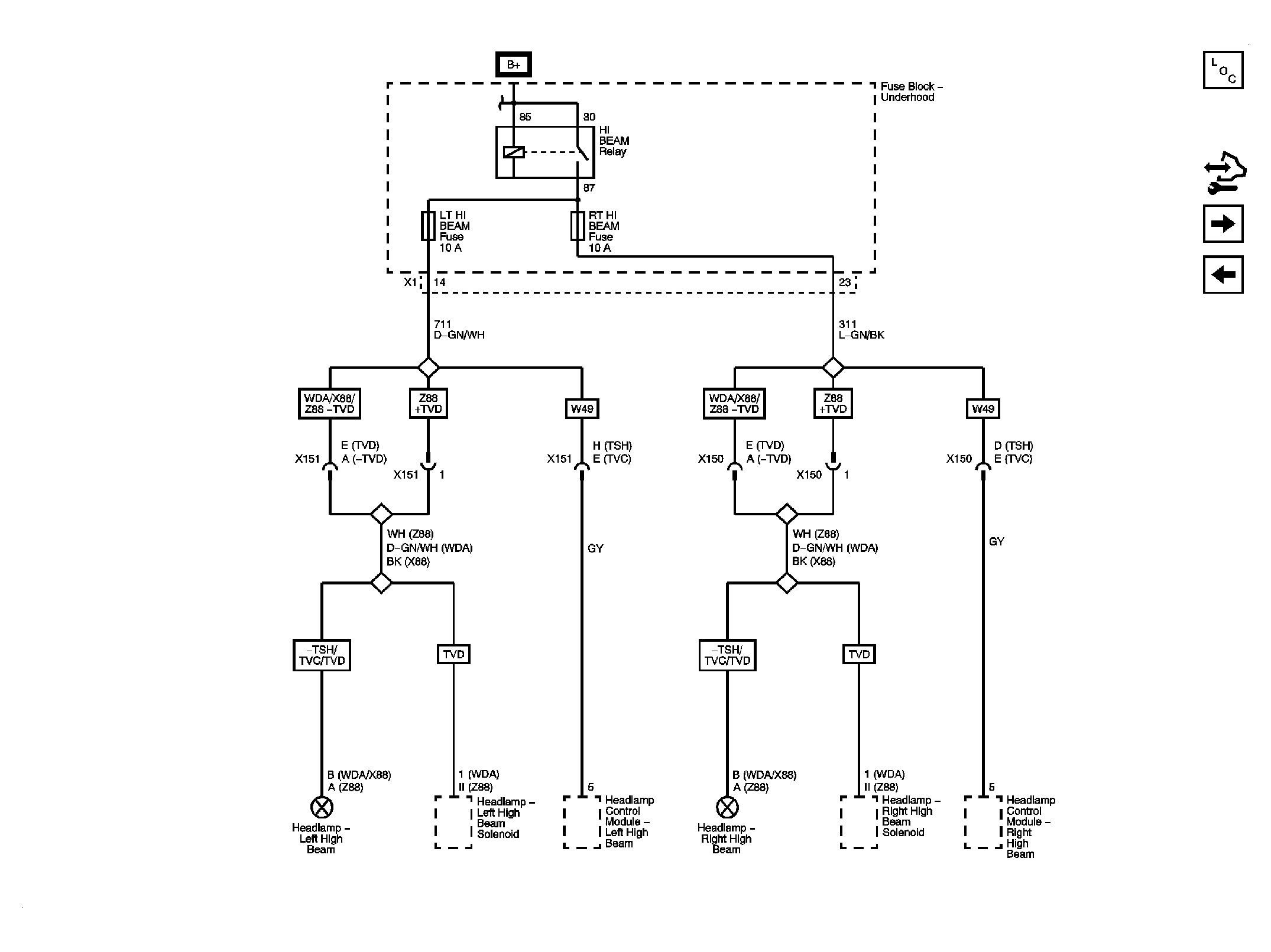

Fig 12: LT HI BEAM and RT HI BEAM Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

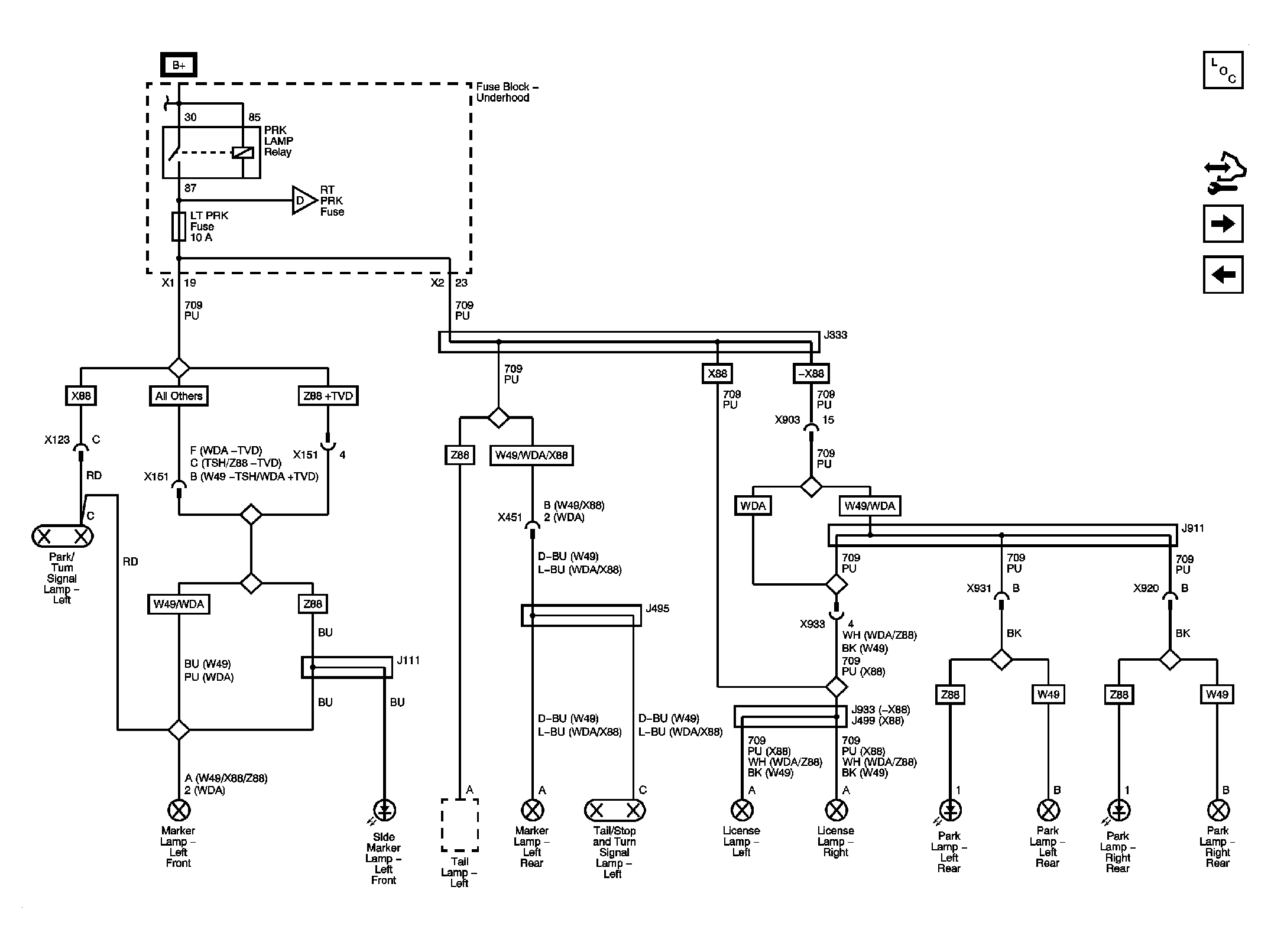

Fig 13: LT PRK Fuse Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

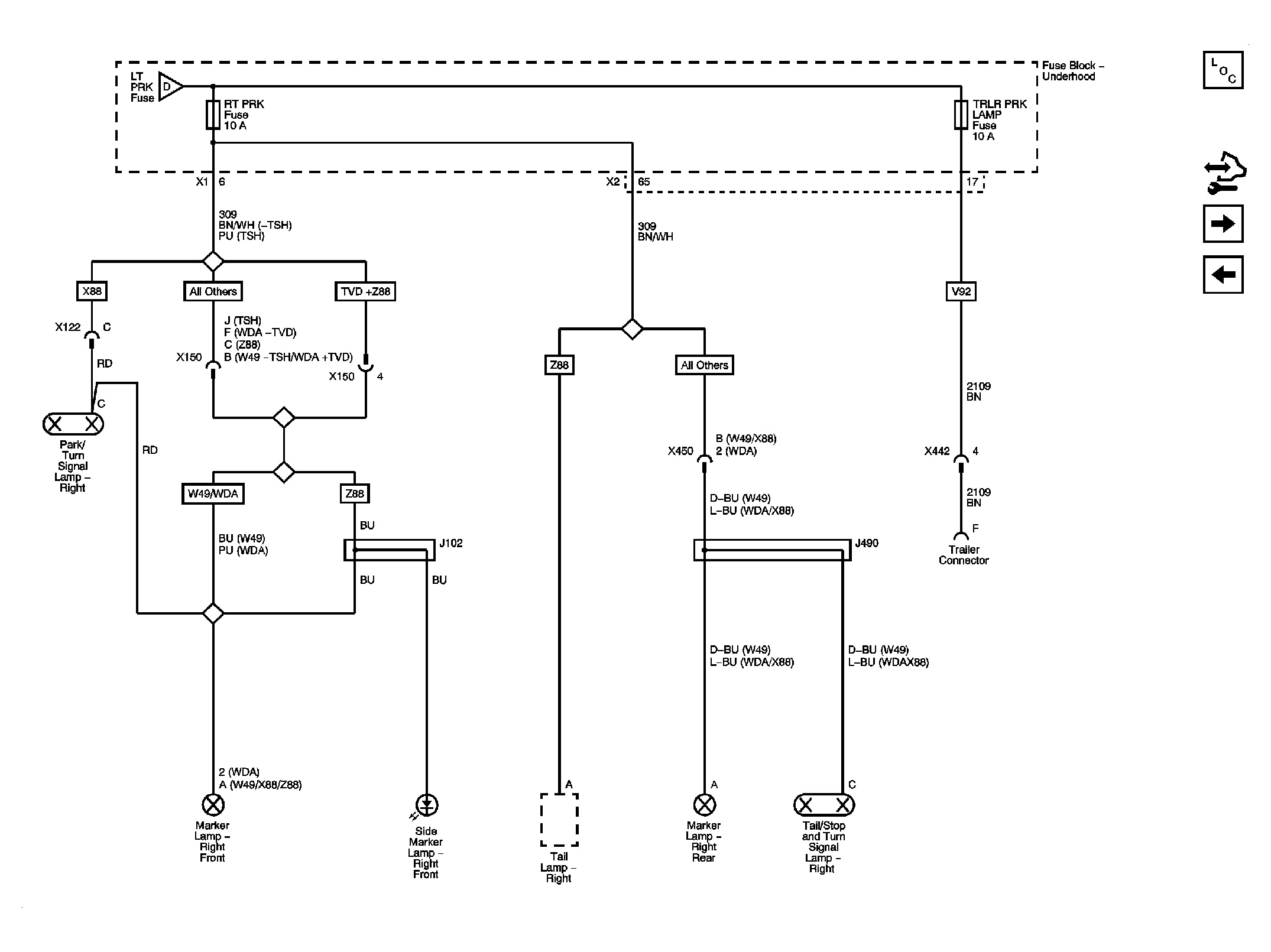

Fig 14: RT PRK and TRLR PRK LAMP Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 15: LT TRLR STOP/TRN, TRLR BCK/UP, and RT TRLR STOP/TRN Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
