Inner Front Energy Absorber Pad Replacement

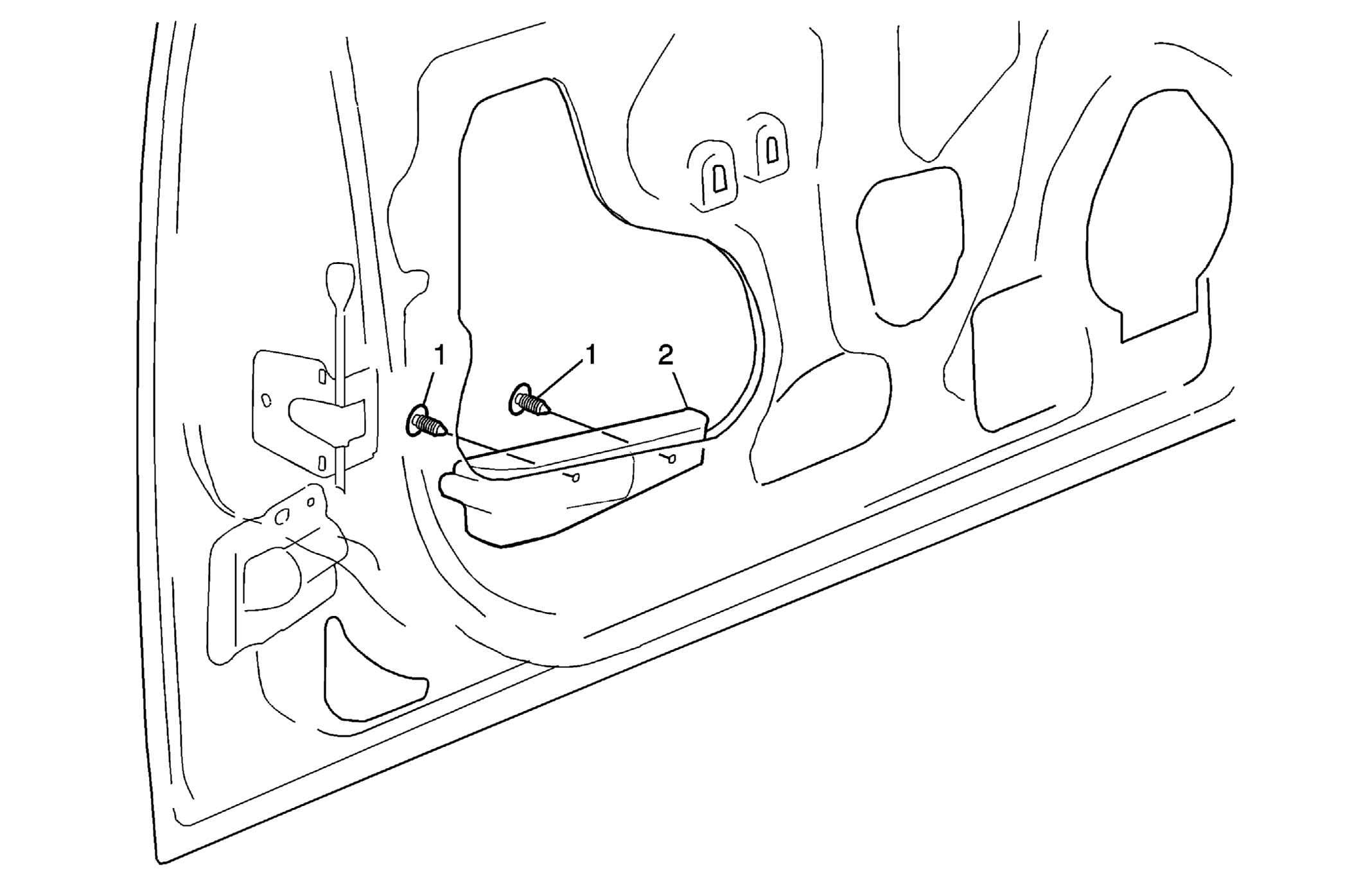

Fig 1: Replacing Inner Front Energy Absorber Pad

Courtesy of GENERAL MOTORS CORP.

Energy Absorber Pad Replacement - Inner Front

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the interior trim panel. Refer to Trim Panel Replacement - Side Rear Door (Impala) . Remove the water deflector. Refer to Water Deflector Replacement - Rear Door (Impala) .
1	Retainer, Push Pin (Qty: 2)
2	Absorber, Front Side Door Energy Tip: Pull the absorber from the door to release the retainers and adhesive.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Retainer, Push Pin (Qty: 2)

Absorber, Front Side Door Energy
Tip: Pull the absorber from the door to release the retainers and adhesive.
