Removal Procedure

  1. Remove the cover for the front seat shoulder belt to expose the bolt.
  2. Remove the front seat shoulder belt retaining bolt from the guide adjuster bracket.
  3. Remove the left front side door lock pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT -- LF LOCK PILLAR in Interior Trim.
  4. Remove the right front side door lock pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT -- RF LOCK PILLAR in Interior Trim.
  5. Remove the 2 guide adjuster bracket retaining bolts from the pillar.
  6. Remove the guide adjuster bracket from the pillar.

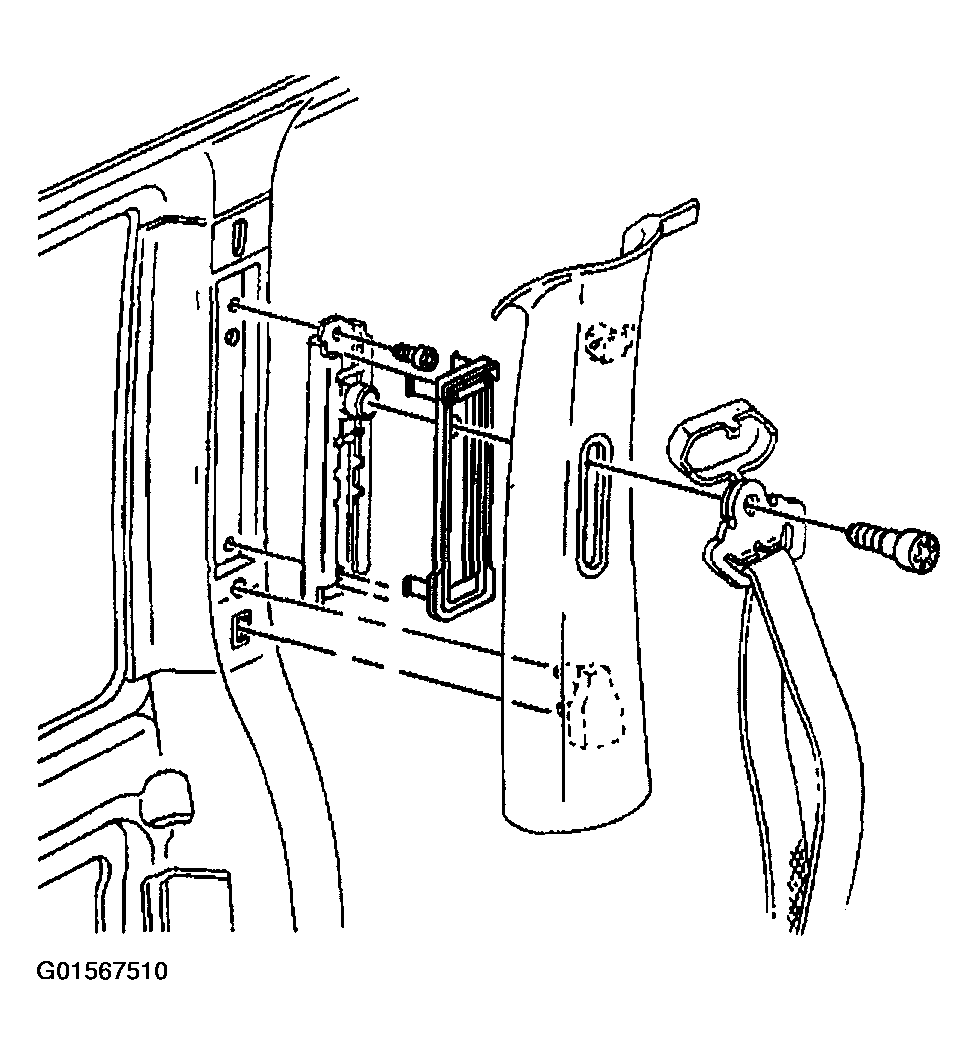

    Fig 1: Shoulder Belt Guide Adjuster (Front)
    G01567510Courtesy of GENERAL MOTORS CORP.
