Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

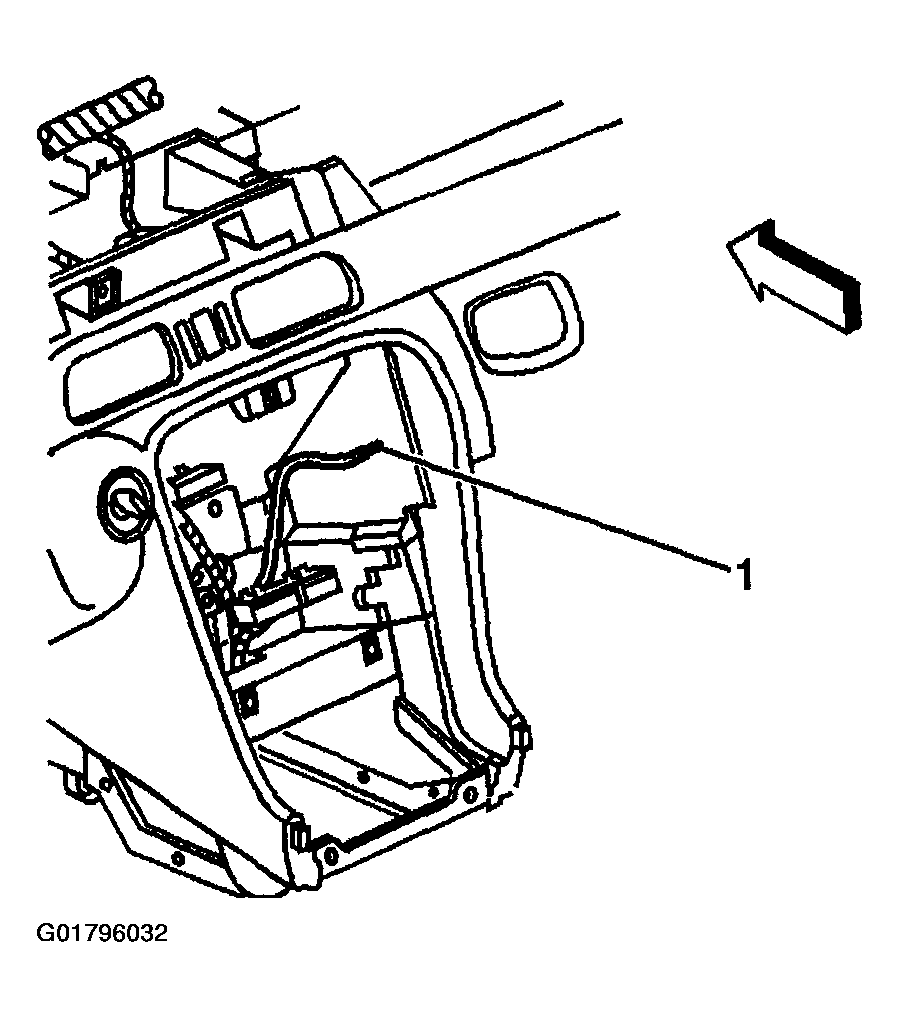

Fig 1: Locating Radio End Of Radio Extension Cable

Courtesy of GENERAL MOTORS CORP.

Route the antenna extension cable (1) next to the IP harness, through the IP carrier to the radio opening, as noted during removal.

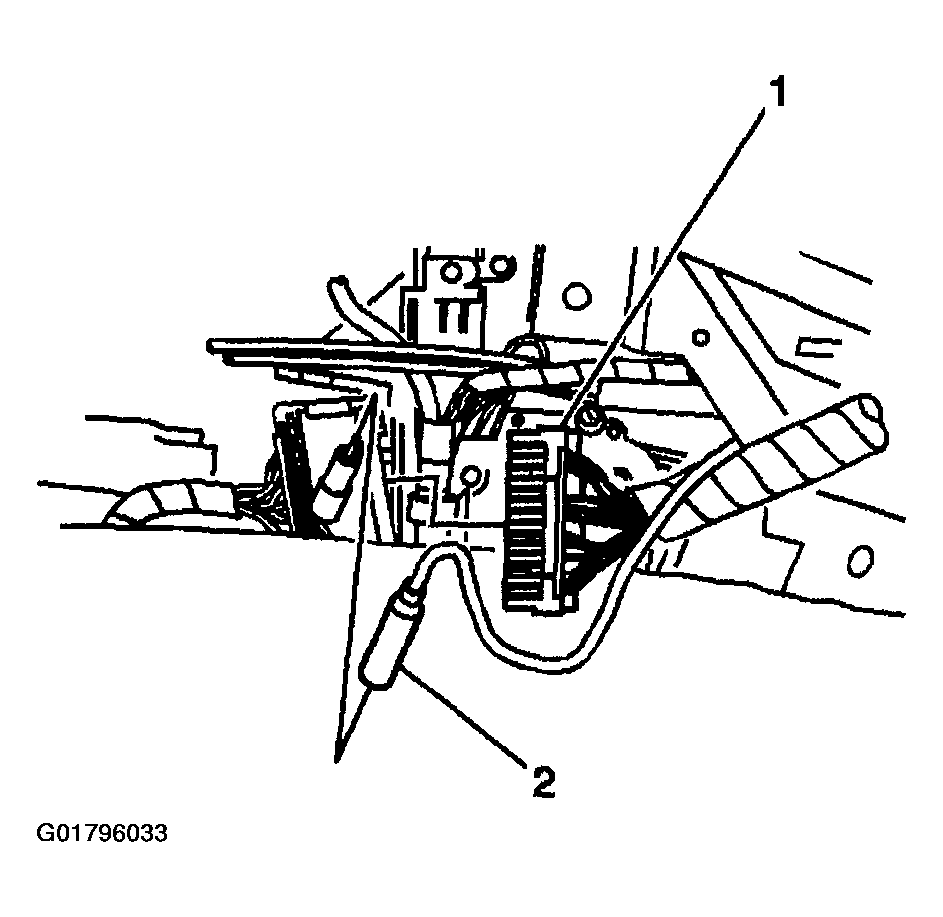

Fig 2: Locating Radio Antenna Extension Cable

Courtesy of GENERAL MOTORS CORP.

Connect the antenna extension cable (2).
Tie strap the antenna extension cable to the IP harness.
Install the radio. Refer to Radio Replacement (U1R, UL6, UM5, UM9) or Radio Replacement (U3Q, U3R, U3S) .
Install the left console trim panel. Refer to CONSOLE TRIM PANEL REPLACEMENT - LEFT .
