Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

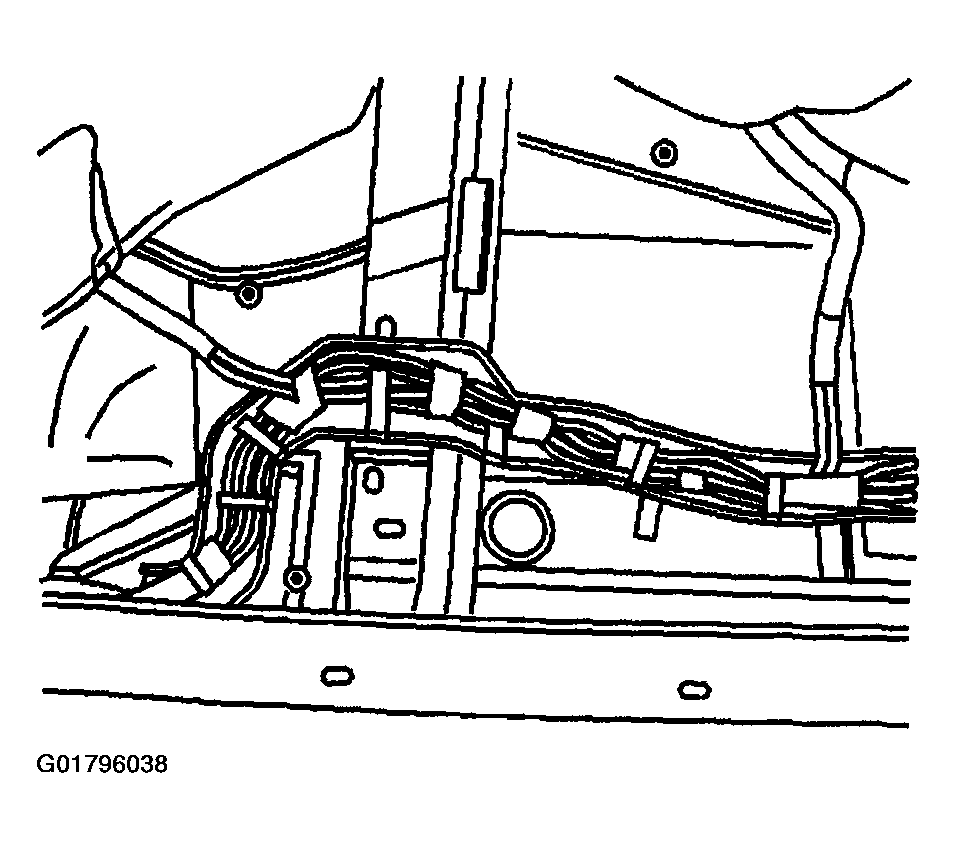

Fig 1: View Of Antenna Coaxial Cable

Courtesy of GENERAL MOTORS CORP.

Route the new coaxial antenna cable from the IP through the wiring harness conduit to the rear seat area.

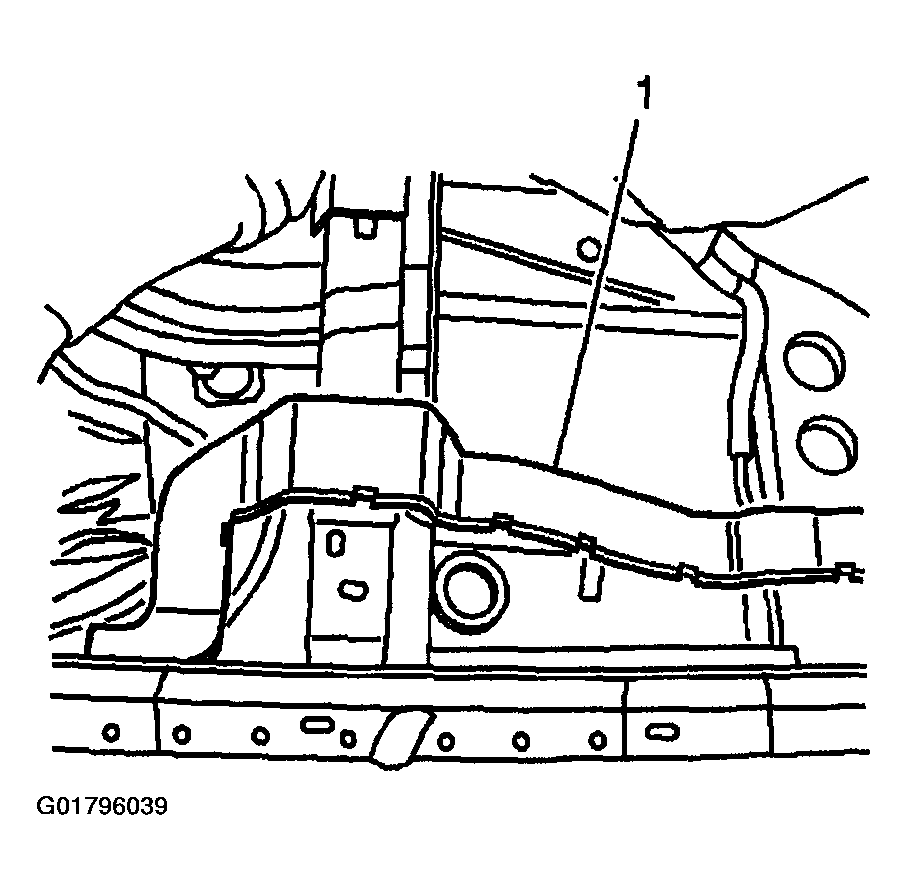

Fig 2: Locating Vehicle Harness Conduit Cover

Courtesy of GENERAL MOTORS CORP.

Install the vehicle harness conduit cover (1).
Position the carpet back to the floor, over the vehicle wiring harness.

Fig 3: Locating Antenna Cable Components

Courtesy of GENERAL MOTORS CORP.

Route the antenna cable (3) to the antenna module.
Connect the antenna cable (3) to the antenna module.
Reattach the radio antenna cable (3) to the antenna module wiring harness and clips
Important: Ensure the antenna cable is routed so it will not interfere with the rear seat back and bottom removal and installation procedure.
Tie strap or tape the antenna cable to the electrical wiring harness, in the rear seat area.

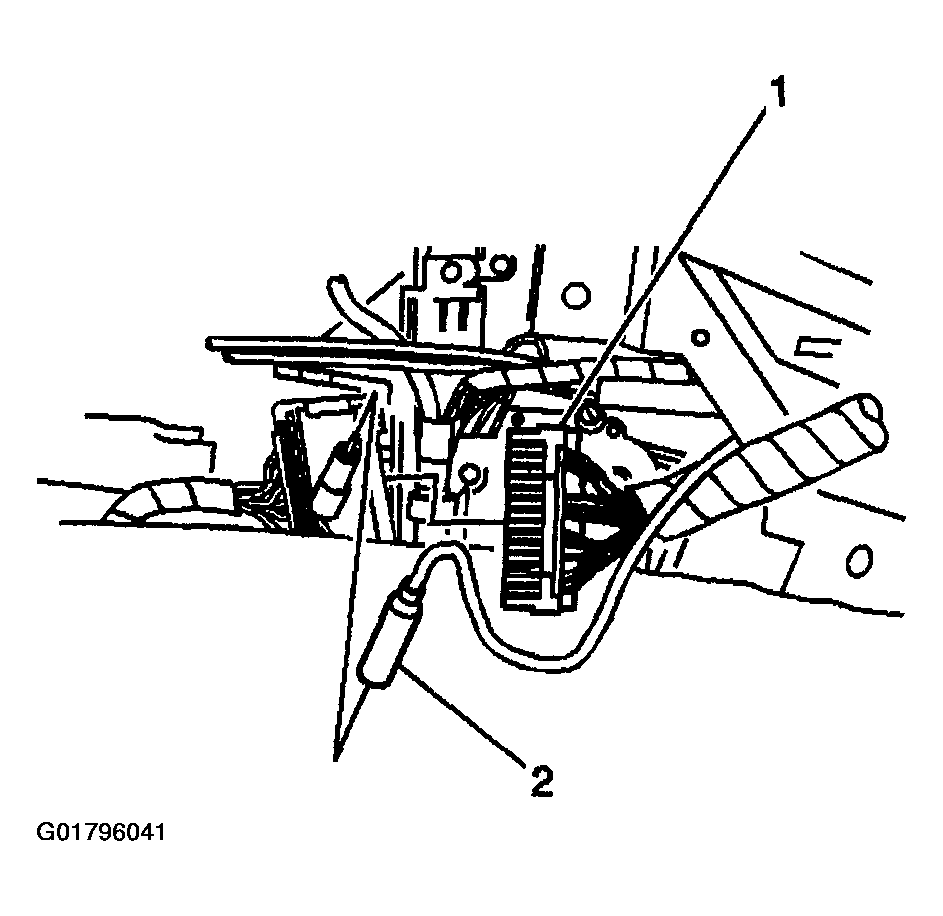

Fig 4: Locating Radio Antenna Extension Cable

Courtesy of GENERAL MOTORS CORP.

Connect the radio antenna cable (2) to the radio extension cable.
Install the center console. Refer to CONSOLE TRIM PANEL REPLACEMENT - LEFT .
Install the left front seat. Refer to SEAT REPLACEMENT - FRONT BUCKET .
Install the left rear sail panel. Refer to SAIL PANEL REPLACEMENT .
Install the center pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT - CENTER PILLAR .
Install the left front carpet retainer. Refer to CARPET RETAINER REPLACEMENT - FRONT .
Install the left rear carpet retainer. Refer to CARPET RETAINER REPLACEMENT - REAR .
Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR .
