Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Lower the screen from the console.

Fig 1: Removing Lower Screen From Console
Courtesy of GENERAL MOTORS CORP.
Remove the dome light lens cover.

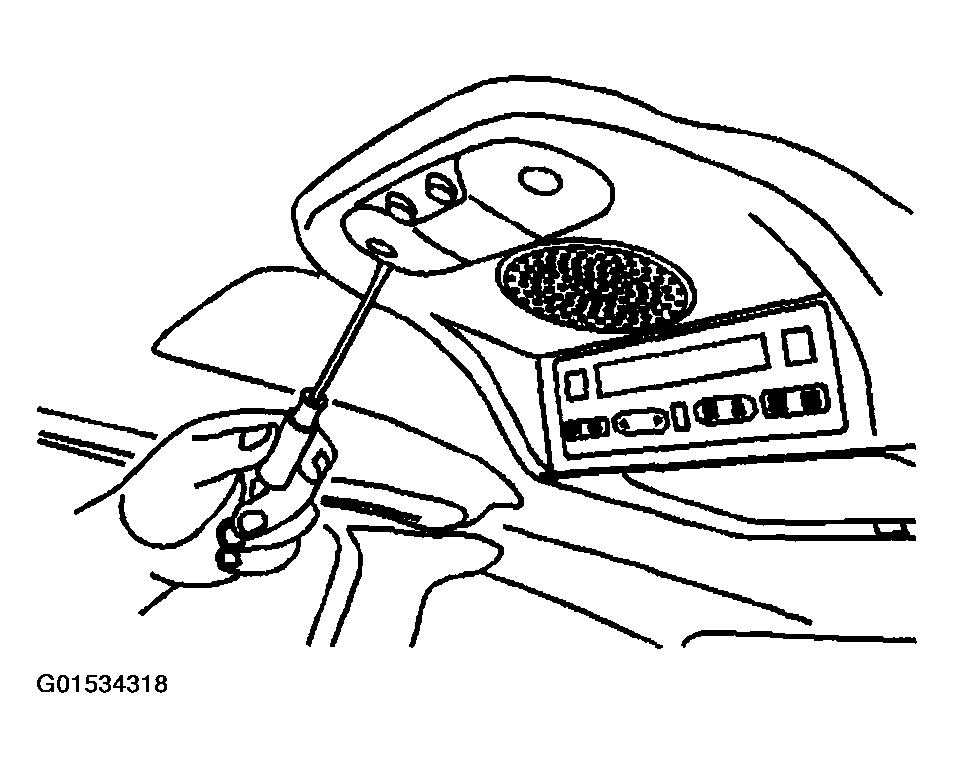

Fig 2: Removing Dome Light Lens Cover
Courtesy of GENERAL MOTORS CORP.
Remove the bulbs from the dome light.

Fig 3: Removing Bulbs From Dome Light
Courtesy of GENERAL MOTORS CORP.
Remove the screws from behind the screen.

Fig 4: Removing Screws From Behind Screen
Courtesy of GENERAL MOTORS CORP.
Remove the screws from the dome light.

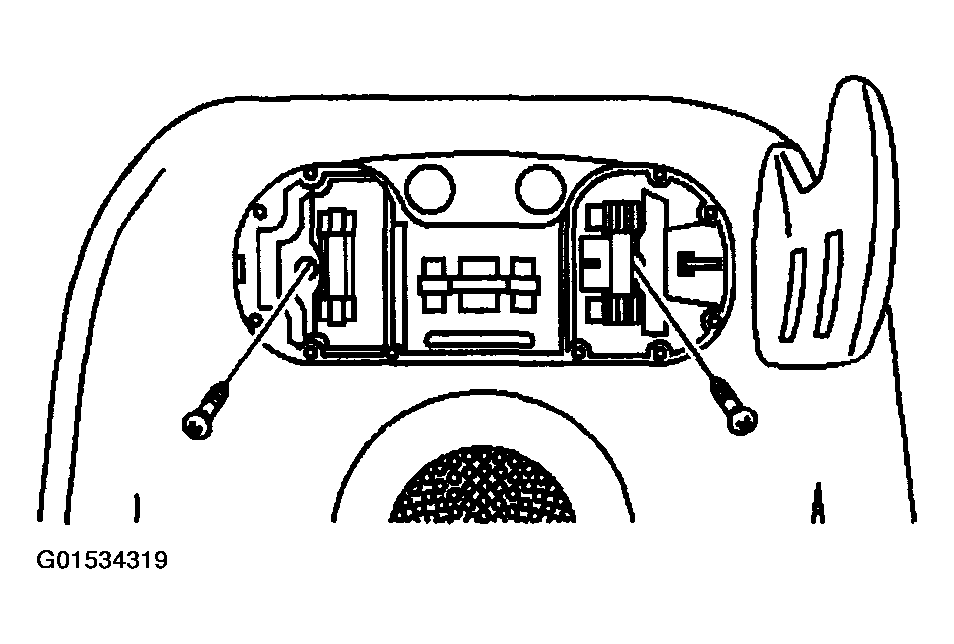

Fig 5: Removing Screws From Dome Light
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connectors from the overhead console.

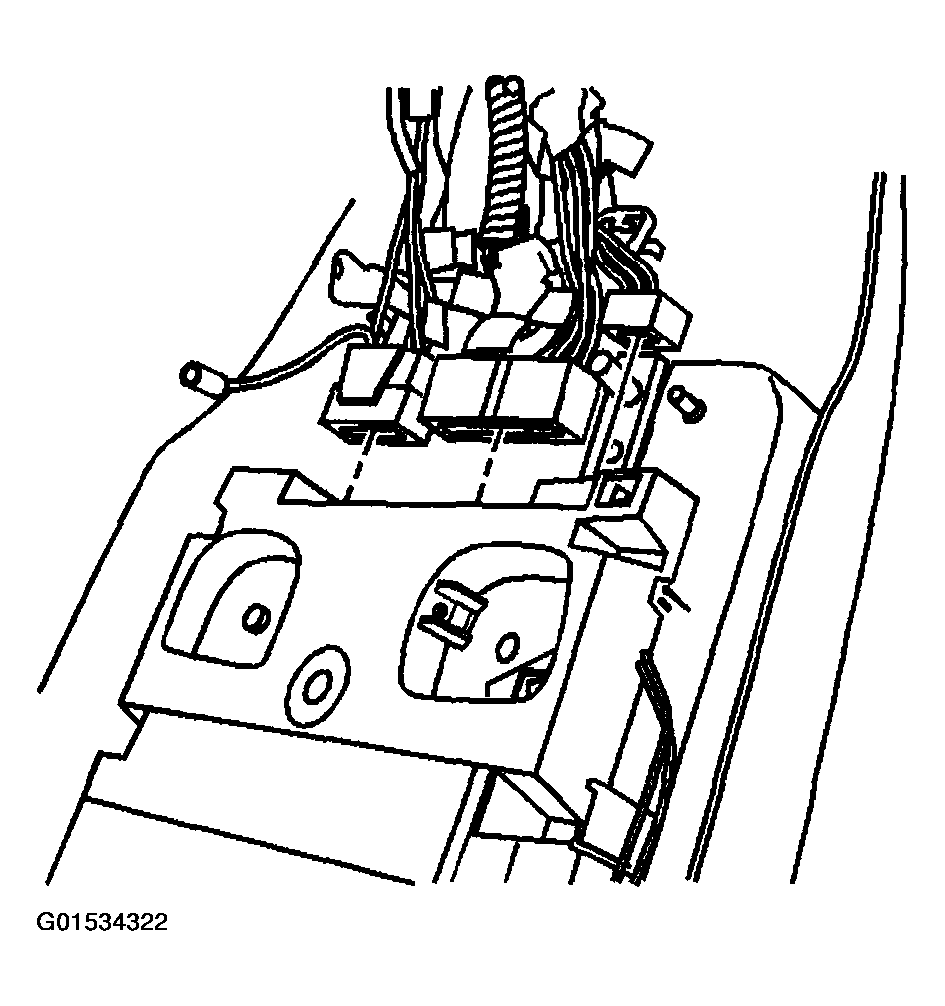

Fig 6: Disconnecting Electrical Connectors From Overhead Console
Courtesy of GENERAL MOTORS CORP.
Remove the overhead console from the headliner.

Fig 7: Removing Overhead Console From Headliner
Courtesy of GENERAL MOTORS CORP.
