Liftgate Latch Striker Replacement

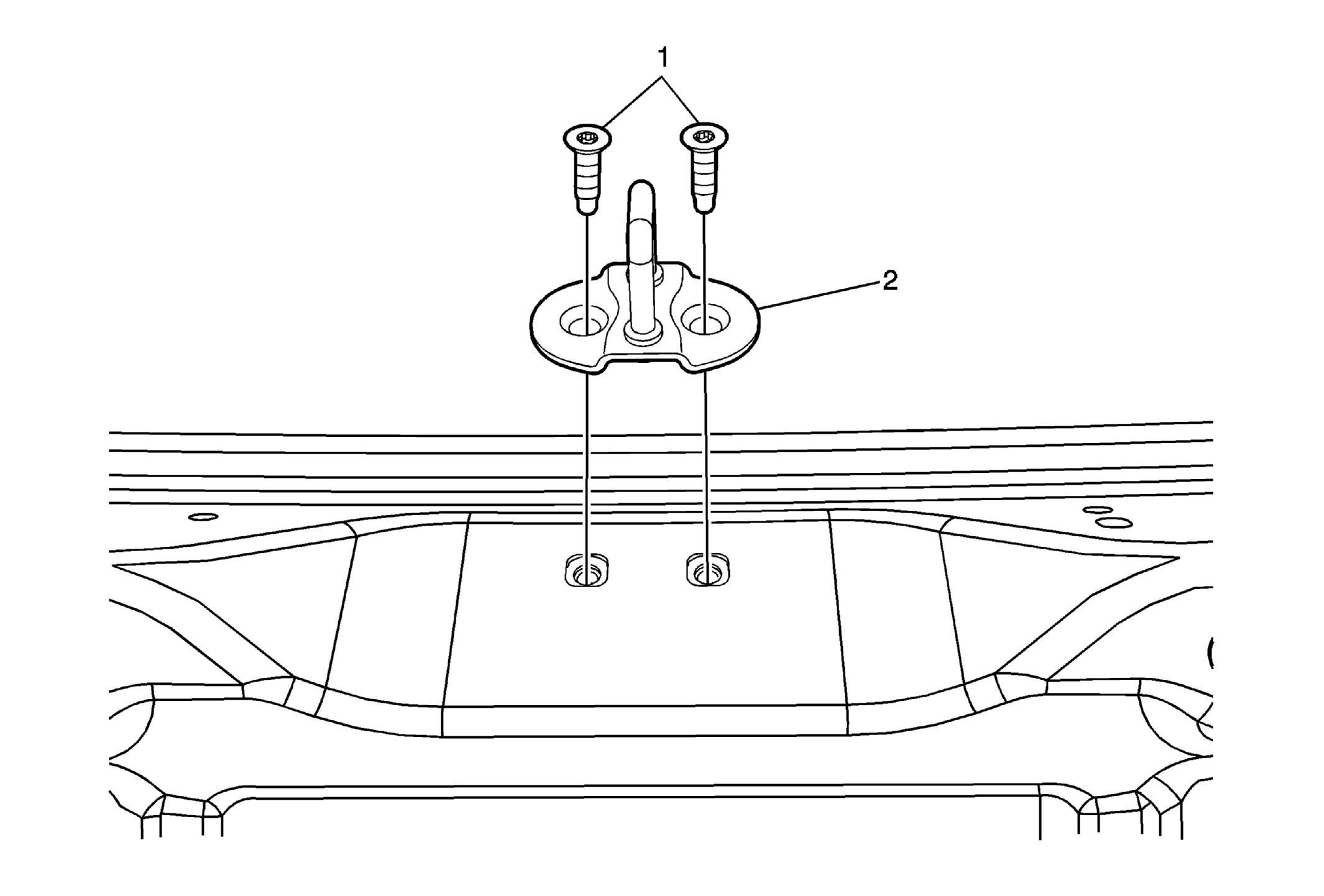

Fig 1: Liftgate Latch Striker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement .
1	Liftgate Latch Striker Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
2	Liftgate Latch Striker Procedure Mark the location of the striker with a grease pencil to ensure proper alignment during installation. Adjust the liftgate if needed.

Callout

Component Name

Preliminary Procedure
Remove the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement .

Liftgate Latch Striker Bolt (Qty: 2)

CAUTION:

Tighten
25 N.m (18 lb ft)

Liftgate Latch Striker

Procedure

Mark the location of the striker with a grease pencil to ensure proper alignment during installation.
Adjust the liftgate if needed.
