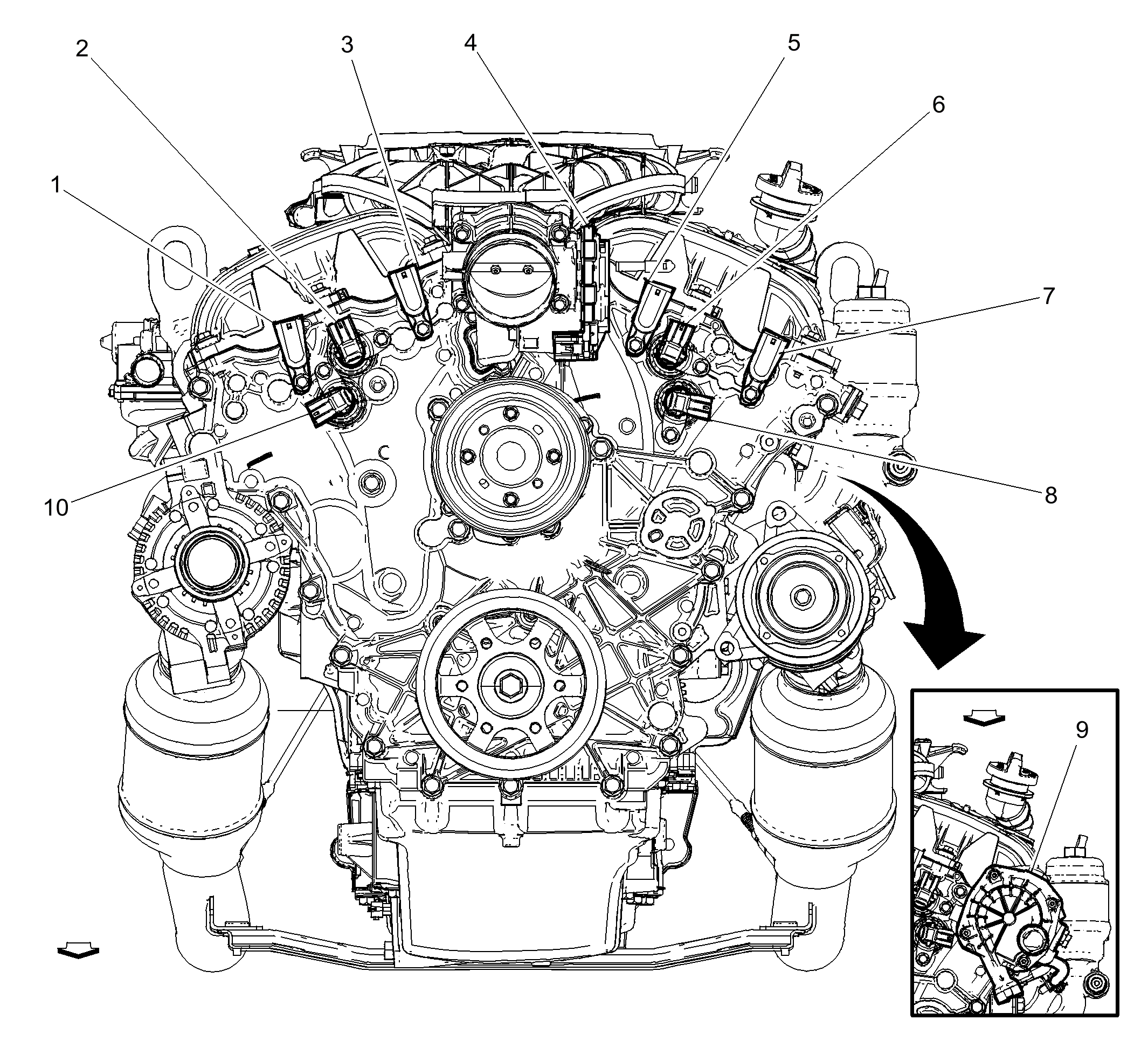

Front of Engine Components (LFX)
Front of Engine Components (LFX)
| Items |
|---|
| 1: B23A Camshaft Position Sensor - Bank 1 Exhaust (LFX) B23A Camshaft Position Sensor - Bank 1 Exhaust (LFX) |
| 2: Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (LFX) Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (LFX) |
| 3: B23B Camshaft Position Sensor - Bank 1 Intake (LFX) B23B Camshaft Position Sensor - Bank 1 Intake (LFX) |
| 4: Q38 Throttle Body Q38 Throttle Body |
| 5: B23D Camshaft Position Sensor - Bank 2 Intake (LFX) B23D Camshaft Position Sensor - Bank 2 Intake (LFX) |
| 6: Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake (LFX) Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake (LFX) |
| 7: B23C Camshaft Position Sensor - Bank 2 Exhaust (LFX) B23C Camshaft Position Sensor - Bank 2 Exhaust (LFX) |
| 8: Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LFX) Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LFX) |
| 9: G21 Secondary Air Injection Pump (NU6) G21 Secondary Air Injection Pump (NU6) |
| 10: Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust (LFX) Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust (LFX) |
