Charging System Wireless Module Replacement

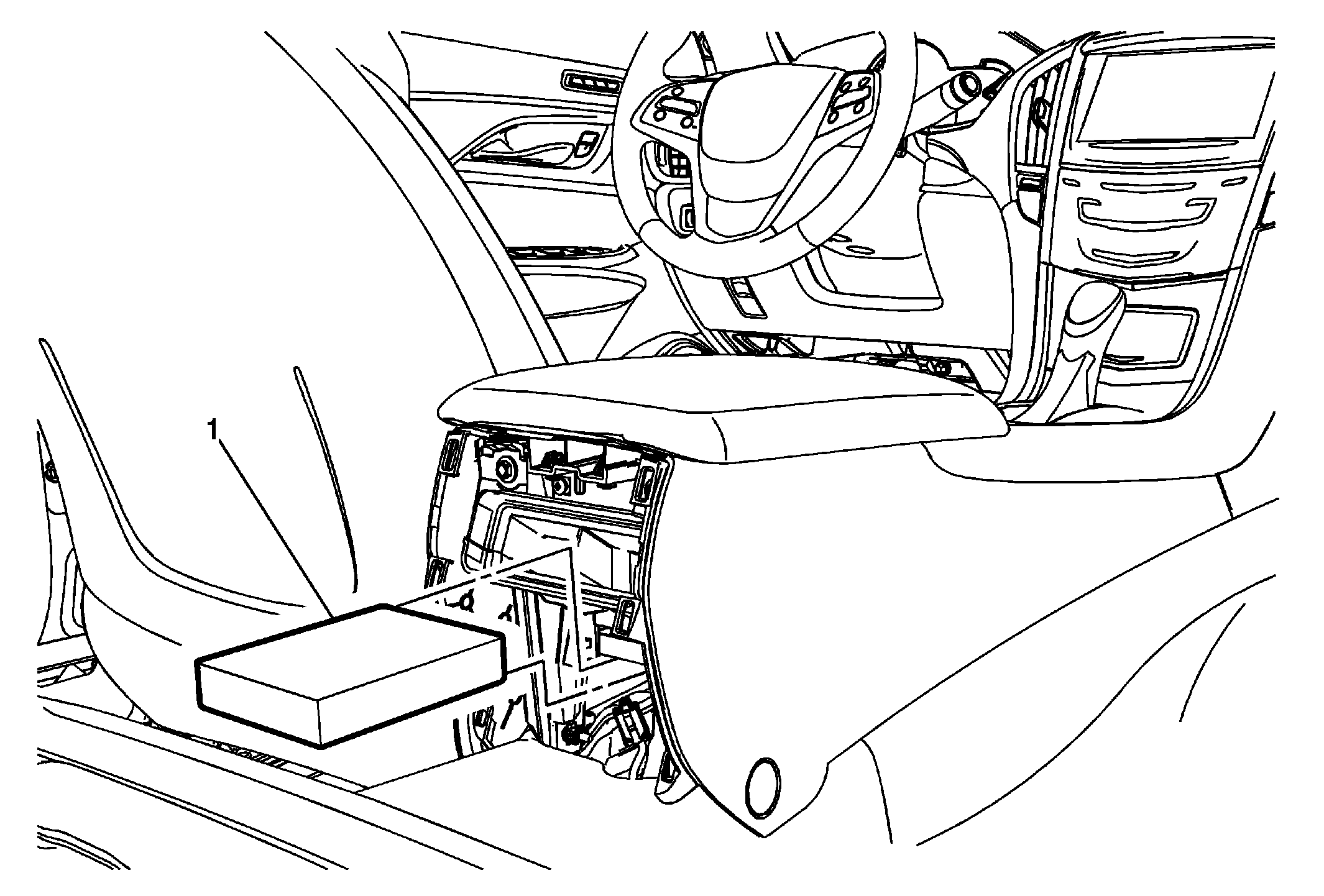

Fig 1: Charging System Wireless Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console rear trim panel. Refer to Front Floor Console Rear Trim Panel Replacement .
1	Charging System Wireless Module Procedure Disconnect the electrical connector. Slide module to the rear to remove.

Callout

Component Name

Preliminary Procedure
Remove the front floor console rear trim panel. Refer to Front Floor Console Rear Trim Panel Replacement .

Charging System Wireless Module

Procedure
