Automatic Level Control Air Compressor Insulator Replacement

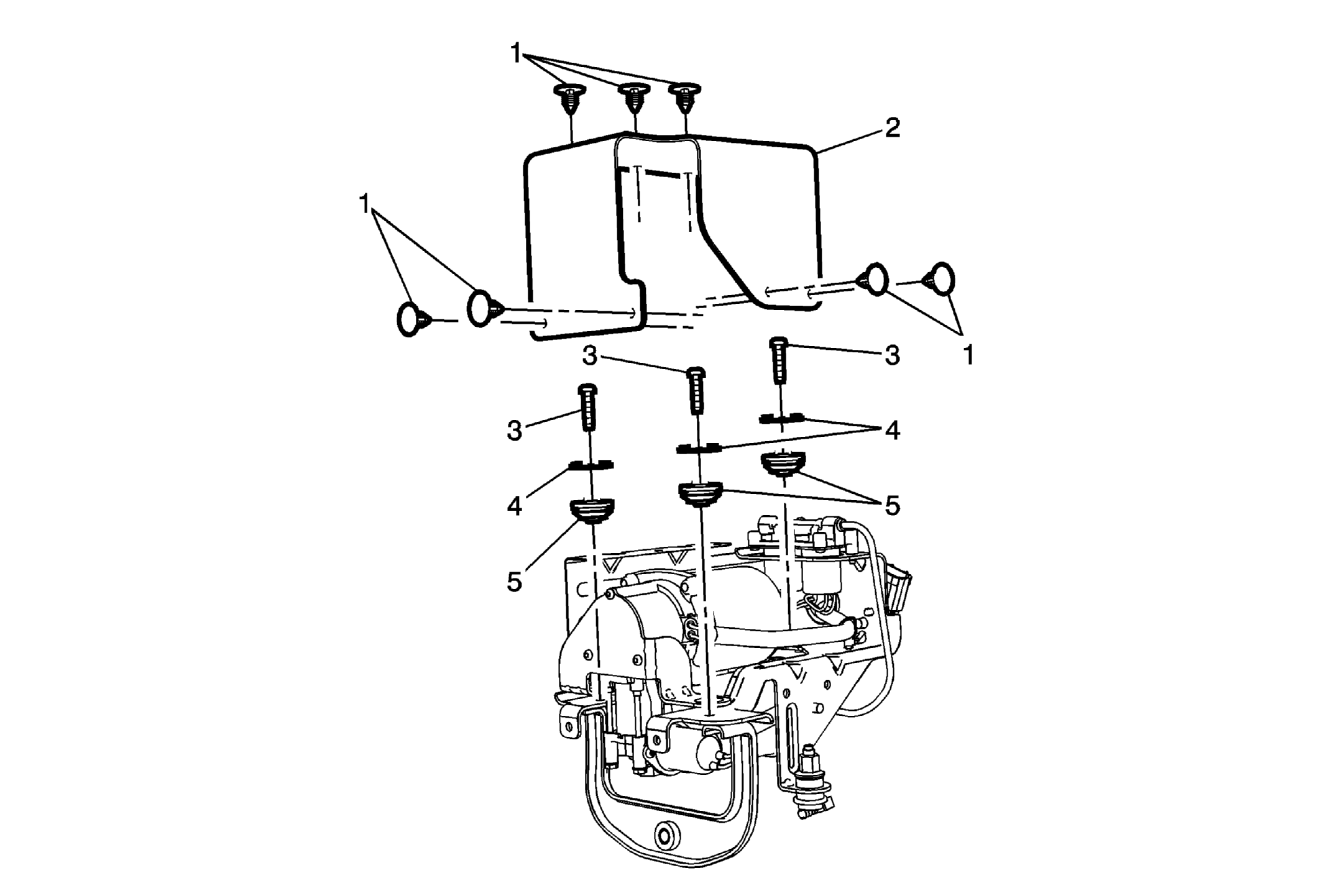

Fig 1: Automatic Level Control Air Compressor Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear air spring compressor assembly. Refer to Rear Air Spring Compressor Replacement . Position the rear air spring compressor assembly upside down on a suitable work surface.
1	Push-in Fasteners (Qty: 7)
2	Automatic Level Control Air Compressor Shield
3	Automatic Level Control Air Compressor Insulator Fastener (Qty: 3) CAUTION: Refer to Fastener Caution .
4	Automatic Level Control Air Compressor Insulator Washer (Qty: 3)
5	Automatic Level Control Air Compressor Insulator (Qty: 3)
