Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

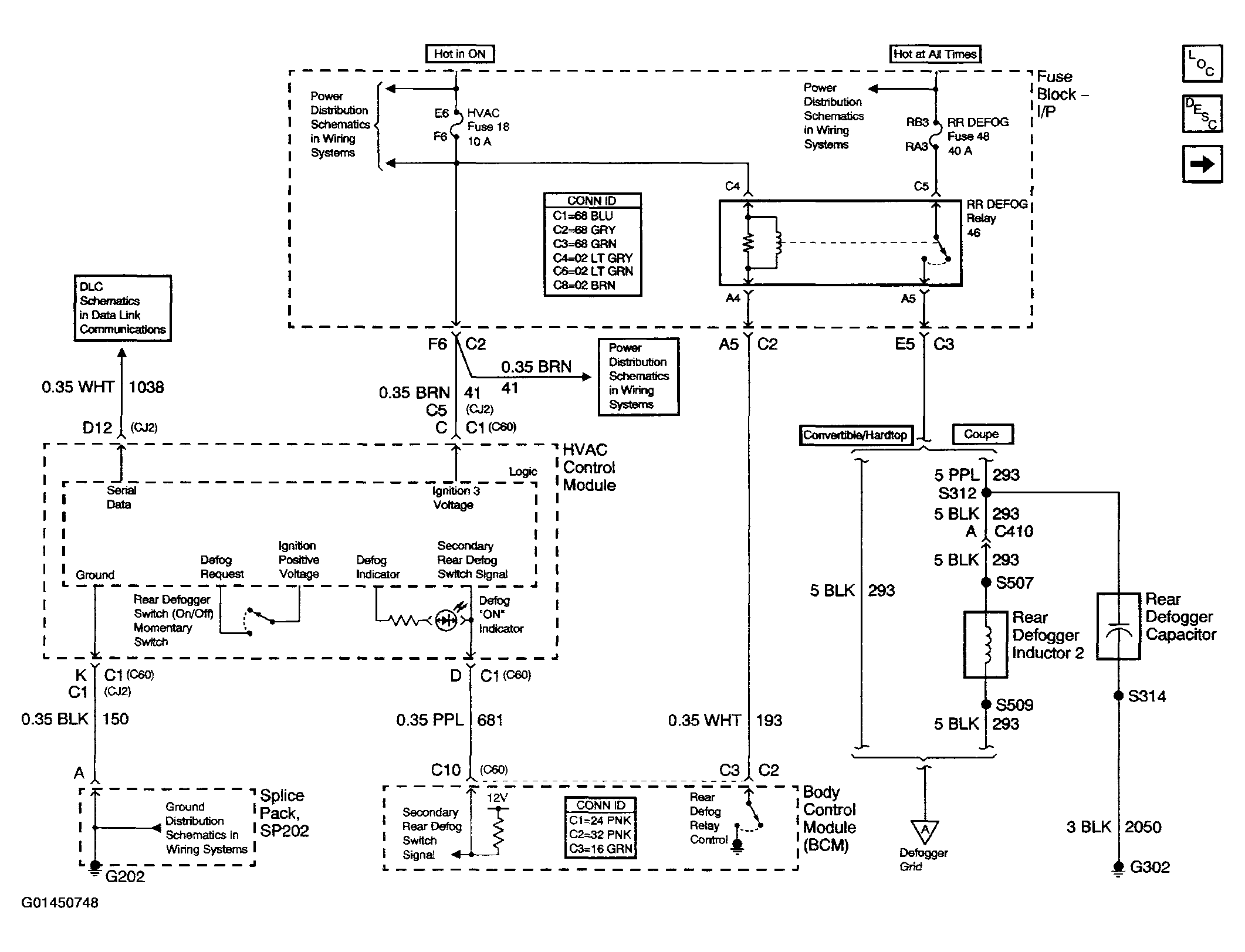

Fig 1: Defogger Schematics Diagram (Power, Switch & Relay)

Courtesy of GENERAL MOTORS CORP.

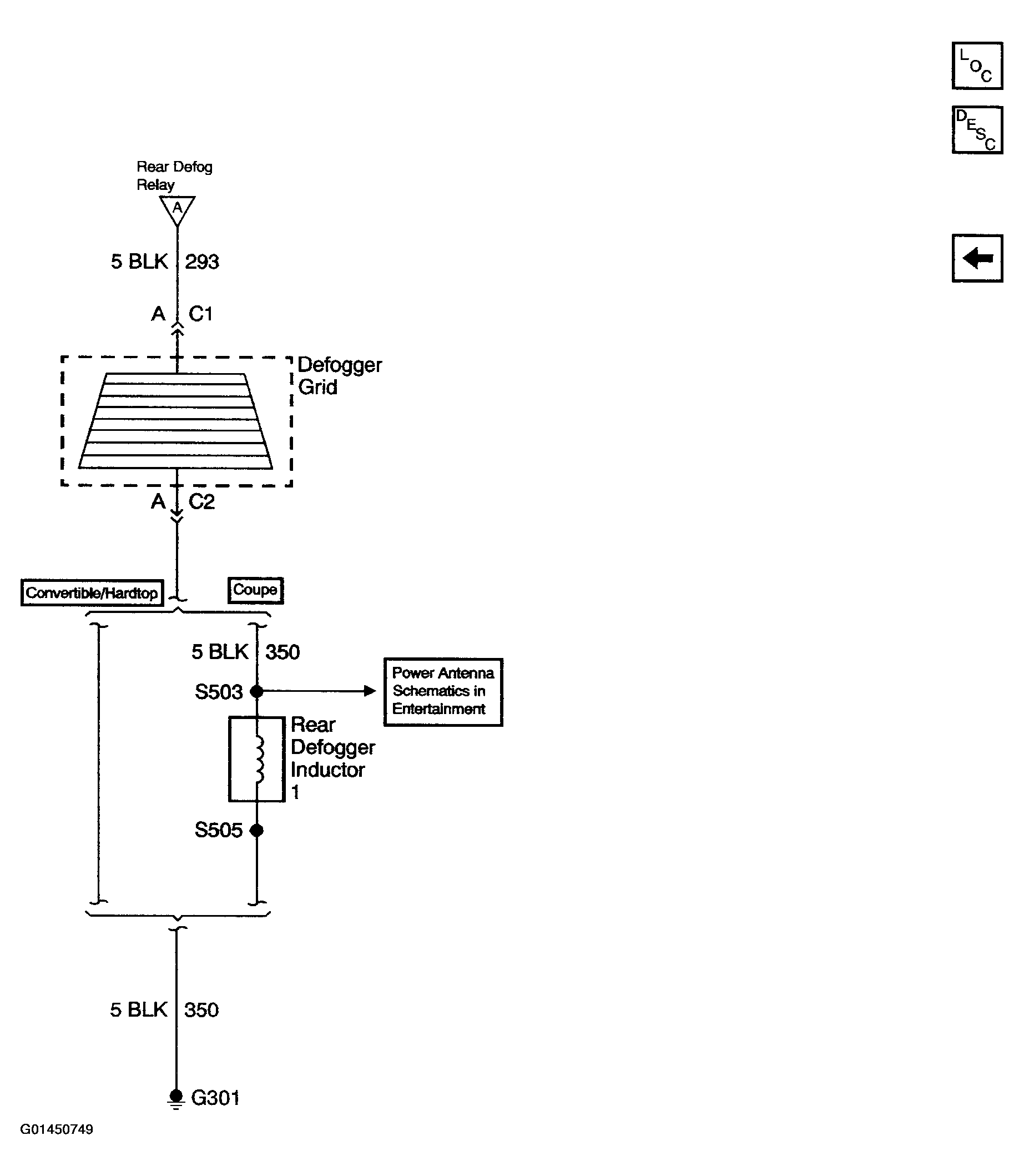

Fig 2: Defogger Schematics Diagram (Ground & Defogger Grid)

Courtesy of GENERAL MOTORS CORP.

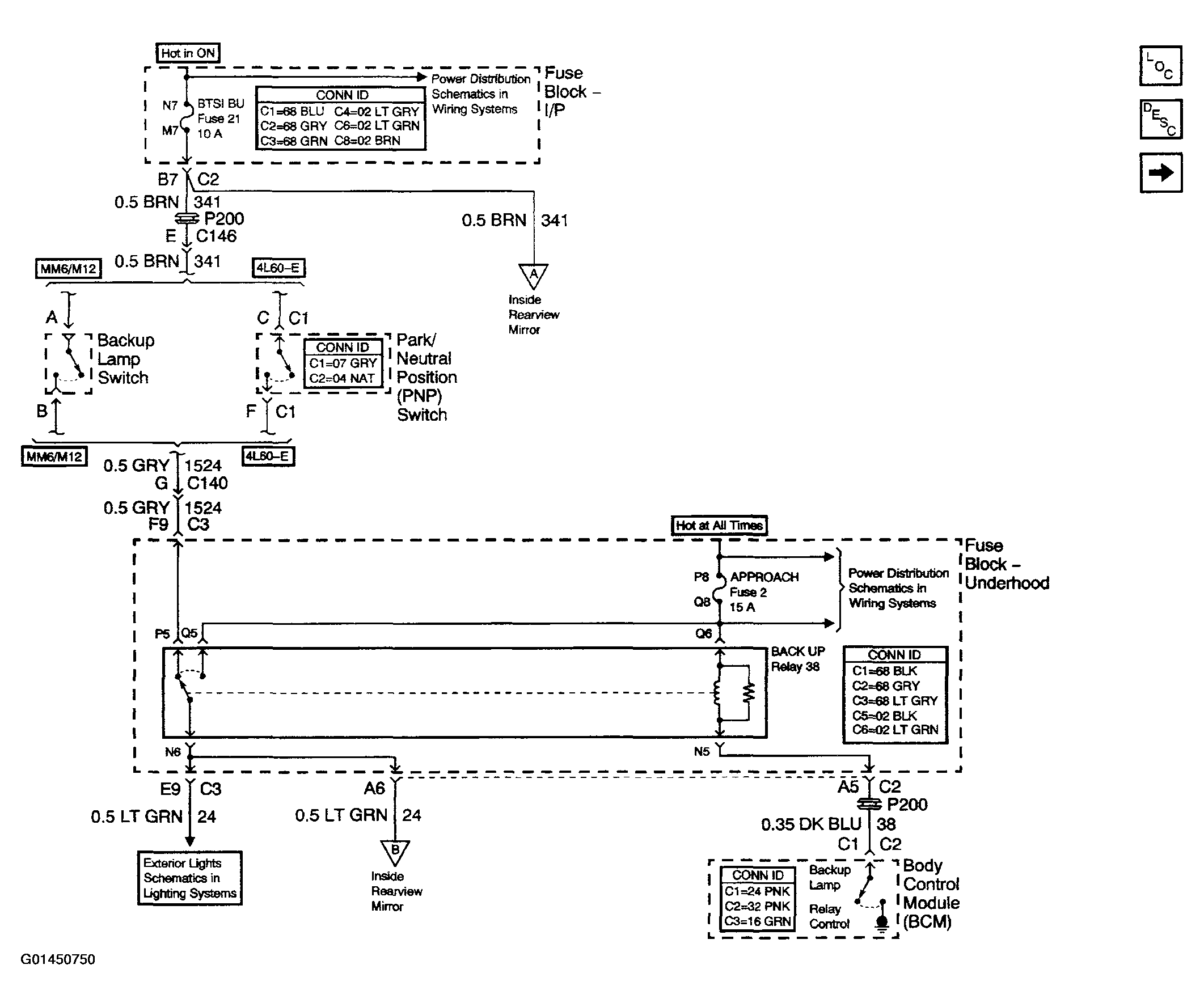

Fig 3: Inside Rearview Mirror Schematics Diagram (Backup Lamp Signal)

Courtesy of GENERAL MOTORS CORP.

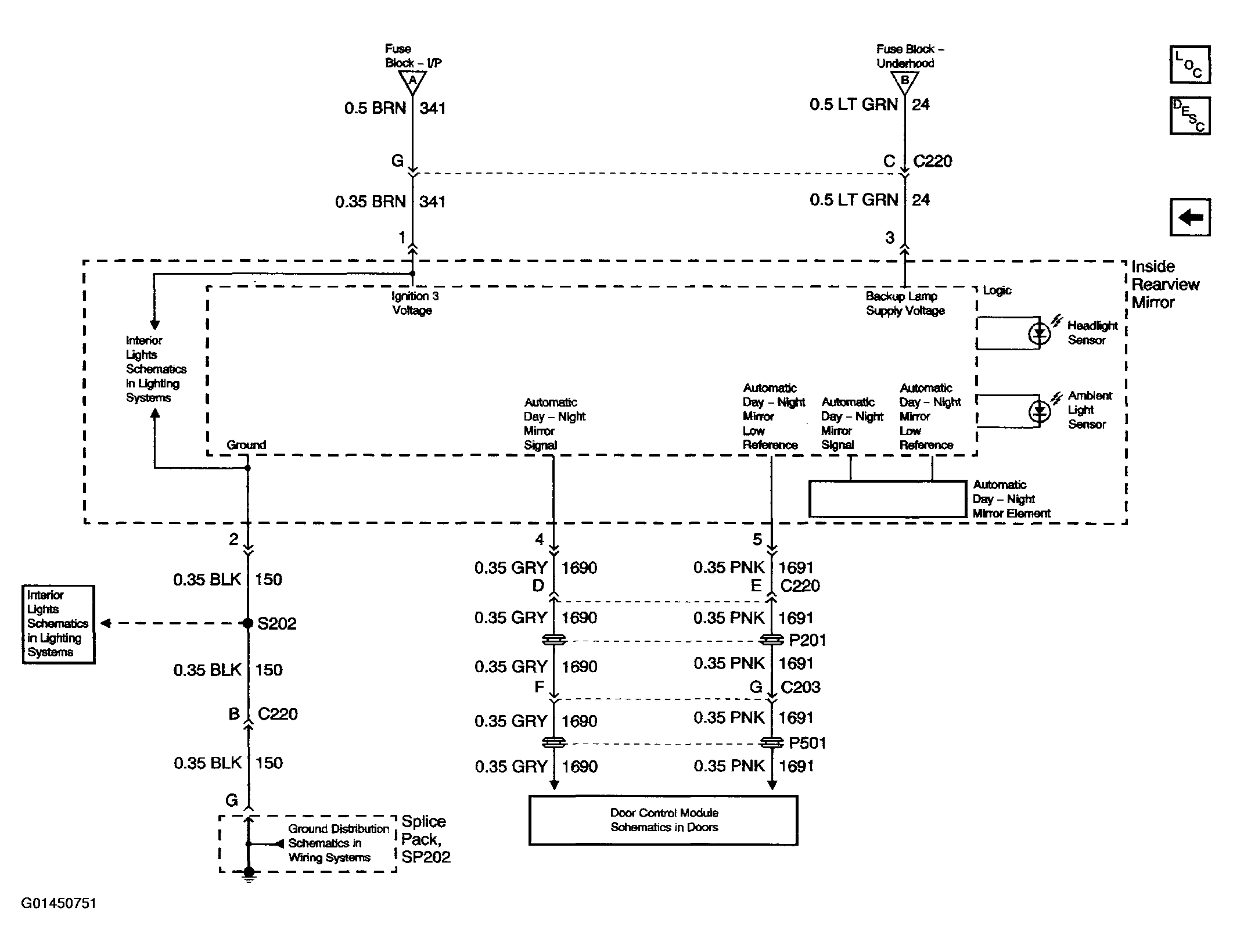

Fig 4: Inside Rearview Mirror Schematics Diagram (Headlight & Photo Sensors)

Courtesy of GENERAL MOTORS CORP.
