Scan Tool Data List

Fig 1: Scan Tool Data List (DIM)

G02088026

Courtesy of GENERAL MOTORS CORP.

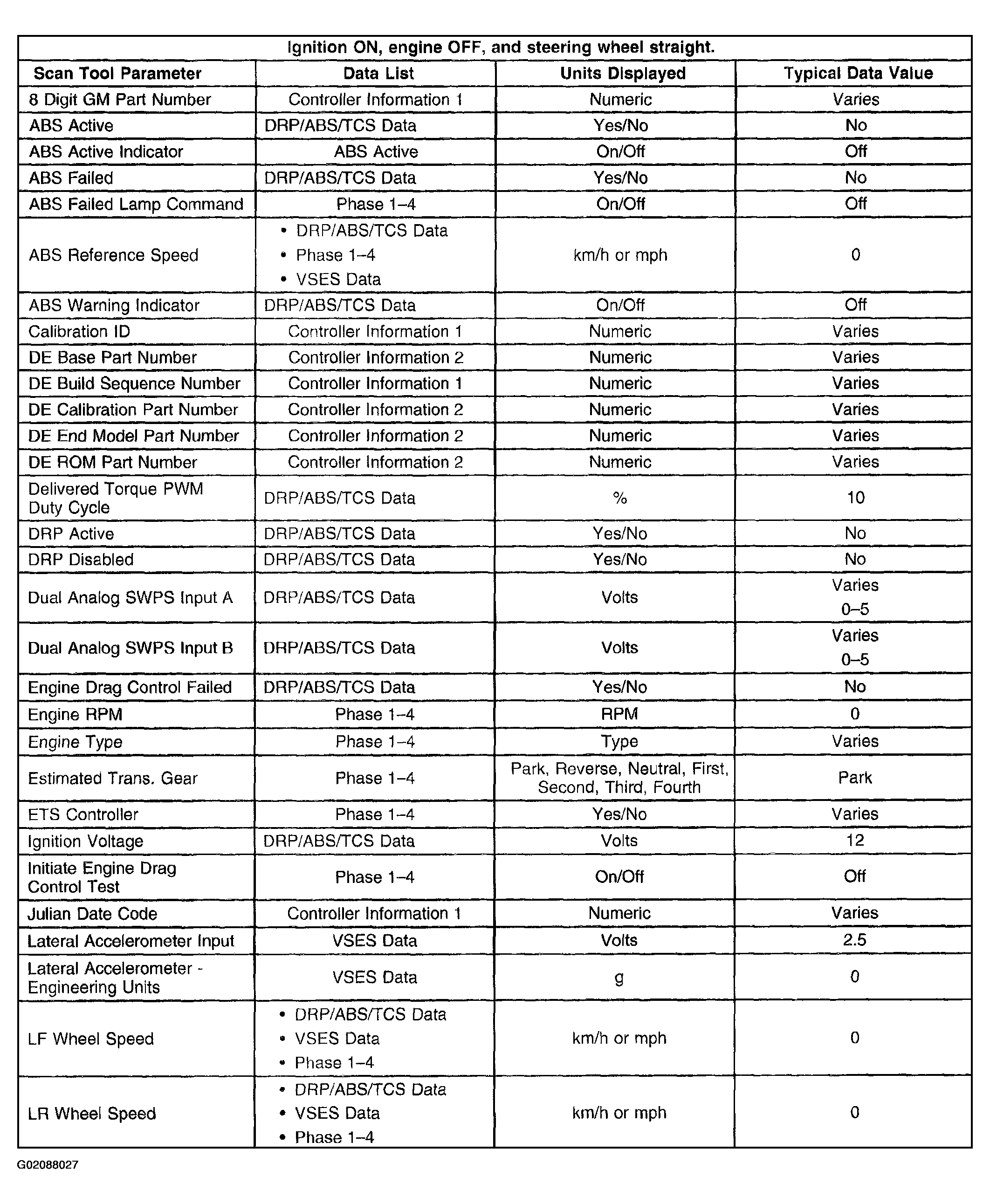

Fig 2: Scan Tool Data List (EBCM) (1 Of 3)

G02088027

Courtesy of GENERAL MOTORS CORP.

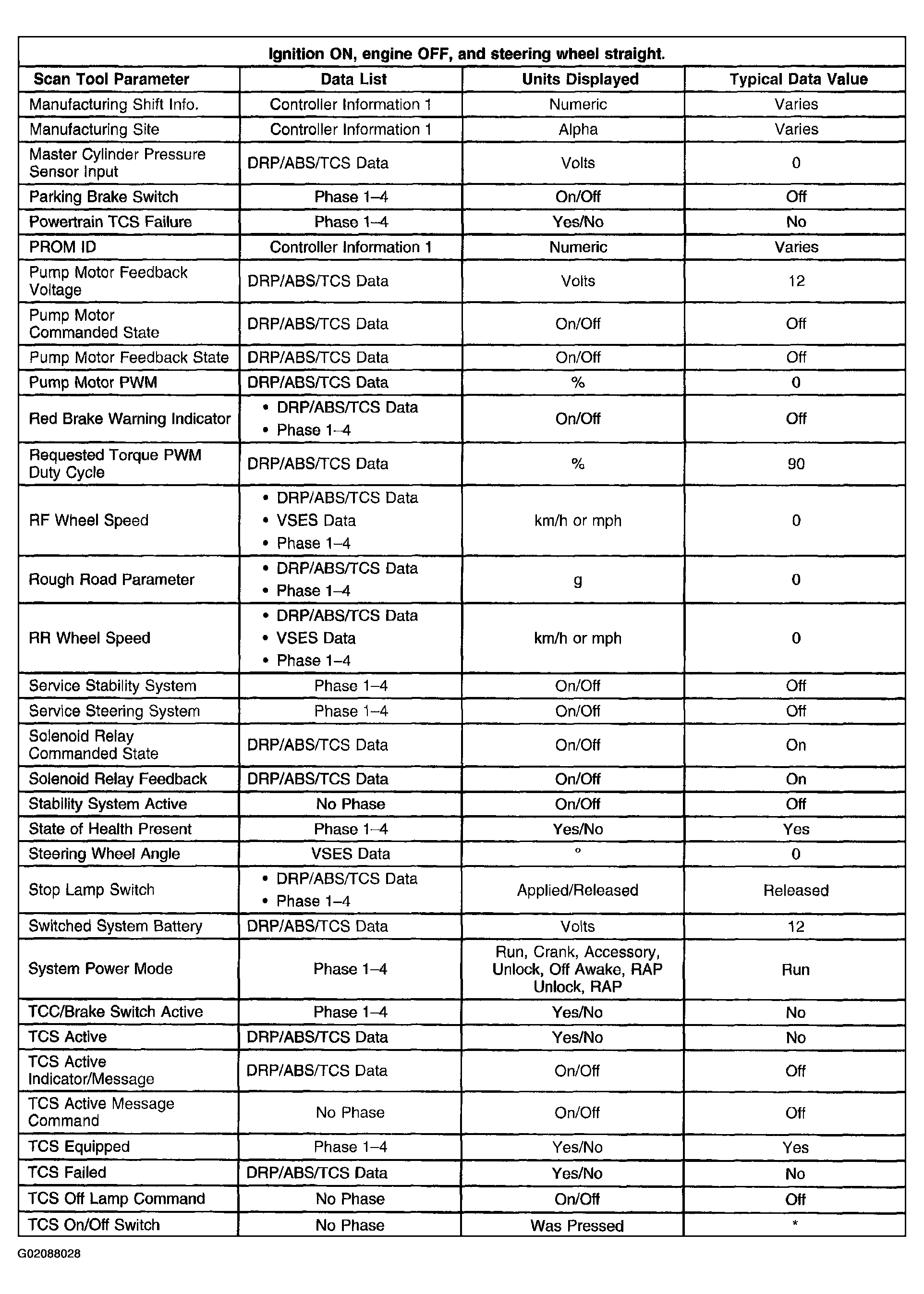

Fig 3: Scan Tool Data List (EBCM) (2 Of 3)

G02088028

Courtesy of GENERAL MOTORS CORP.

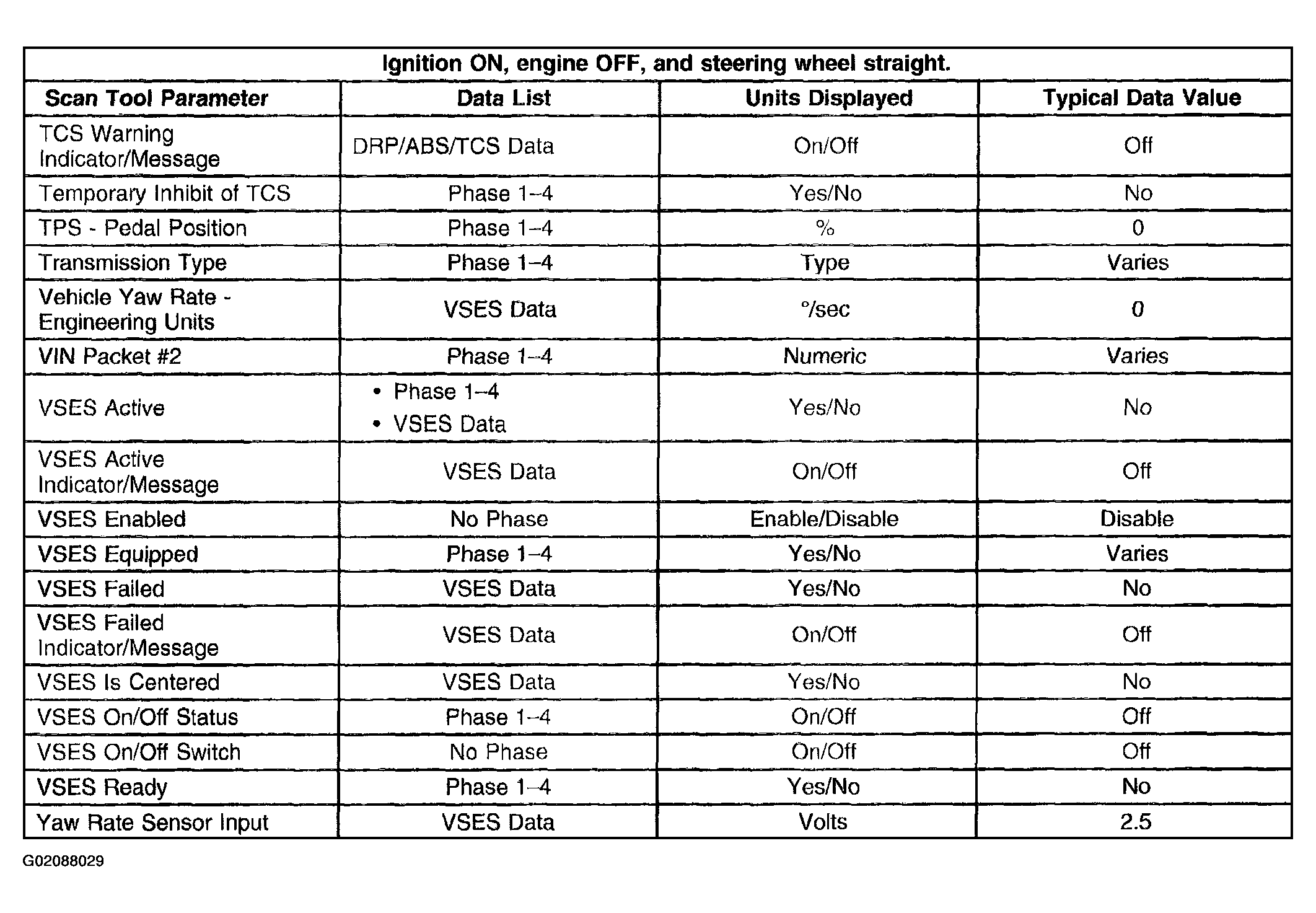

Fig 4: Scan Tool Data List (EBCM) (3 Of 3)

G02088029

Courtesy of GENERAL MOTORS CORP.

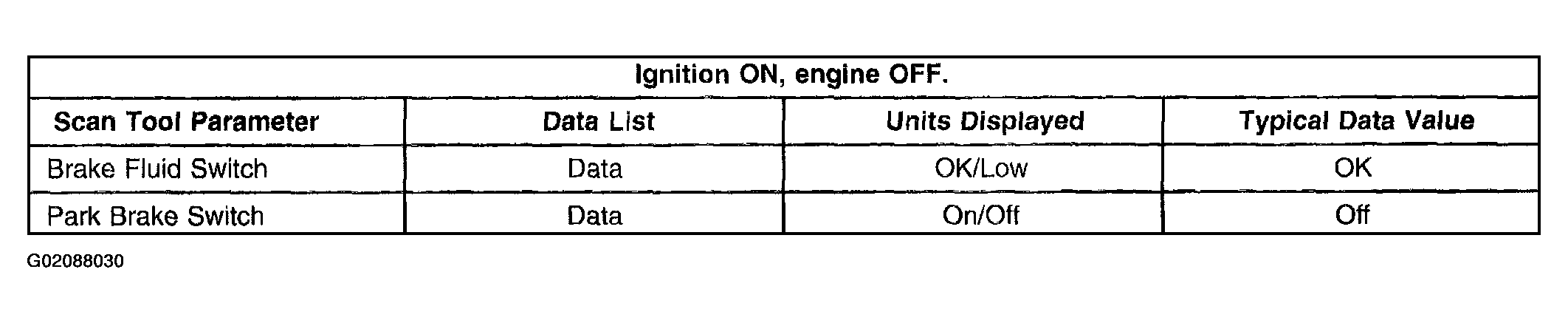

Fig 5: Scan Tool Data List (IPC)

G02088030

Courtesy of GENERAL MOTORS CORP.

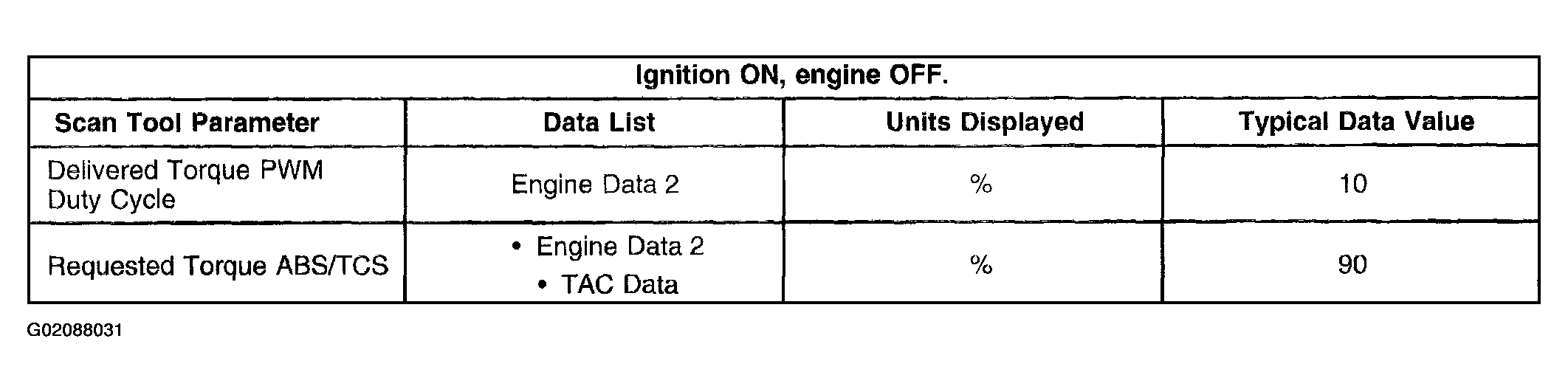

Fig 6: Scan Tool Data List (PCM)

G02088031

Courtesy of GENERAL MOTORS CORP.

Fig 7: Scan Tool Data List (RIM)

G02088032

Courtesy of GENERAL MOTORS CORP.
