Cadillac
>>
1985
>>
Cimarron 2.8 W, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
2.8L/5.0L/5.7L PFI Tests
>>
Testing
>>
Code 35, Idle Air Control (2.8L)
Code 35, Idle Air Control (2.8L)

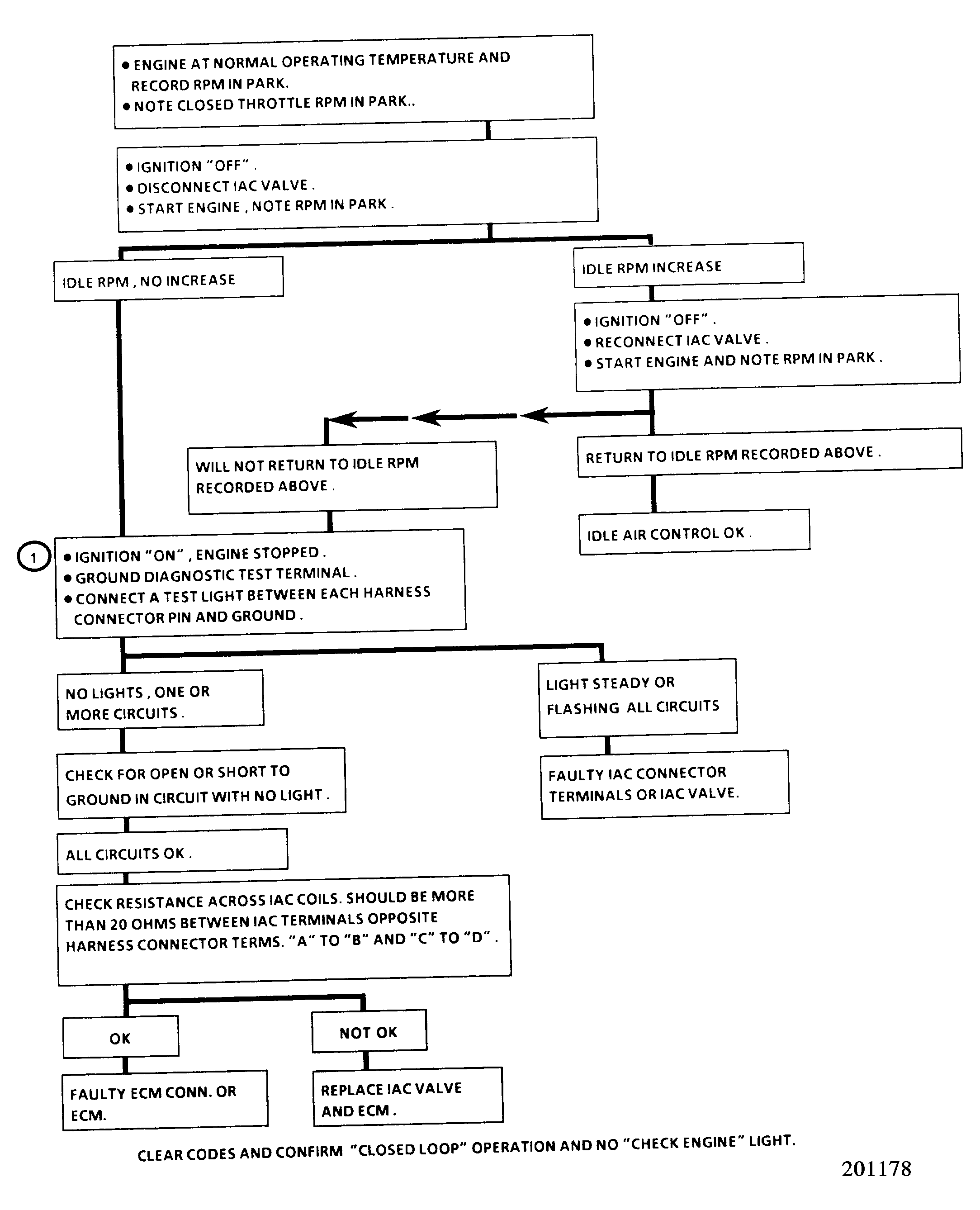

Fig 1: Code 35, Idle Air Control (2.8L)

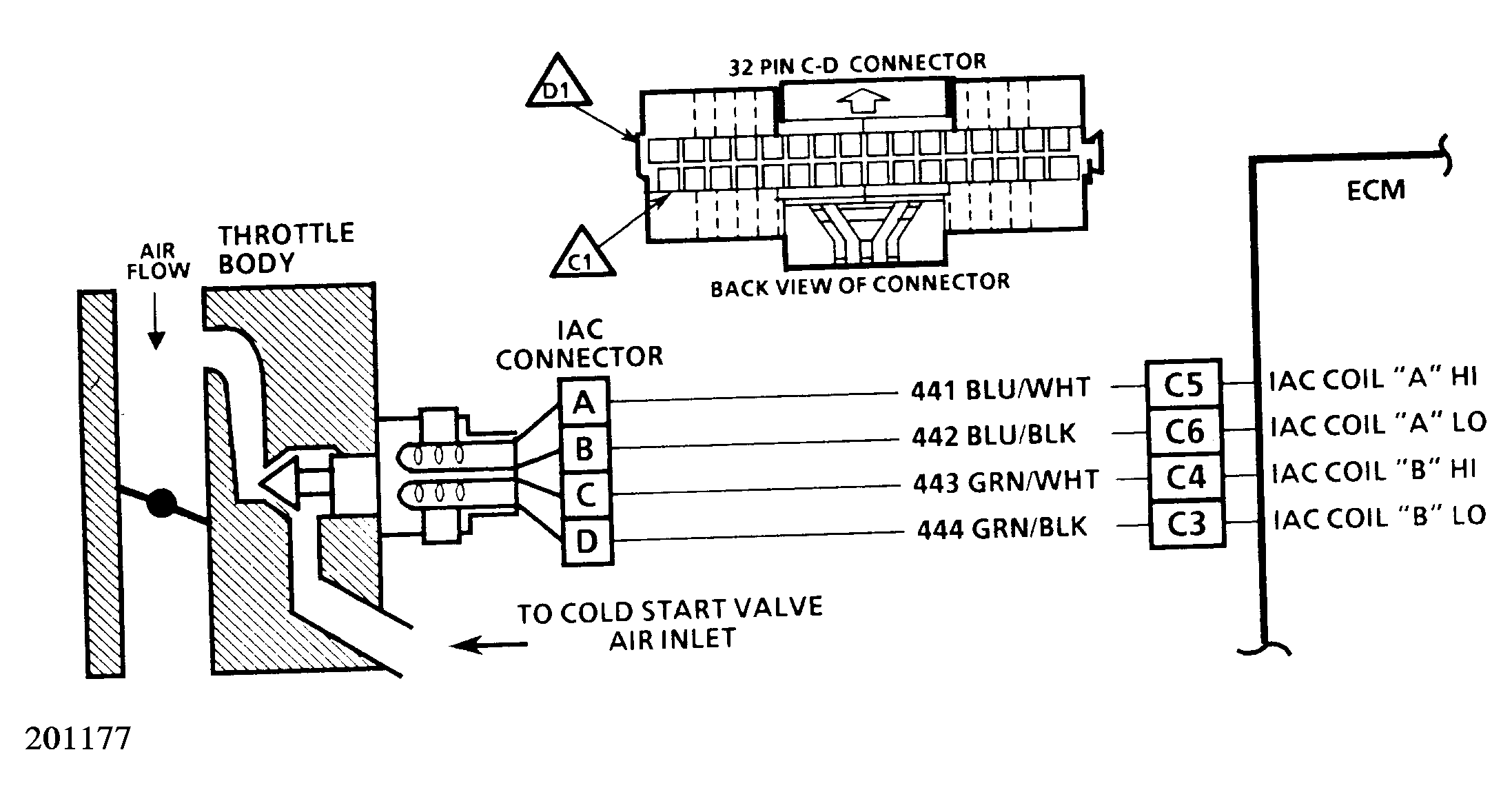

Fig 2: Code 35 Schematic, Idle Air Control (2.8L)
