Installation Procedure

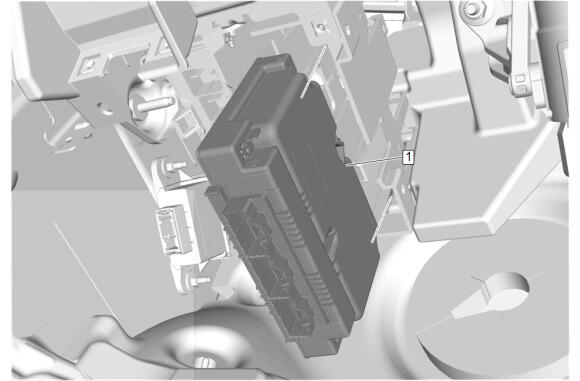

  1. GM6379464Courtesy of GENERAL MOTORS COMPANY

    Serial Data Gateway Module (1) - Install

  2. Secure the retaining tab.
  3. Connect the electrical connectors.
  4. Instrument Panel Lower Trim Panel Insulator - Left Side - Install - Instrument Panel Lower Trim Panel Insulator Replacement - Left Side
