Radio Control Assembly Replacement

WARNING: This page is about a different car, the 2021 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

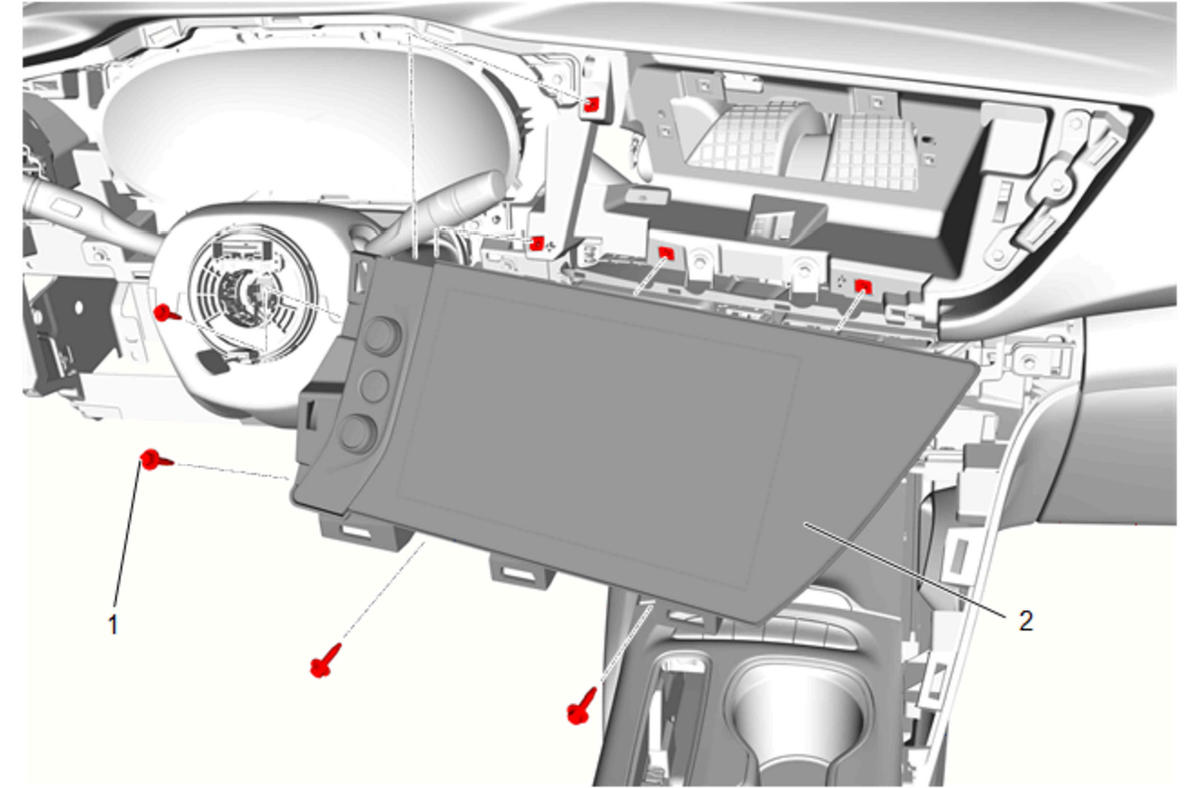

Callout	Component Name
Preliminary Procedures Instrument Panel Center Trim Plate Applique Replacement Instrument Panel Cluster Trim Plate Replacement
1	Radio Control Bolt [4x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Radio Control Procedure Disconnect the electrical connectors. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedures

Instrument Panel Center Trim Plate Applique Replacement
Instrument Panel Cluster Trim Plate Replacement

Radio Control Bolt [4x]

CAUTION:

Fastener Caution

Tighten
2.5 N.m (22 lb in)

Radio Control

Procedure

Disconnect the electrical connectors.
Perform the necessary programming and setup procedure: Control Module References
