Air Cleaner Bracket Replacement

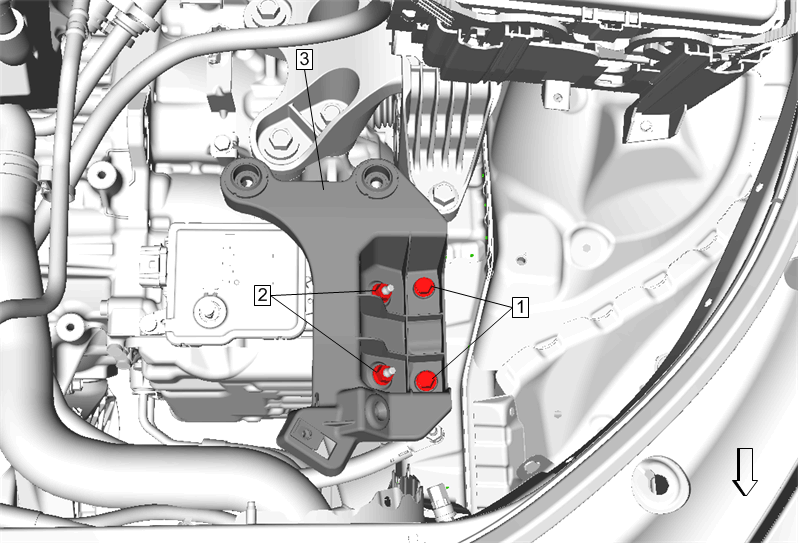

Fig 1: Air Cleaner Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Air Cleaner Assembly Replacement Intake Air Duct Replacement
1	Air Cleaner Bracket Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Air Cleaner Bracket Nut [2x] Tighten 22 N.m (16 lb ft)
3	Air Cleaner Bracket
