Installation Procedure

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear brake shield (1).

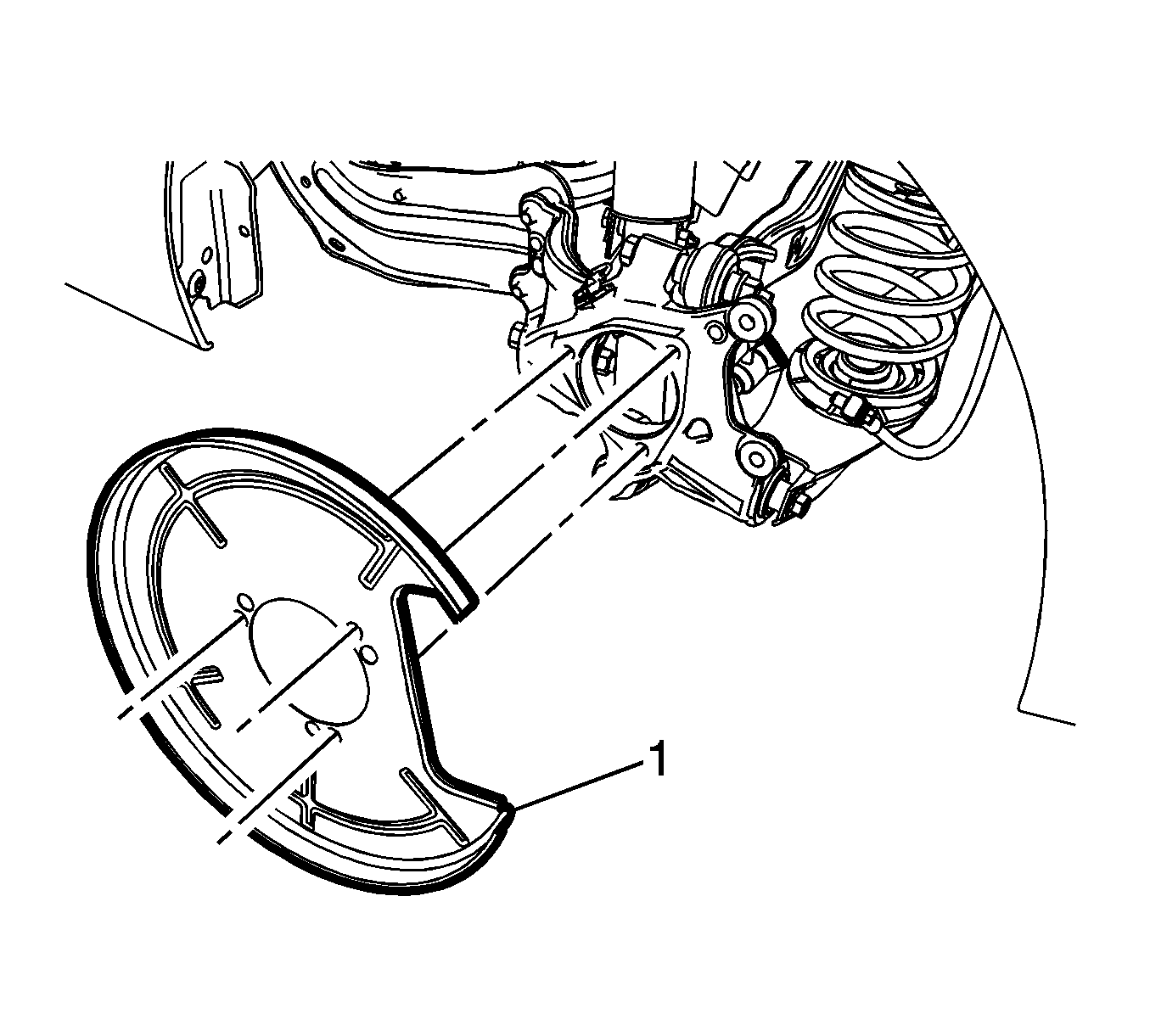

    Fig 1: Rear Brake Shield
    GM2555456Courtesy of GENERAL MOTORS COMPANY
  2. Install the rear wheel bearing and hub assembly (1). Refer to Rear Wheel Bearing and Hub Replacement .

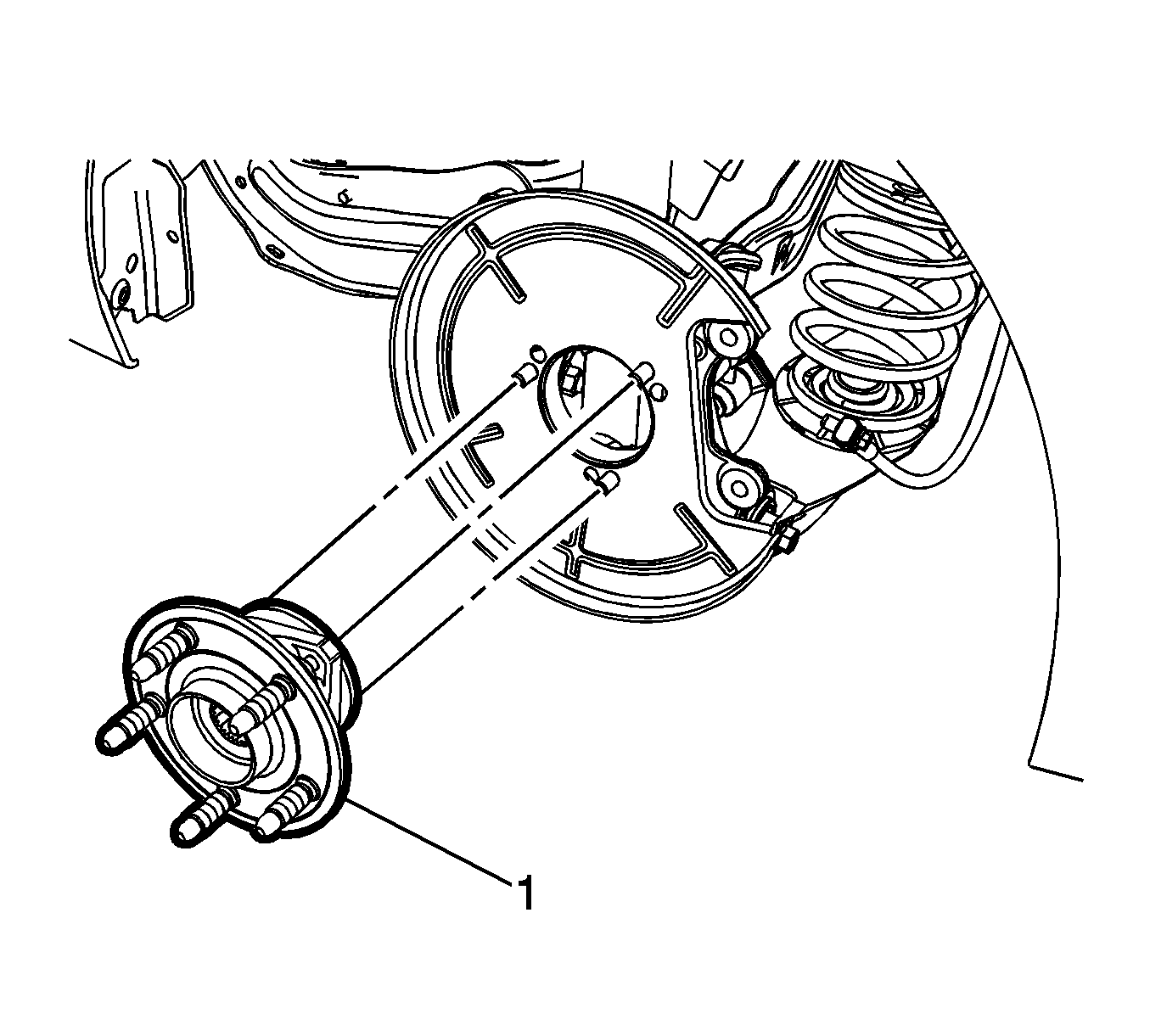

    Fig 2: Rear Wheel Bearing And Hub Assembly
    GM2555454Courtesy of GENERAL MOTORS COMPANY
  3. Install the wheel and tire assembly. Refer to Tire and Wheel Removal and Installation .
