Rear Parking Assist (UD7) Wiring Schematics

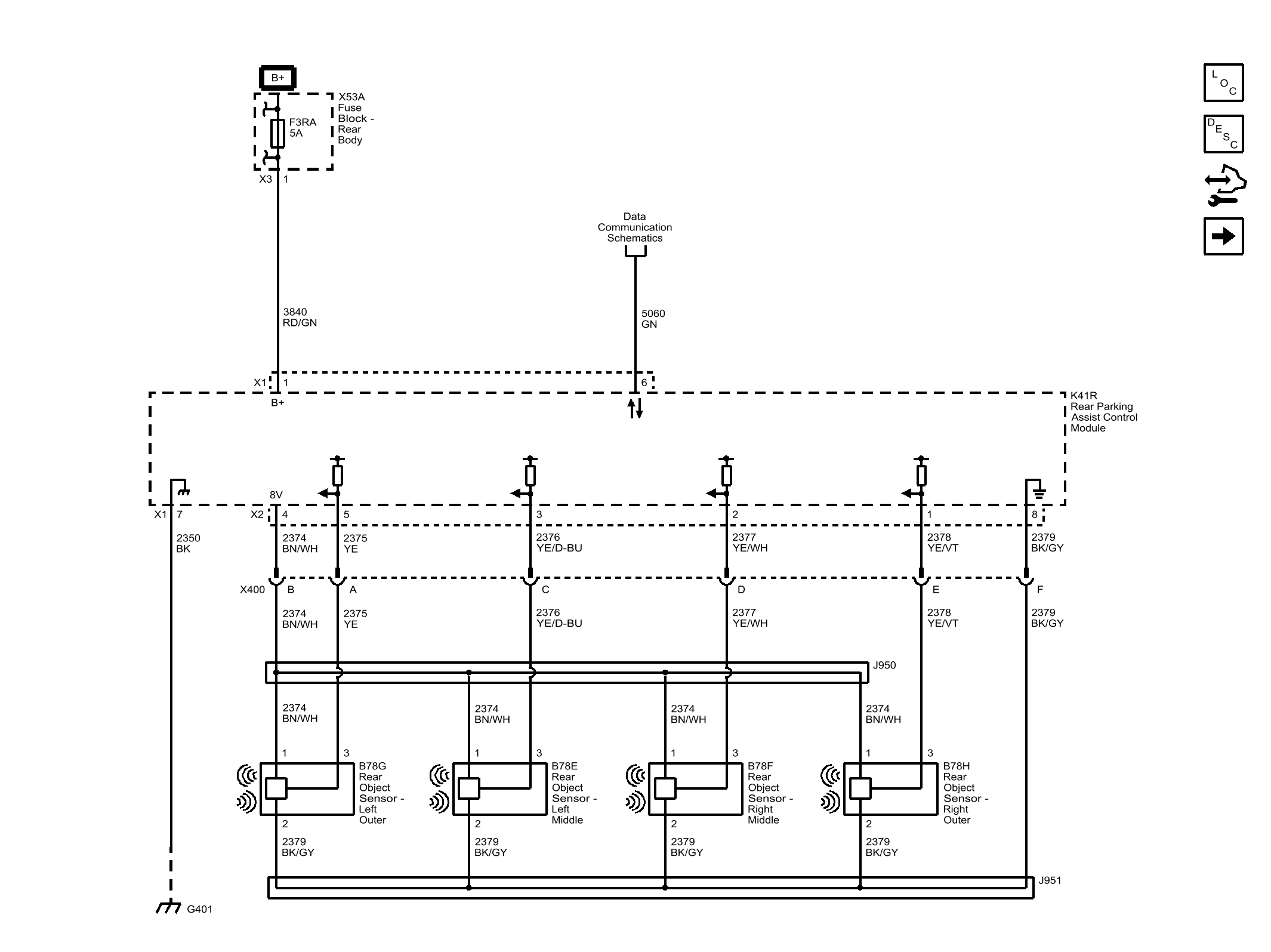

Fig 1: Rear Parking Assist (UD7) Wiring Schematic

GM3337003

Courtesy of GENERAL MOTORS COMPANY
