Install service cap in trunk

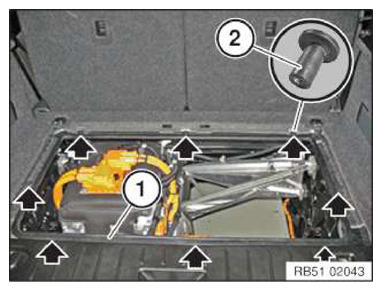

- Check the seal (1) and neoprene nuts (2) (arrows) for damage and replace as needed.

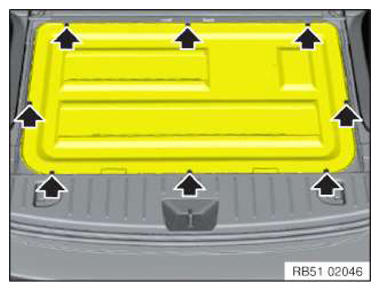

- Install service cap.
NOTE:
TECHNICAL INFORMATION
The tightening torque must be observed for neoprene nuts, as otherwise the neoprene nuts will be damaged. Replace damaged neoprene nuts.
Damaged neoprene nuts can lead to rattling noise from the service cap.
The tightening torque must be observed for neoprene nuts, as otherwise the neoprene nuts will be damaged. Replace damaged neoprene nuts.
Damaged neoprene nuts can lead to rattling noise from the service cap.
- Tighten the neoprene nuts (arrows).
TIGHTENING TORQUES SPECIFICATIONS
| Service cap in trunk | ||
|---|---|---|
| Neoprene nut | Tightening torque | 1 Nm |
