Remove Eccentric Shaft

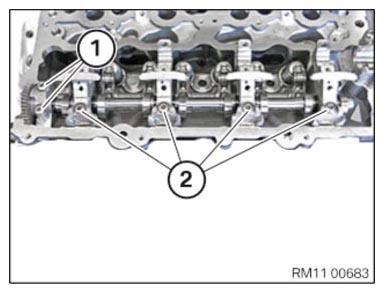

Release screws (1) and set down the bearing cap neatly in special tool 0 495 105 (11 4 480).
Release screws (2) and set down the bearing bracket neatly in special tool 0 495 105 (11 4 480).
For an engine that has been in use, make sure all bearing brackets are reinstalled in the same position.

Courtesy of BMW OF NORTH AMERICA, INC.

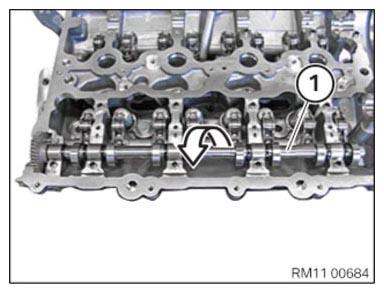

Remove the eccentric shaft (1) in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.
