Removing and installing/replacing gear selector switch (2016-2022)

Attention!

Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary work:

• Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT .
• Remove the CENTER CONSOLE TRIM .

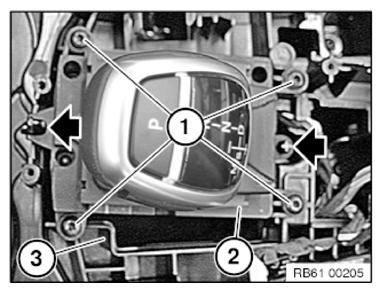

Release screws (1).

Tightening torque 61 31 1AZ .

Installation note:

Insert gear selector switch (2) correctly in front and rear fixation of center console support (3).

Courtesy of BMW OF NORTH AMERICA, INC.

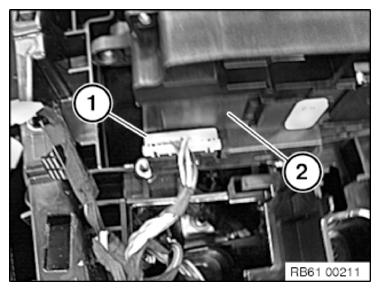

Lift gear selector switch (2) and unlock plug connection (1) at gear selector switch (2) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
