61 42 010 Removing and installing (replacing) battery charging module (complete with holder)
Necessary preliminary tasks:
- Partially remove LUGGAGE COMPARTMENT WHEEL ARCH PANEL ON RIGHT
- Remove flap in right luggage compartment trim panel, only with F11.

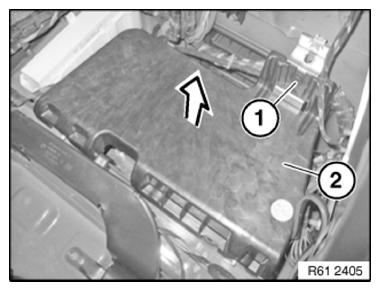

Release clamps (1).
Remove cover (2) in direction of arrow.

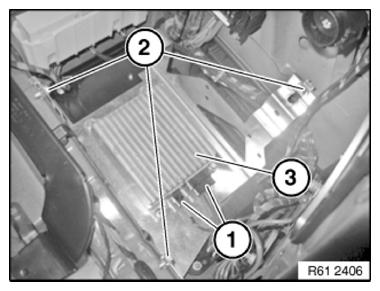

Unlock plug connections (1) and disconnect.
Unfasten screws (2).
Remove holder with battery module (3).
Installation note:
Make sure holder with battery module (3) is correctly seated.
Replacement:

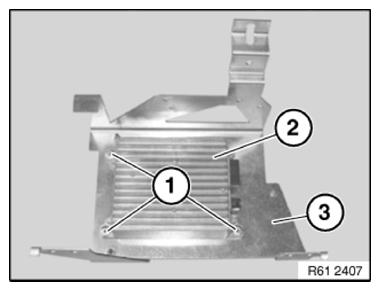

Release rivets (1) and remove battery module (2) from holder (3).
Installation note:
The rivets (1) must be renewed.
