61 35 950 Removing and installing (replacing) control unit for comfort access system

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks:

Disconnect plug connection (1).

Remove control unit for comfort access system (2) in direction of arrow out of device mount (3).

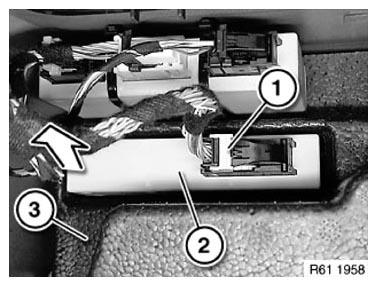

Fig 1: Removing Comfort Access System Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
