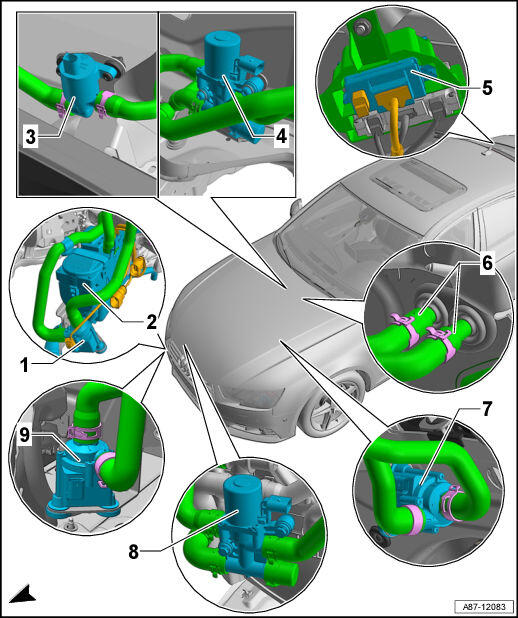

Engine Comp.
- 1 -
Recirculation pump -V55-
- Only with parking heater
- 3 -
Coolant shut-off valve -N82-
- Currently only installed on specific vehicles with a 4-cylinder engine
- 4 -
Heater coolant shut-off valve -N279-
- Component location on vehicles with parking heater and 4-cylinder engine
- For 6 cylinder engines -8- Heater coolant shut-off valve -N279-
- 5 - Parking heater radio receiver -R64-
- 7 -
Coolant recirculation pump -V50-
- Component location on vehicles with 4-cylinder engine
- For 6 cylinder engines -9- Coolant recirculation pump -V50-
- 8 -
Heater coolant shut-off valve -N279-
- Only with parking heater and 6 cylinder vehicles
- 9 -
Coolant recirculation pump -V50-
- Only for 6 cylinder engines
