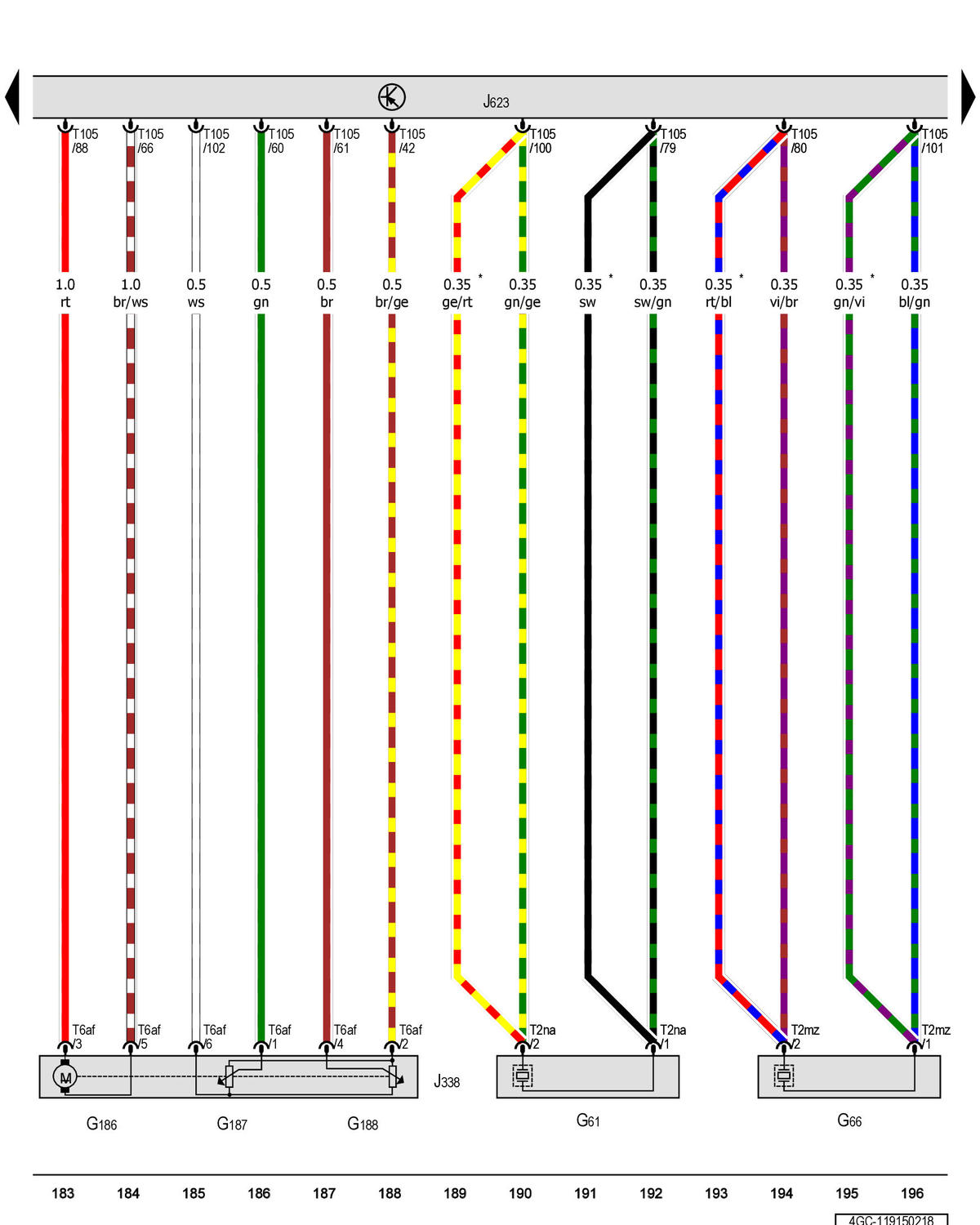

Knock Sensor 1, Knock Sensor 2, Throttle Valve Control Module, Engine/Motor Control Module: Notes

GWW4GC-119150218

Courtesy of AUDI OF AMERICA, LLC
