Power Sunroof Control Module Connector End View (J245, T10b, V1)

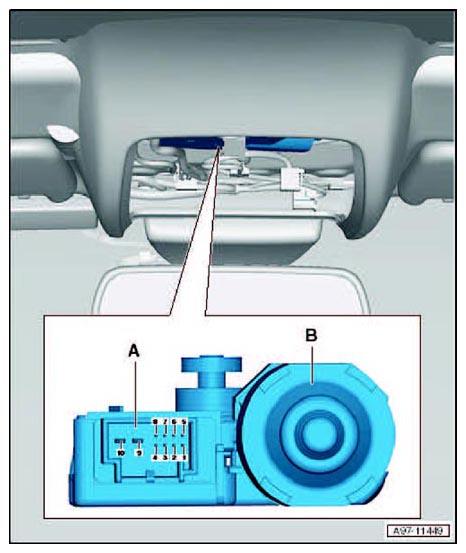

Fig 1: Power Sunroof Control Module Connector End View (J245, T10b, V1)
G10360070Courtesy of AUDI OF AMERICA, LLC
A 10-Pin Connector -T10b-, black
B Power Sunroof Control Module -J245-

  • with Sunroof Motor -V1-
