Front Treble Speaker -R20- / -V344- / -R22- / -V345-, Removing And Installing, Bang & OLUFSEN®: Removing

-- Remove the side speaker trim, refer to Instrument Cluster Trim, Removing and Installing .

-- Remove the bolts -1- on the Left Front Treble Speaker -R20- -2- and then remove the Left Front Treble Speaker -R20- -2- upward and away from the centering pins -3-.

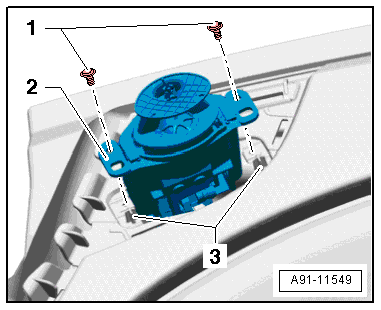

Fig 1: Identifying Bolts -1- On Left Front Treble Speaker -R20- -2-

Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connectors from the Left Front Treble Speaker -R20- -2-.
