Circuit Diagram
>>

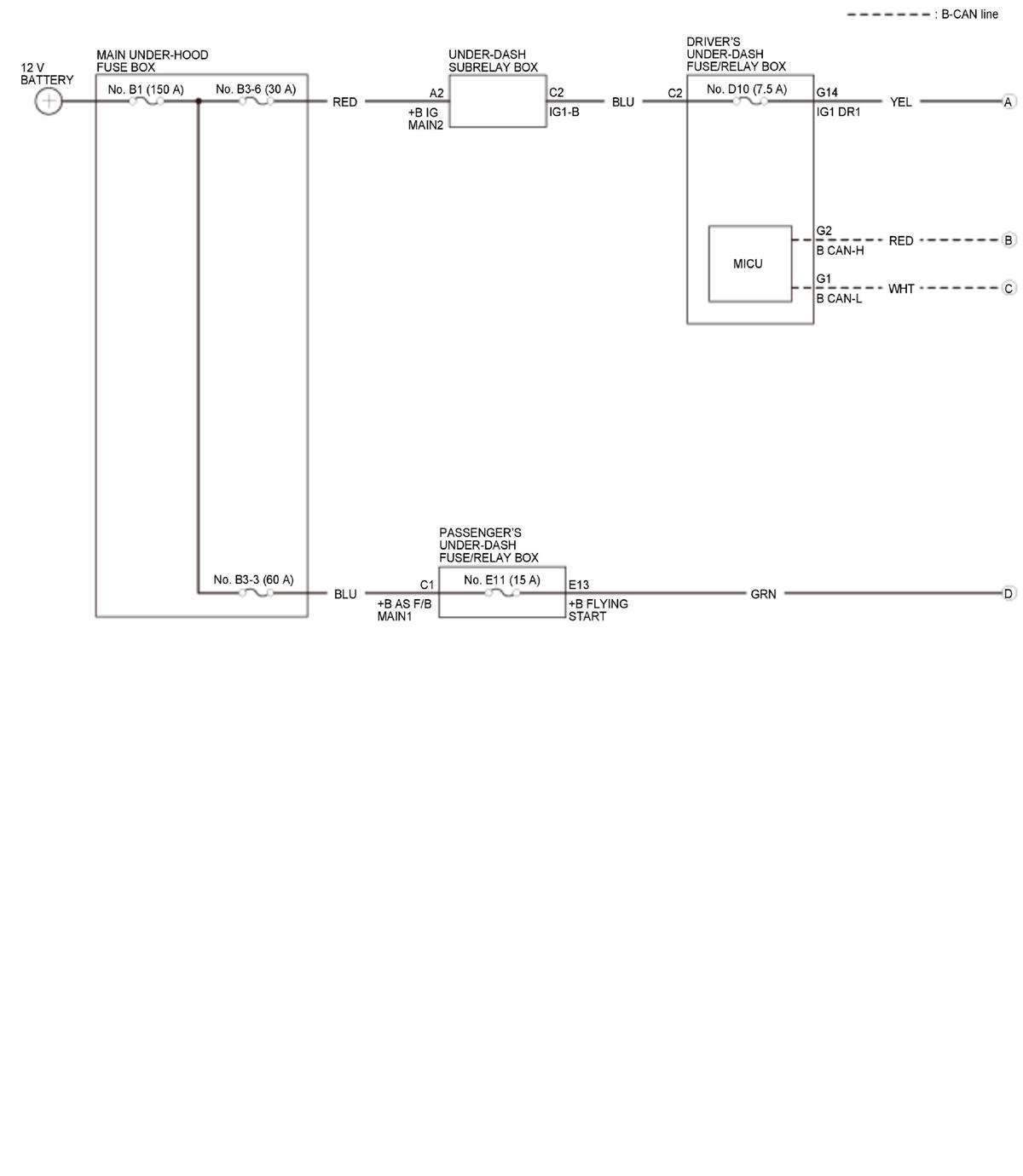

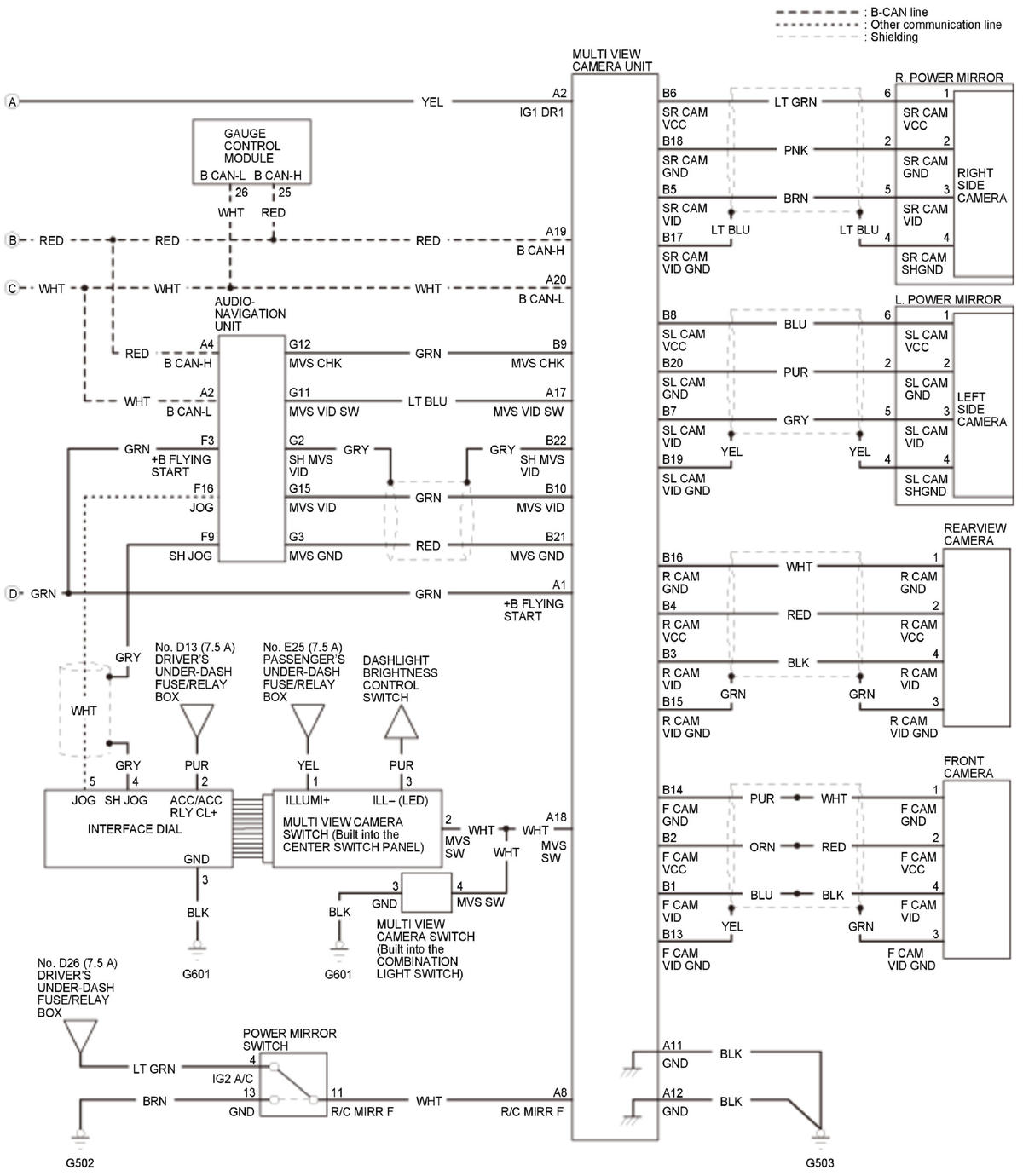

Multi View Camera System (MVCS) Circuit Diagram
Multi View Camera System (MVCS) Circuit Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
