Final Driven Gear/Carrier Replacement

  1. Remove the final driven gear from the differential carrier.
    NOTE: The final driven gear bolts have left-hand threads.

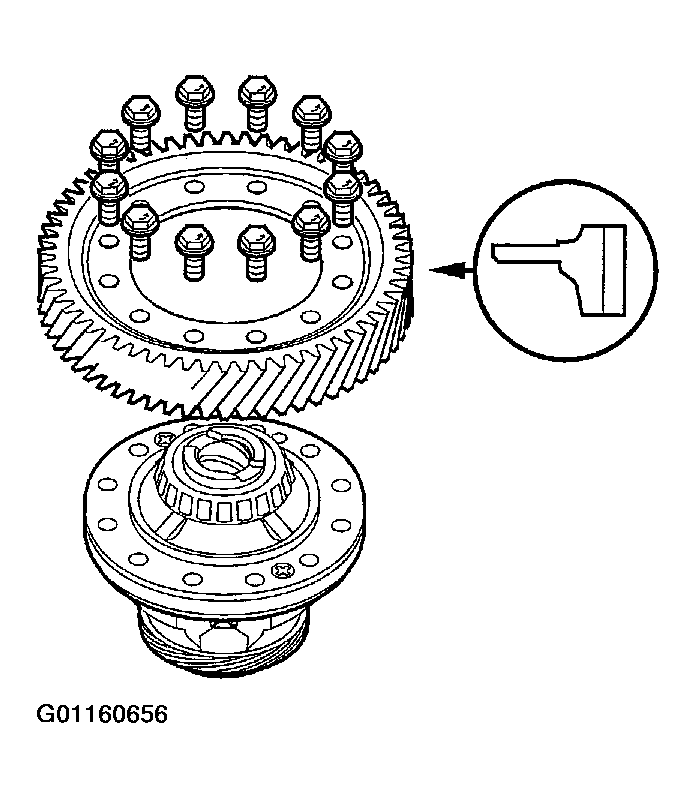

    Fig 1: Removing Final Driven Gear From Differential Carrier
    G01160656Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the final driven gear with the chamfered side on the inner bore facing the differential carrier.
  3. Tighten the bolts to the specified torque in a crisscross pattern.

    TORQUE: 101 N.m (10.3 kgf.m, 74.5 Ft.Lbs.)
