VTEC Oil Pressure Switch

  1. Disconnect the VTEC oil pressure switch connector, then remove the VTEC oil pressure switch (A). See Fig 1.
  2. Install the VTEC oil pressure switch using a new "O" ring (B).

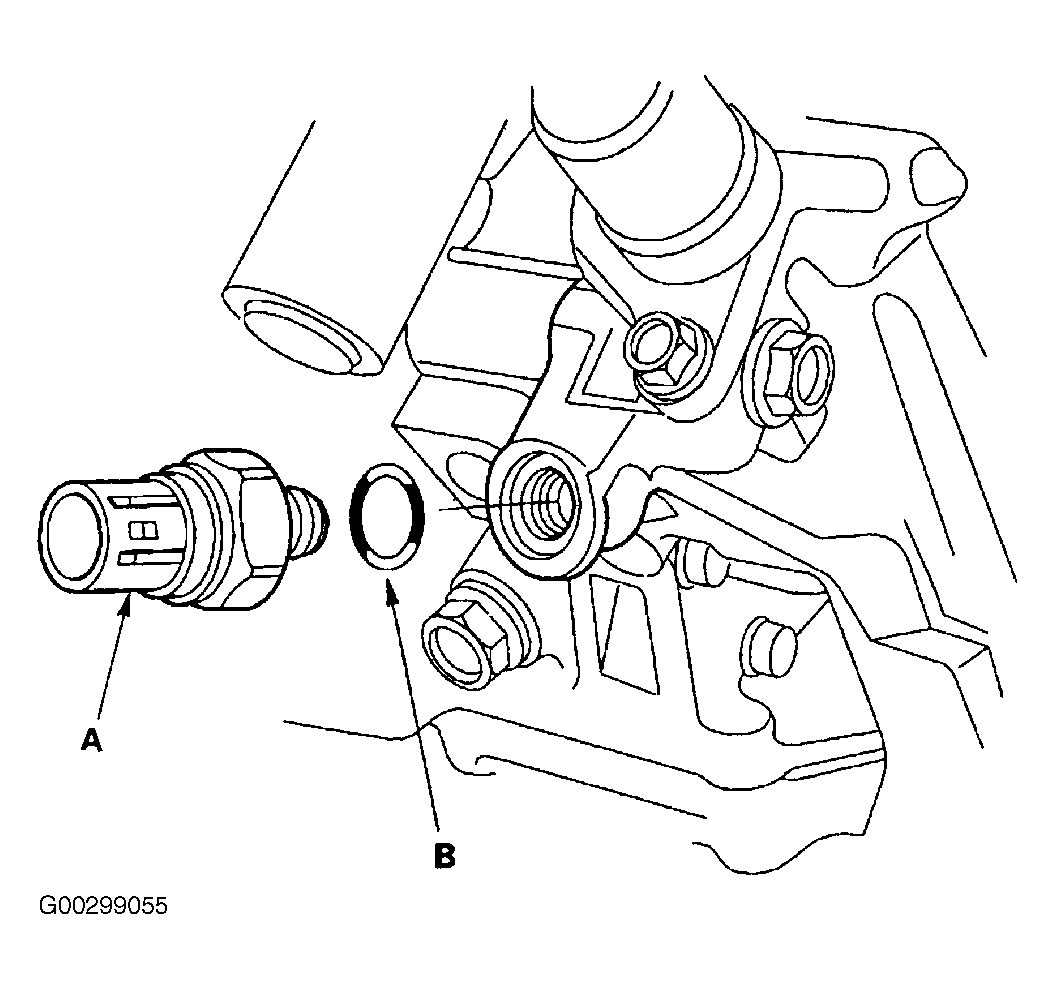

Fig 1: Disconnecting VTEC Oil Pressure Switch Connector
G00299055Courtesy of AMERICAN HONDA MOTOR CO., INC.
