Rocker Arm Assembly: Removal

Remove the cylinder head cover. See Fig 1.
Loosen adjusting screws (A). See Fig 2.
Remove the bolts and the rocker arm assembly. See Fig 3 and use the following procedure;
1. Unscrew the rocker shaft mounting bolts 2 turns at a time, in a crisscross pattern, to prevent damaging the valves or rocker arm assembly.
2. When removing the rocker arm assembly, DO NOT remove the rocker shaft mounting bolts. The bolts will keep the springs and the rocker arms on the shafts.

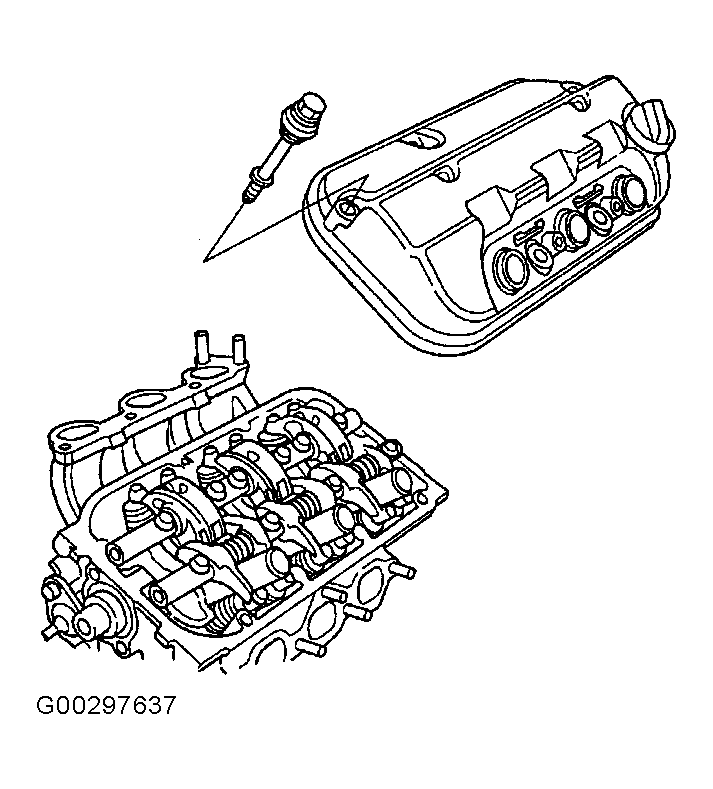

Fig 1: Removing Cylinder Head Cover

Courtesy of AMERICAN HONDA MOTOR CO., INC.

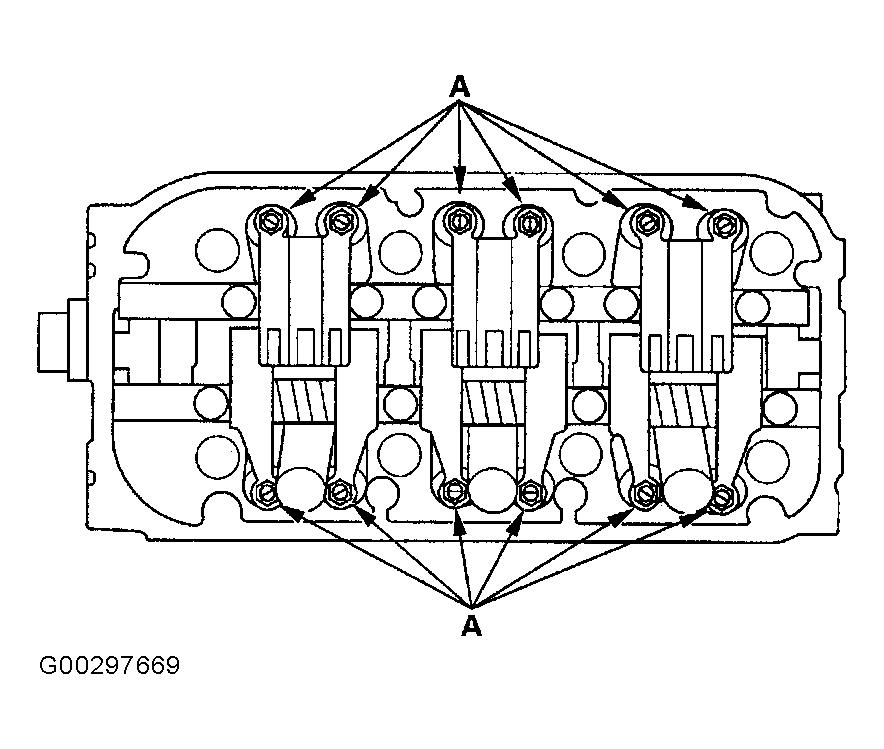

Fig 2: Loosening Adjusting Screws

Courtesy of AMERICAN HONDA MOTOR CO., INC.

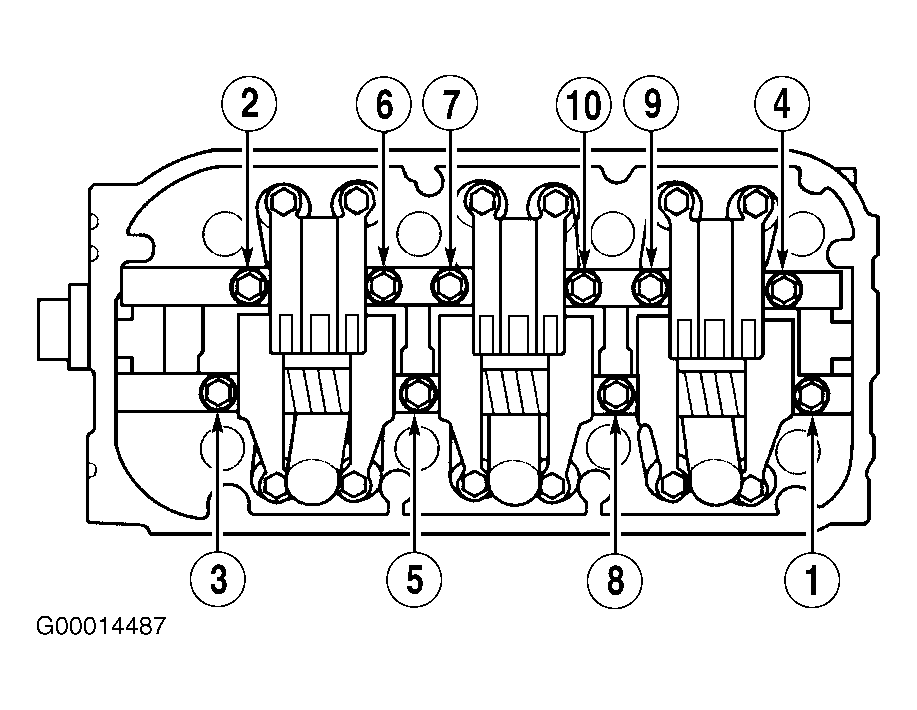

Fig 3: Camshaft Holder Bolt Loosening Sequence

Courtesy of AMERICAN HONDA MOTOR CO., INC.
