Home >> Acura >> 2003 >> 3.2CL Base >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> 3.2L V6 Engine >> Overhaul >> Knock Sensor >> Removal & Installation

Removal & Installation

  1. Remove the cylinder heads. See CYLINDER HEAD .
  2. Disconnect the knock sensor connector, then remove the knock sensor. See Fig 1.
  3. Install the knock sensor.
  4. Install the cylinder heads. See CYLINDER HEAD .

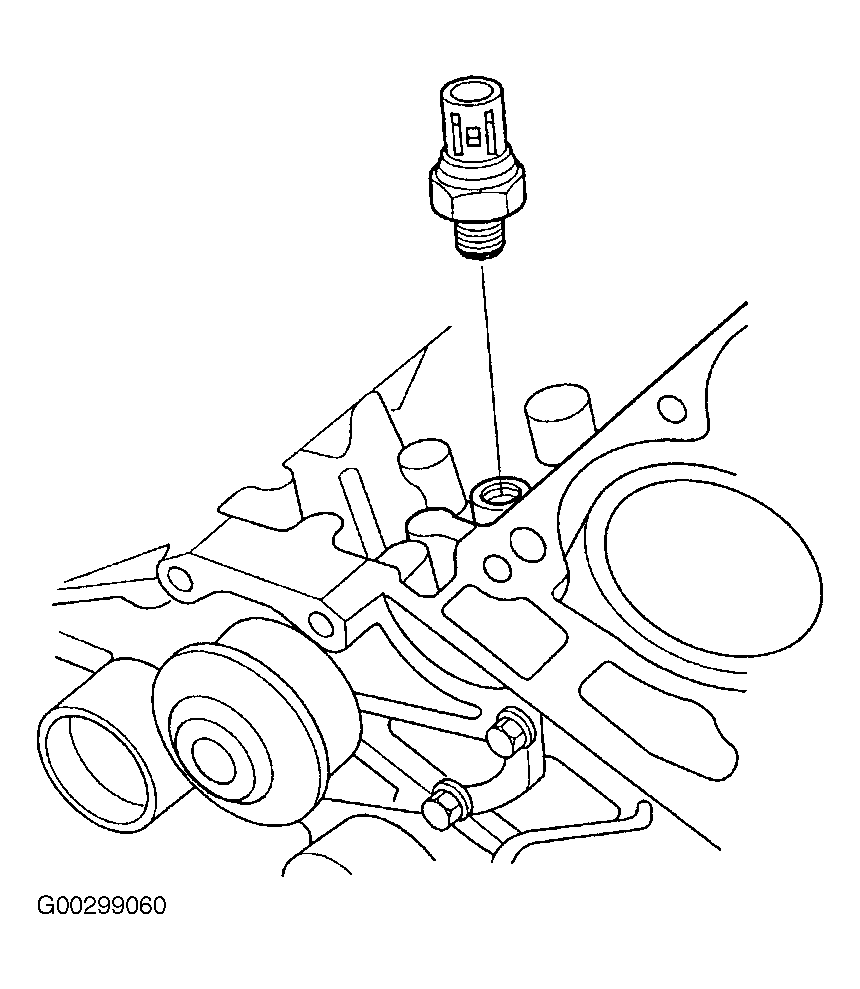

Fig 1: Removing Knock Sensor
G00299060Courtesy of AMERICAN HONDA MOTOR CO., INC.
