Pressure Test

WARNING: This page is about a different car, the 2003 Acura 3.2CL and 2002 Acura 3.2CL. However, it is still accessible from the selected car via links, so may be relevant.

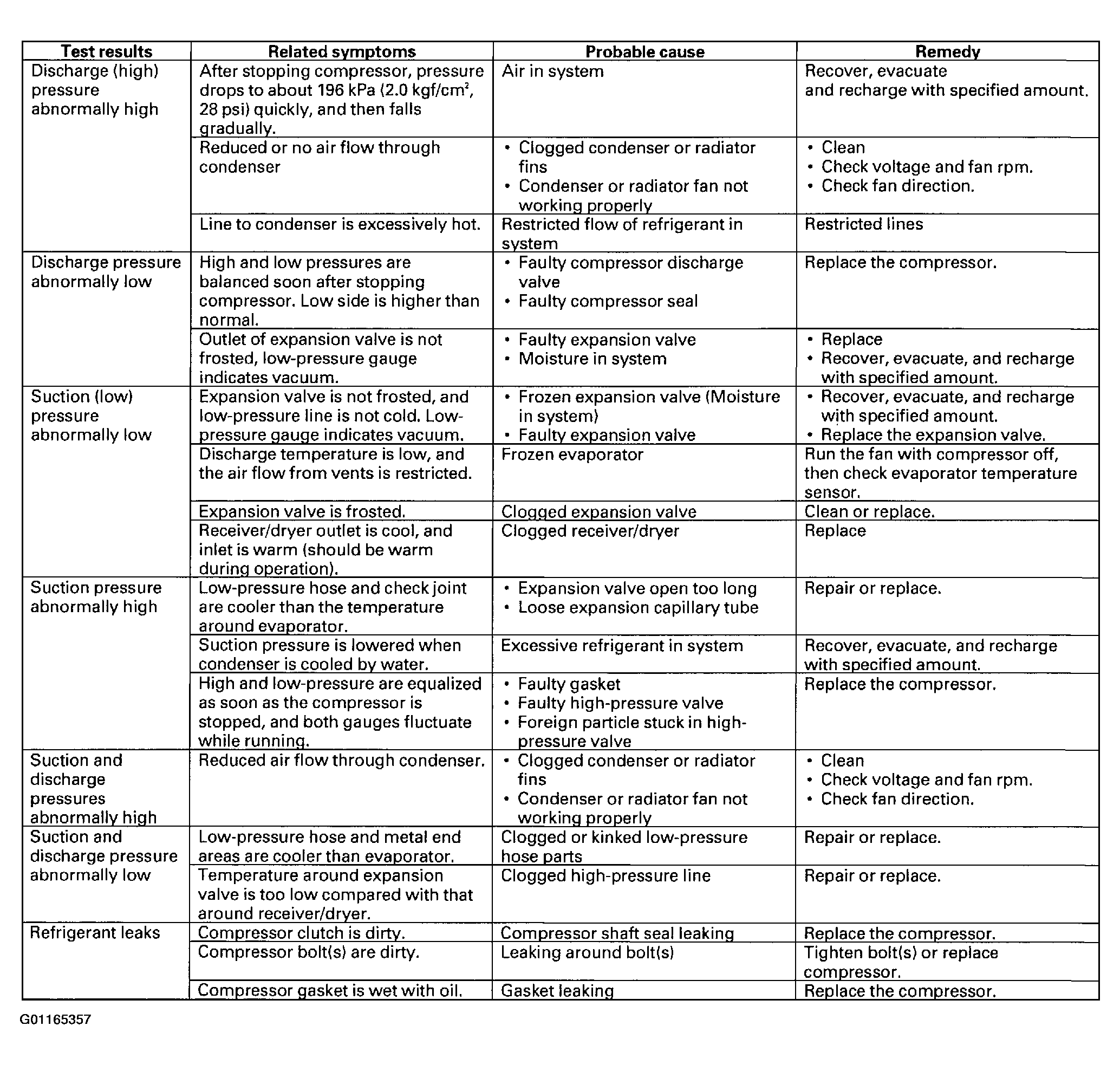

Fig 1: Pressure Test Chart
G01165357Courtesy of AMERICAN HONDA MOTOR CO., INC.
